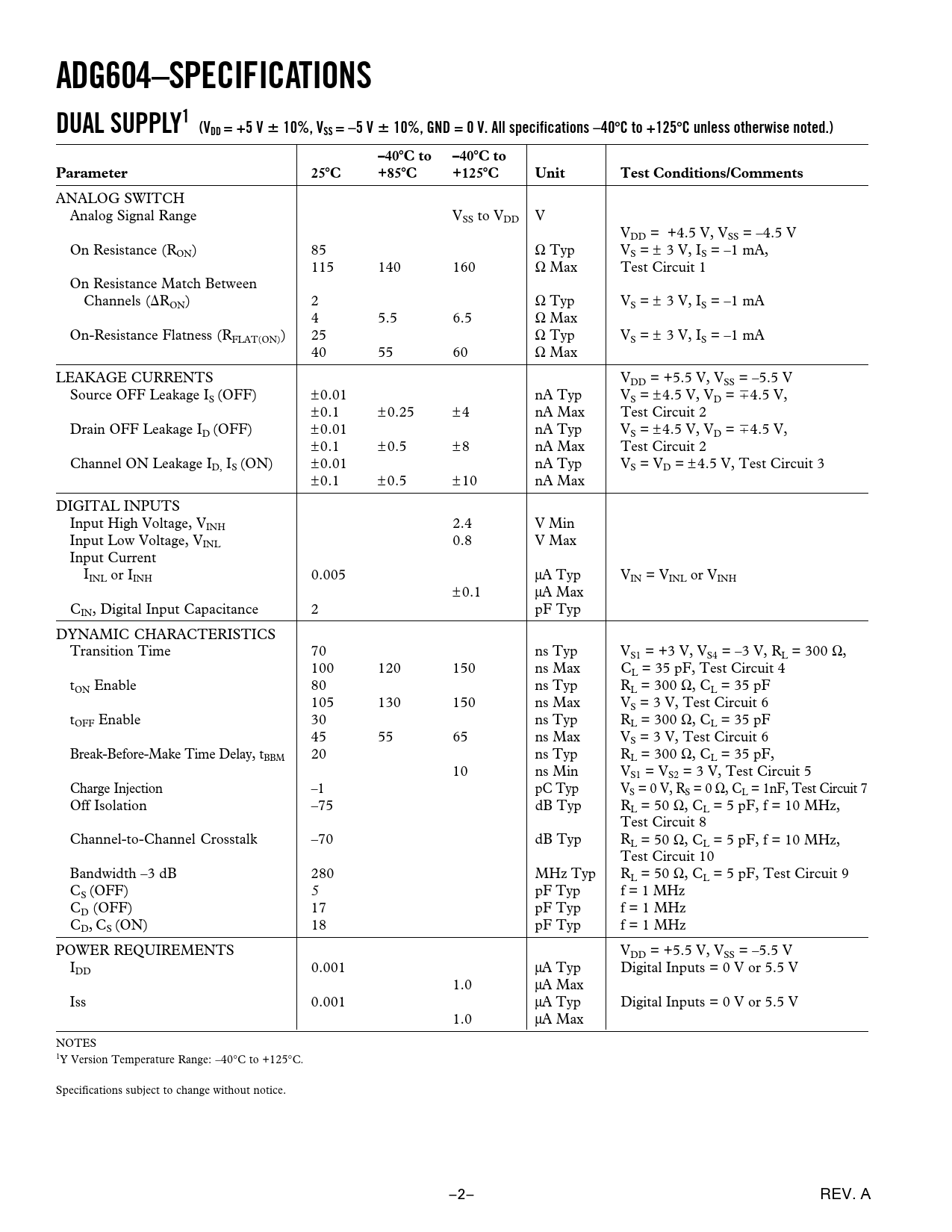

ADG604–SPECIFICATIONS. DUAL SUPPLY1 (VDD = +5 V. 10%, VSS = –5 V. 10%, GND = 0 V. All specifications –40. C to +125

ADG604–SPECIFICATIONS DUAL SUPPLY1 (VDD = +5 V 10%, VSS = –5 V 10%, GND = 0 V All specifications –40 C to +125

Línea de modelo para esta hoja de datos

Versión de texto del documento

ADG604–SPECIFICATIONS DUAL SUPPLY1 (VDD = +5 V 10%, VSS = –5 V 10%, GND = 0 V. All specifications –40 C to +125 C unless otherwise noted.) –40 C to –40 C to Parameter 25 C +85 C +125 C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V VDD = +4.5 V, VSS = –4.5 V On Resistance (RON) 85 Ω Typ VS = ± 3 V, IS = –1 mA, 115 140 160 Ω Max Test Circuit 1 On Resistance Match Between Channels (⌬RON) 2 Ω Typ VS = ± 3 V, IS = –1 mA 4 5.5 6.5 Ω Max On-Resistance Flatness (RFLAT(ON)) 25 Ω Typ VS = ± 3 V, IS = –1 mA 40 55 60 Ω Max LEAKAGE CURRENTS VDD = +5.5 V, VSS = –5.5 V Source OFF Leakage IS (OFF) ±0.01 nA Typ VS = ± 4.5 V, VD = ⫿4.5 V, ±0.1 ±0.25 ±4 nA Max Test Circuit 2 Drain OFF Leakage ID (OFF) ±0.01 nA Typ VS = ± 4.5 V, VD = ⫿4.5 V, ±0.1 ±0.5 ±8 nA Max Test Circuit 2 Channel ON Leakage ID, IS (ON) ±0.01 nA Typ VS = VD = ± 4.5 V, Test Circuit 3 ±0.1 ±0.5 ±10 nA Max DIGITAL INPUTS Input High Voltage, VINH 2.4 V Min Input Low Voltage, VINL 0.8 V Max Input Current IINL or IINH 0.005 µA Typ VIN = VINL or VINH ±0.1 µA Max CIN, Digital Input Capacitance 2 pF Typ DYNAMIC CHARACTERISTICS Transition Time 70 ns Typ VS1 = +3 V, VS4 = –3 V, RL = 300 Ω, 100 120 150 ns Max CL = 35 pF, Test Circuit 4 tON Enable 80 ns Typ RL = 300 Ω, CL = 35 pF 105 130 150 ns Max VS = 3 V, Test Circuit 6 tOFF Enable 30 ns Typ RL = 300 Ω, CL = 35 pF 45 55 65 ns Max VS = 3 V, Test Circuit 6 Break-Before-Make Time Delay, tBBM 20 ns Typ RL = 300 Ω, CL = 35 pF, 10 ns Min VS1 = VS2 = 3 V, Test Circuit 5 Charge Injection –1 pC Typ VS = 0 V, RS = 0 Ω, CL = 1nF, Test Circuit 7 Off Isolation –75 dB Typ RL = 50 Ω, CL = 5 pF, f = 10 MHz, Test Circuit 8 Channel-to-Channel Crosstalk –70 dB Typ RL = 50 Ω, CL = 5 pF, f = 10 MHz, Test Circuit 10 Bandwidth –3 dB 280 MHz Typ RL = 50 Ω, CL = 5 pF, Test Circuit 9 CS (OFF) 5 pF Typ f = 1 MHz CD (OFF) 17 pF Typ f = 1 MHz CD, CS (ON) 18 pF Typ f = 1 MHz POWER REQUIREMENTS VDD = +5.5 V, VSS = –5.5 V IDD 0.001 µA Typ Digital Inputs = 0 V or 5.5 V 1.0 µA Max Iss 0.001 µA Typ Digital Inputs = 0 V or 5.5 V 1.0 µA Max NOTES 1Y Version Temperature Range: –40°C to +125°C. Specifications subject to change without notice. –2– REV. A
