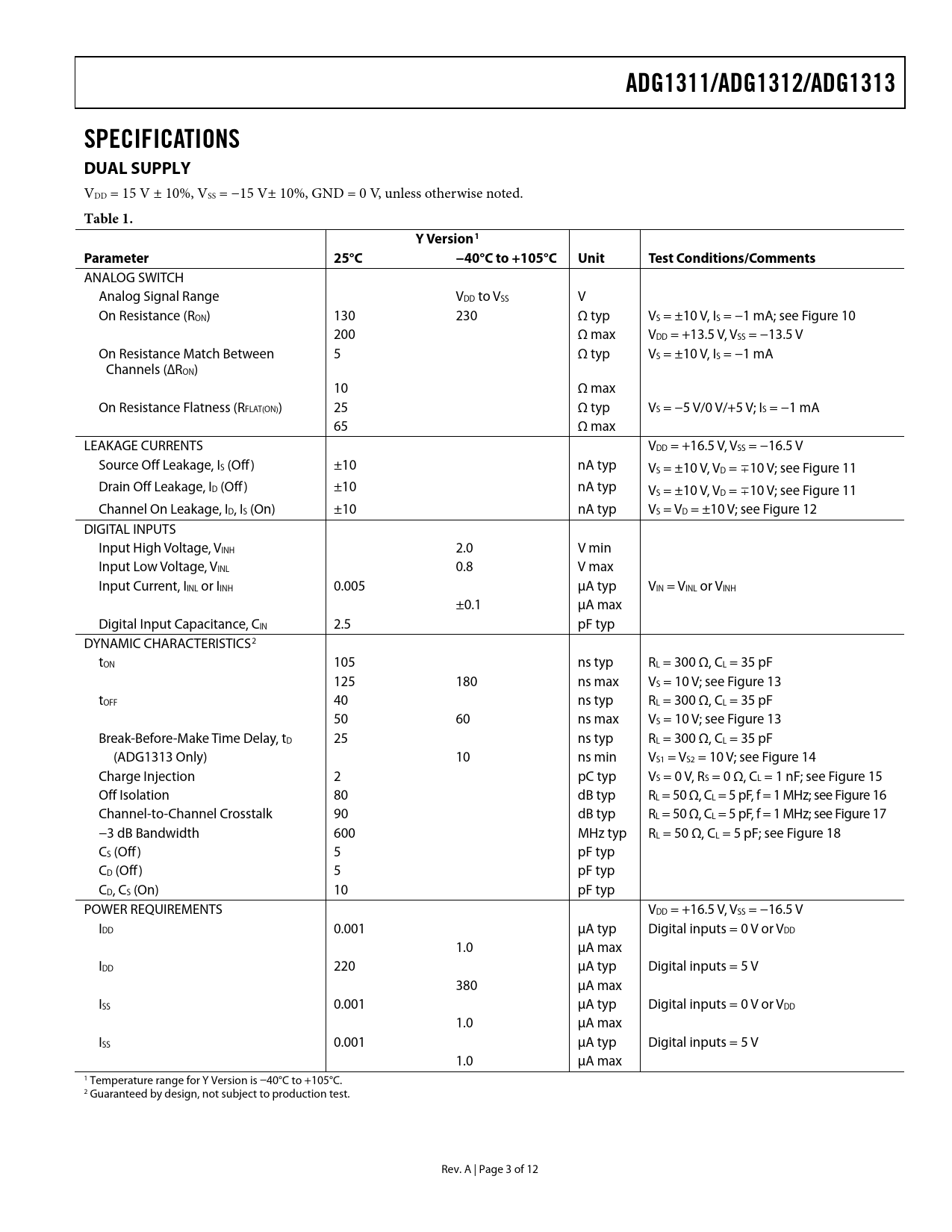

ADG1311/ADG1312/ADG1313 SPECIFICATIONS DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V± 10%, GND = 0 V, unless otherwise noted.
Table 1. Y Version1 Parameter 25°C −40°C to +105°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance (RON) 130 230 Ω typ VS = ±10 V, IS = −1 mA; see Figure 10 200 Ω max VDD = +13.5 V, VSS = −13.5 V On Resistance Match Between 5 Ω typ VS = ±10 V, IS = −1 mA Channels (∆RON) 10 Ω max On Resistance Flatness (RFLAT(ON)) 25 Ω typ VS = −5 V/0 V/+5 V; IS = −1 mA 65 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off ) ±10 nA typ VS = ±10 V, VD = ∓10 V; see Figure 11 Drain Off Leakage, ID (Off ) ±10 nA typ VS = ±10 V, VD = ∓10 V; see Figure 11 Channel On Leakage, ID, IS (On) ±10 nA typ VS = VD = ±10 V; see Figure 12 DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.1 μA max Digital Input Capacitance, CIN 2.5 pF typ DYNAMIC CHARACTERISTICS2 tON 105 ns typ RL = 300 Ω, CL = 35 pF 125 180 ns max VS = 10 V; see Figure 13 tOFF 40 ns typ RL = 300 Ω, CL = 35 pF 50 60 ns max VS = 10 V; see Figure 13 Break-Before-Make Time Delay, tD 25 ns typ RL = 300 Ω, CL = 35 pF (ADG1313 Only) 10 ns min VS1 = VS2 = 10 V; see Figure 14 Charge Injection 2 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 15 Off Isolation 80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 16 Channel-to-Channel Crosstalk 90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 17 −3 dB Bandwidth 600 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 18 CS (Off ) 5 pF typ CD (Off ) 5 pF typ CD, CS (On) 10 pF typ POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max IDD 220 μA typ Digital inputs = 5 V 380 μA max ISS 0.001 μA typ Digital inputs = 0 V or VDD 1.0 μA max ISS 0.001 μA typ Digital inputs = 5 V 1.0 μA max 1 Temperature range for Y Version is −40°C to +105°C. 2 Guaranteed by design, not subject to production test. Rev. A | Page 3 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
