ADG1311/ADG1312/ADG1313. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Rating. Table 4. ADG1311/ADG1312 Truth Table. ADG1311 INx
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5 link to page 5

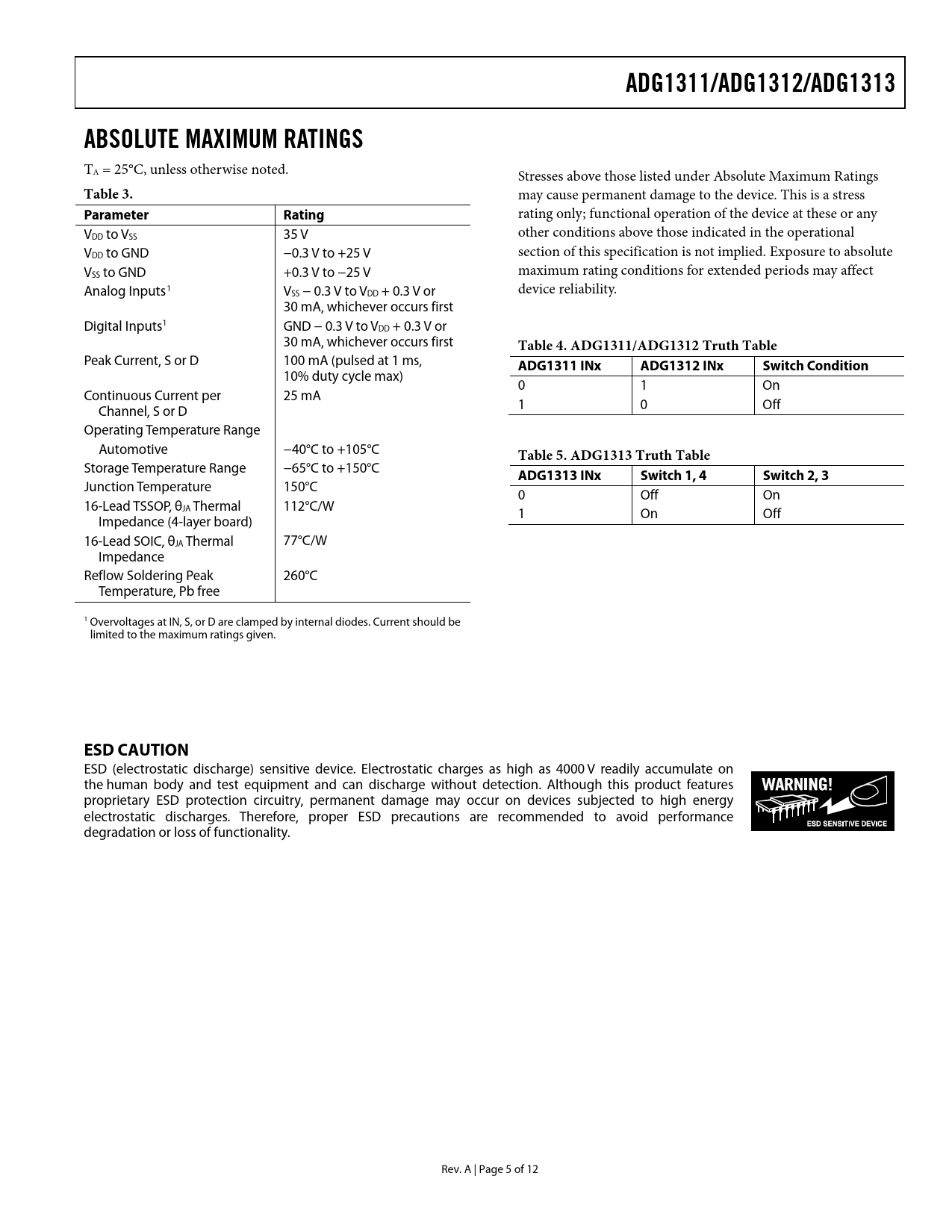

ADG1311/ADG1312/ADG1313 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings
Table 3.
may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any VDD to VSS 35 V other conditions above those indicated in the operational VDD to GND −0.3 V to +25 V section of this specification is not implied. Exposure to absolute VSS to GND +0.3 V to −25 V maximum rating conditions for extended periods may affect Analog Inputs1 V device reliability. SS − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Digital Inputs1 GND − 0.3 V to V DD + 0.3 V or 30 mA, whichever occurs first
Table 4. ADG1311/ADG1312 Truth Table
Peak Current, S or D 100 mA (pulsed at 1 ms,
ADG1311 INx ADG1312 INx Switch Condition
10% duty cycle max) 0 1 On Continuous Current per 25 mA 1 0 Off Channel, S or D Operating Temperature Range Automotive −40°C to +105°C
Table 5. ADG1313 Truth Table
Storage Temperature Range −65°C to +150°C
ADG1313 INx Switch 1, 4 Switch 2, 3
Junction Temperature 150°C 0 Off On 16-Lead TSSOP, θJA Thermal 112°C/W 1 On Off Impedance (4-layer board) 16-Lead SOIC, θJA Thermal 77°C/W Impedance Reflow Soldering Peak 260°C Temperature, Pb free 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given.
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. A | Page 5 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
