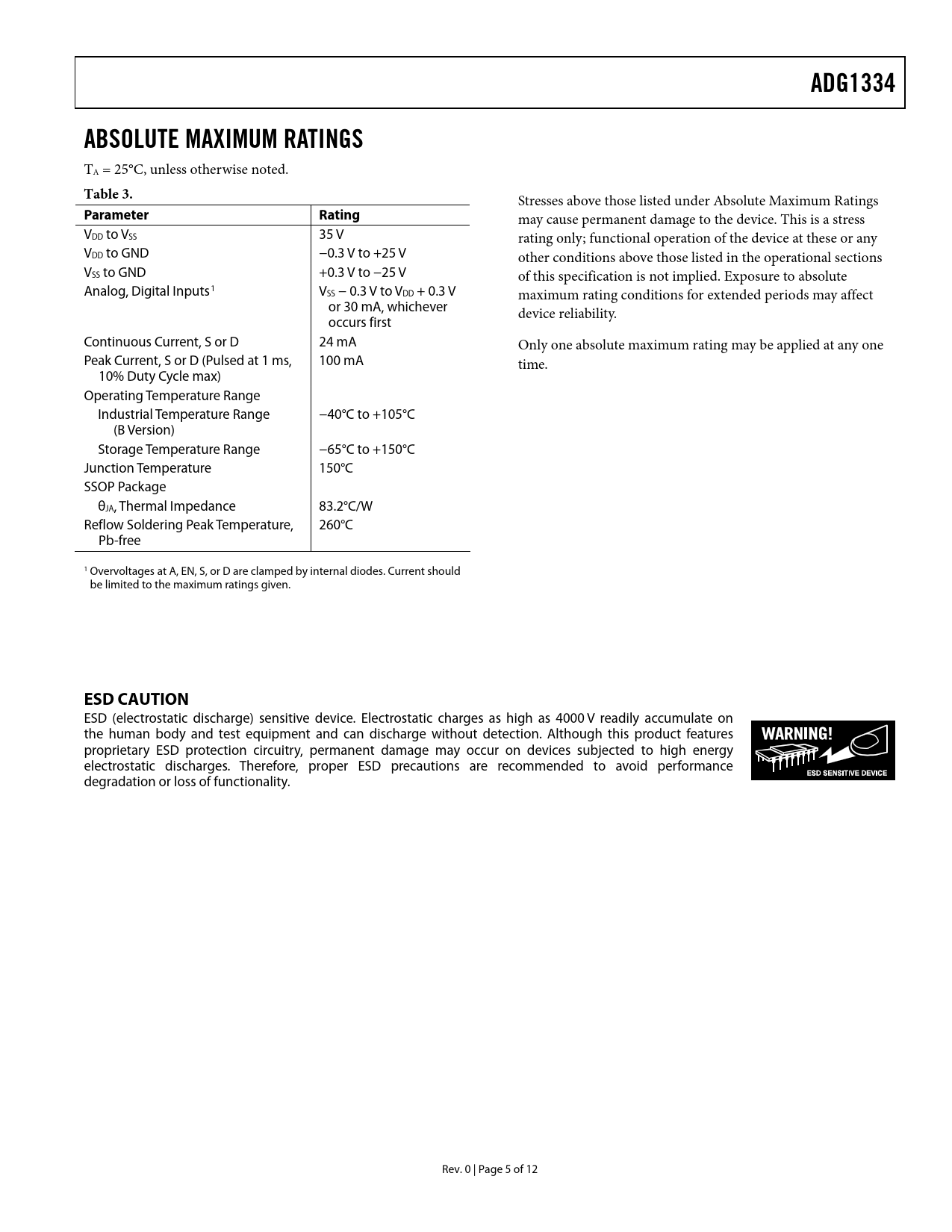

link to page 5 ADG1334ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise noted. Table 3. Stresses above those listed under Absolute Maximum Ratings Parameter Rating may cause permanent damage to the device. This is a stress VDD to VSS 35 V rating only; functional operation of the device at these or any VDD to GND −0.3 V to +25 V other conditions above those listed in the operational sections VSS to GND +0.3 V to −25 V of this specification is not implied. Exposure to absolute Analog, Digital Inputs1 VSS − 0.3 V to VDD + 0.3 V maximum rating conditions for extended periods may affect or 30 mA, whichever device reliability. occurs first Continuous Current, S or D 24 mA Only one absolute maximum rating may be applied at any one Peak Current, S or D (Pulsed at 1 ms, 100 mA time. 10% Duty Cycle max) Operating Temperature Range Industrial Temperature Range −40°C to +105°C (B Version) Storage Temperature Range −65°C to +150°C Junction Temperature 150°C SSOP Package θJA, Thermal Impedance 83.2°C/W Reflow Soldering Peak Temperature, 260°C Pb-free 1 Overvoltages at A, EN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. ESD CAUTION ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. 0 | Page 5 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
