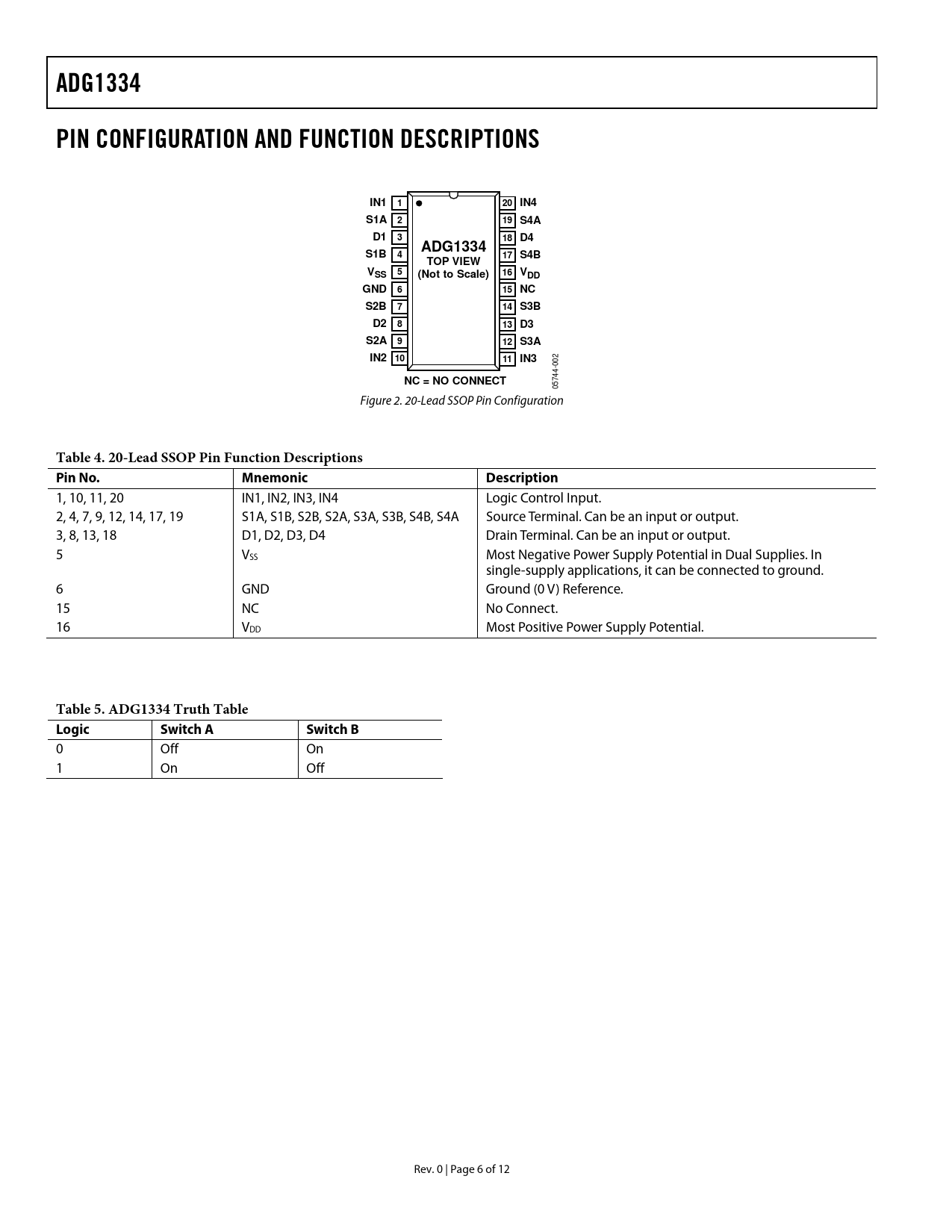

ADG1334. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. IN1. 20 IN4. S1A 2. 19 S4A. 18 D4. S1B. 17 S4B. TOP VIEW. VSS 5. 16 V. (Not to Scale). GND
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADG1334 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS IN1 1 20 IN4 S1A 2 19 S4A D1 3 18 D4 ADG1334 S1B 4 17 S4B TOP VIEW VSS 5 16 V (Not to Scale) DD GND 6 15 NC S2B 7 14 S3B D2 8 13 D3 S2A 9 12 S3A IN2 10 11 IN3
02 0 4-
NC = NO CONNECT
0574 Figure 2. 20-Lead SSOP Pin Configuration
Table 4. 20-Lead SSOP Pin Function Descriptions Pin No. Mnemonic Description
1, 10, 11, 20 IN1, IN2, IN3, IN4 Logic Control Input. 2, 4, 7, 9, 12, 14, 17, 19 S1A, S1B, S2B, S2A, S3A, S3B, S4B, S4A Source Terminal. Can be an input or output. 3, 8, 13, 18 D1, D2, D3, D4 Drain Terminal. Can be an input or output. 5 VSS Most Negative Power Supply Potential in Dual Supplies. In single-supply applications, it can be connected to ground. 6 GND Ground (0 V) Reference. 15 NC No Connect. 16 VDD Most Positive Power Supply Potential.
Table 5. ADG1334 Truth Table Logic Switch A Switch B
0 Off On 1 On Off Rev. 0 | Page 6 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
