Datasheet ADG1334 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Quad SPDT ±15 V/+12 V Switches |
| Páginas / Página | 12 / 4 — ADG1334. SINGLE SUPPLY1. Table 2. B. Version. −40°C to. Parameter +25°C. … |
| Formato / tamaño de archivo | PDF / 319 Kb |
| Idioma del documento | Inglés |

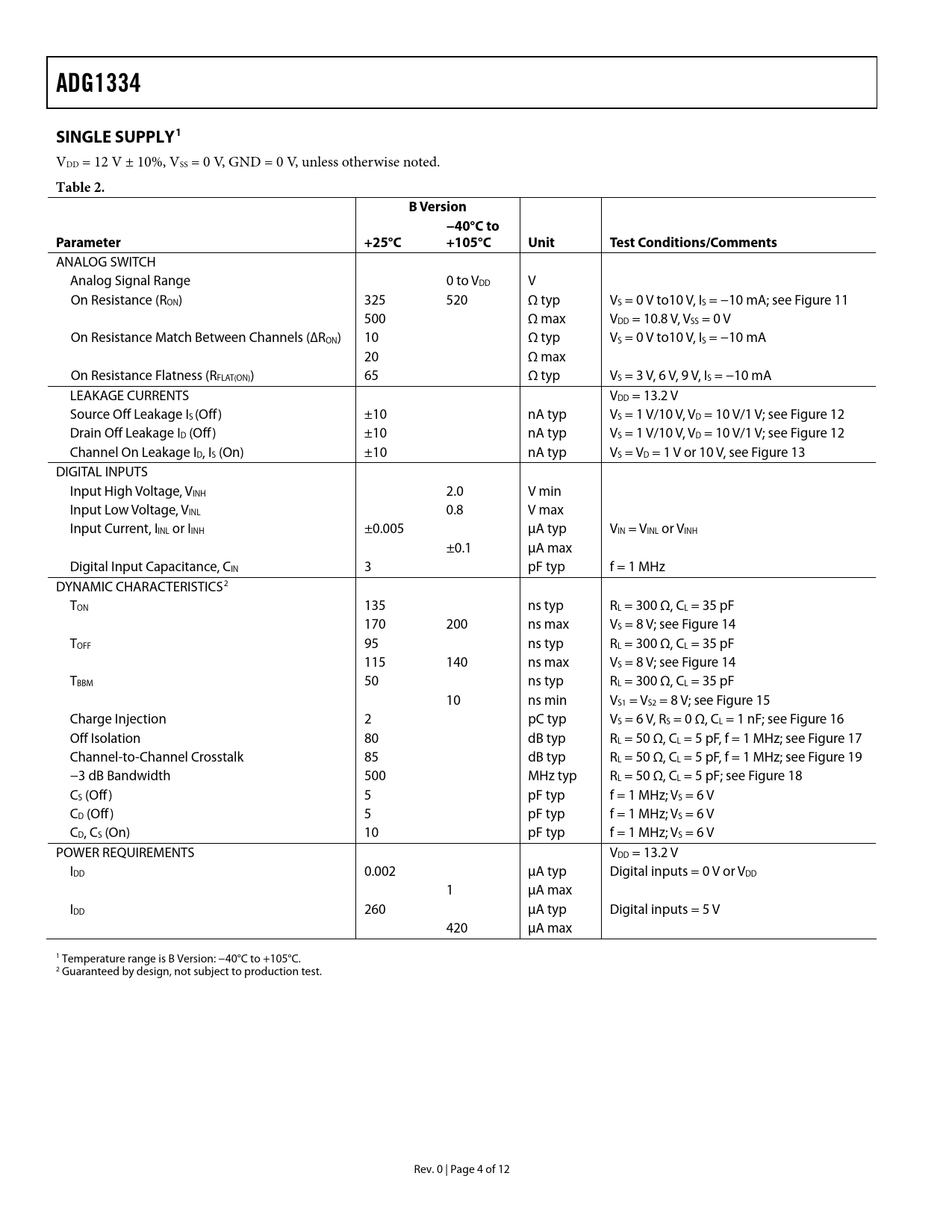

ADG1334. SINGLE SUPPLY1. Table 2. B. Version. −40°C to. Parameter +25°C. +105°C. Unit Test. Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 4 link to page 10 link to page 10 link to page 10 link to page 10 link to page 4 link to page 10 link to page 10 link to page 10 link to page 11 link to page 11 link to page 11 link to page 11
ADG1334 SINGLE SUPPLY1
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. B Version −40°C to Parameter +25°C +105°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V On Resistance (RON) 325 520 Ω typ VS = 0 V to10 V, IS = −10 mA; see Figure 11 500 Ω max VDD = 10.8 V, VSS = 0 V On Resistance Match Between Channels (∆RON) 10 Ω typ VS = 0 V to10 V, IS = −10 mA 20 Ω max On Resistance Flatness (RFLAT(ON)) 65 Ω typ VS = 3 V, 6 V, 9 V, IS = −10 mA LEAKAGE CURRENTS VDD = 13.2 V Source Off Leakage IS (Off ) ±10 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 12 Drain Off Leakage ID (Off ) ±10 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 12 Channel On Leakage ID, IS (On) ±10 nA typ VS = VD = 1 V or 10 V, see Figure 13 DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH ±0.005 μA typ VIN = VINL or VINH ±0.1 μA max Digital Input Capacitance, CIN 3 pF typ f = 1 MHz DYNAMIC CHARACTERISTICS2 TON 135 ns typ RL = 300 Ω, CL = 35 pF 170 200 ns max VS = 8 V; see Figure 14 TOFF 95 ns typ RL = 300 Ω, CL = 35 pF 115 140 ns max VS = 8 V; see Figure 14 TBBM 50 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = 8 V; see Figure 15 Charge Injection 2 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 16 Off Isolation 80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 17 Channel-to-Channel Crosstalk 85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 19 −3 dB Bandwidth 500 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 18 CS (Off ) 5 pF typ f = 1 MHz; VS = 6 V CD (Off ) 5 pF typ f = 1 MHz; VS = 6 V CD, CS (On) 10 pF typ f = 1 MHz; VS = 6 V POWER REQUIREMENTS VDD = 13.2 V IDD 0.002 μA typ Digital inputs = 0 V or VDD 1 μA max IDD 260 μA typ Digital inputs = 5 V 420 μA max 1 Temperature range is B Version: −40°C to +105°C. 2 Guaranteed by design, not subject to production test. Rev. 0 | Page 4 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
