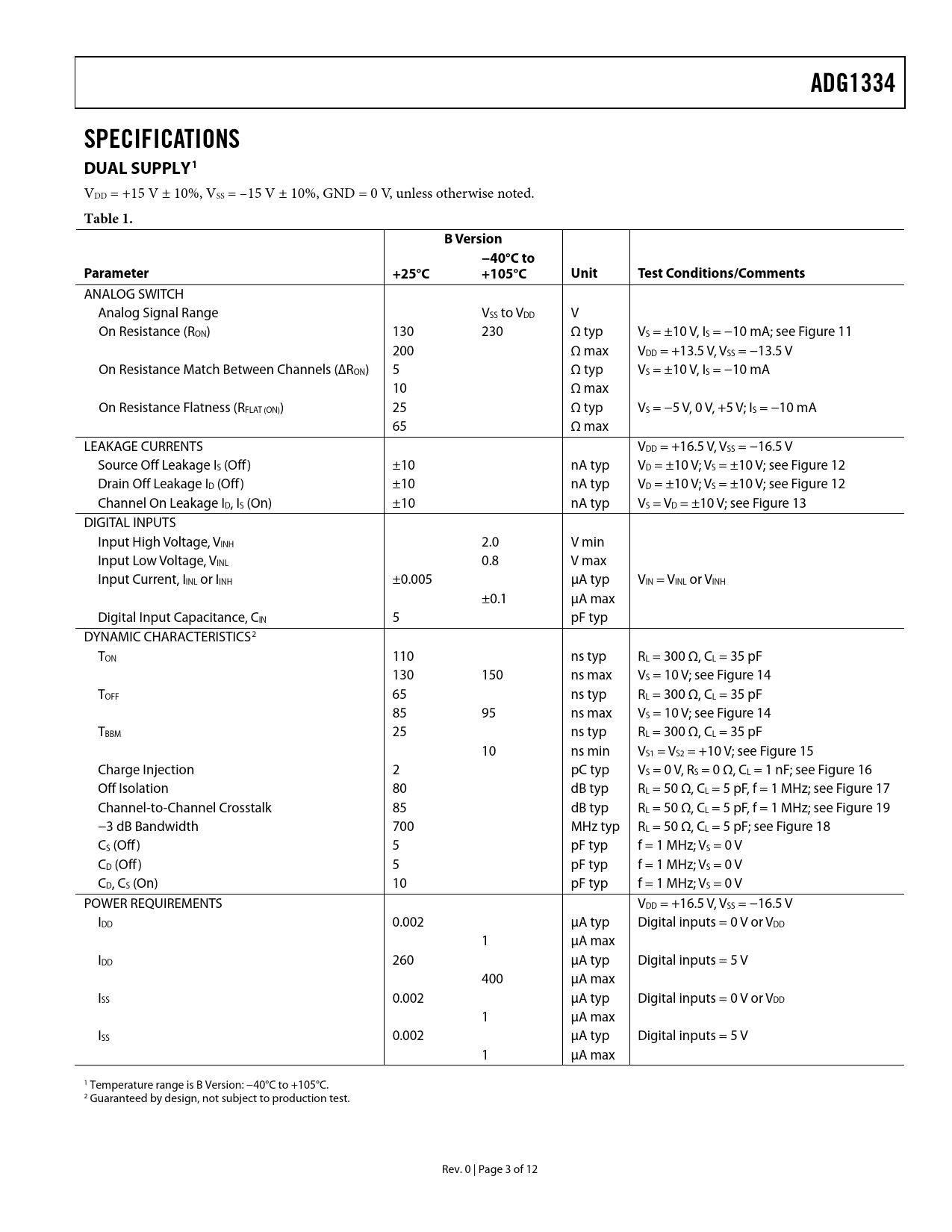

ADG1334 SPECIFICATIONS DUAL SUPPLY1
VDD = +15 V ± 10%, VSS = –15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. B Version −40°C to Parameter +25°C +105°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V On Resistance (RON) 130 230 Ω typ VS = ±10 V, IS = −10 mA; see Figure 11 200 Ω max VDD = +13.5 V, VSS = −13.5 V On Resistance Match Between Channels (∆RON) 5 Ω typ VS = ±10 V, IS = −10 mA 10 Ω max On Resistance Flatness (RFLAT (ON)) 25 Ω typ VS = −5 V, 0 V, +5 V; IS = −10 mA 65 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage IS (Off ) ±10 nA typ VD = ±10 V; VS = ±10 V; see Figure 12 Drain Off Leakage ID (Off ) ±10 nA typ VD = ±10 V; VS = ±10 V; see Figure 12 Channel On Leakage ID, IS (On) ±10 nA typ VS = VD = ±10 V; see Figure 13 DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH ±0.005 μA typ VIN = VINL or VINH ±0.1 μA max Digital Input Capacitance, CIN 5 pF typ DYNAMIC CHARACTERISTICS2 TON 110 ns typ RL = 300 Ω, CL = 35 pF 130 150 ns max VS = 10 V; see Figure 14 TOFF 65 ns typ RL = 300 Ω, CL = 35 pF 85 95 ns max VS = 10 V; see Figure 14 TBBM 25 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = +10 V; see Figure 15 Charge Injection 2 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 16 Off Isolation 80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 17 Channel-to-Channel Crosstalk 85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 19 −3 dB Bandwidth 700 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 18 CS (Off ) 5 pF typ f = 1 MHz; VS = 0 V CD (Off ) 5 pF typ f = 1 MHz; VS = 0 V CD, CS (On) 10 pF typ f = 1 MHz; VS = 0 V POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.002 μA typ Digital inputs = 0 V or VDD 1 μA max IDD 260 μA typ Digital inputs = 5 V 400 μA max ISS 0.002 μA typ Digital inputs = 0 V or VDD 1 μA max ISS 0.002 μA typ Digital inputs = 5 V 1 μA max 1 Temperature range is B Version: −40°C to +105°C. 2 Guaranteed by design, not subject to production test. Rev. 0 | Page 3 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
