ADG1308/ADG1309. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. A0 1. 16 A1. EN 2. 15 A2. GND. ADG1308. S1 4. TOP VIEW. 13 VDD. (Not to Scale)

ADG1308/ADG1309 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS A0 1 16 A1 EN 2 15 A2 GND ADG1308 S1 4 TOP VIEW 13 VDD (Not to Scale)

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 7 link to page 7 link to page 7

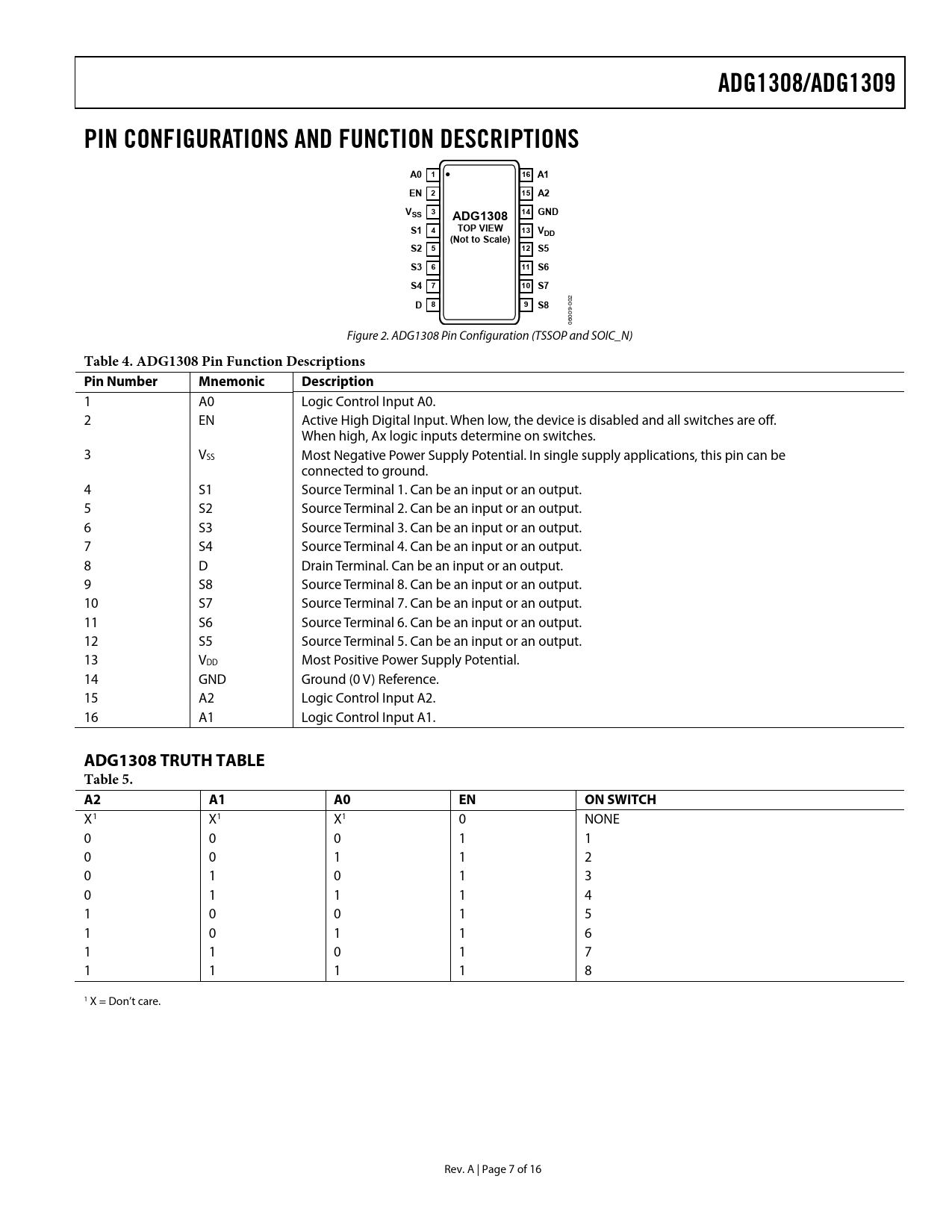

ADG1308/ADG1309 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS A0 1 16 A1 EN 2 15 A2 V 3 14 SS GND ADG1308 S1 4 TOP VIEW 13 VDD (Not to Scale) S2 5 12 S5 S3 6 11 S6 S4 7 10 S7
2
D 8 9 S8
-00 09 60 0 Figure 2. ADG1308 Pin Configuration (TSSOP and SOIC_N)
Table 4. ADG1308 Pin Function Descriptions Pin Number Mnemonic Description
1 A0 Logic Control Input A0. 2 EN Active High Digital Input. When low, the device is disabled and all switches are off. When high, Ax logic inputs determine on switches. 3 VSS Most Negative Power Supply Potential. In single supply applications, this pin can be connected to ground. 4 S1 Source Terminal 1. Can be an input or an output. 5 S2 Source Terminal 2. Can be an input or an output. 6 S3 Source Terminal 3. Can be an input or an output. 7 S4 Source Terminal 4. Can be an input or an output. 8 D Drain Terminal. Can be an input or an output. 9 S8 Source Terminal 8. Can be an input or an output. 10 S7 Source Terminal 7. Can be an input or an output. 11 S6 Source Terminal 6. Can be an input or an output. 12 S5 Source Terminal 5. Can be an input or an output. 13 VDD Most Positive Power Supply Potential. 14 GND Ground (0 V) Reference. 15 A2 Logic Control Input A2. 16 A1 Logic Control Input A1.
ADG1308 TRUTH TABLE Table 5. A2 A1 A0 EN ON SWITCH
X1 X1 X1 0 NONE 0 0 0 1 1 0 0 1 1 2 0 1 0 1 3 0 1 1 1 4 1 0 0 1 5 1 0 1 1 6 1 1 0 1 7 1 1 1 1 8 1 X = Don’t care. Rev. A | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS ADG1308 TRUTH TABLE ADG1309 TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
