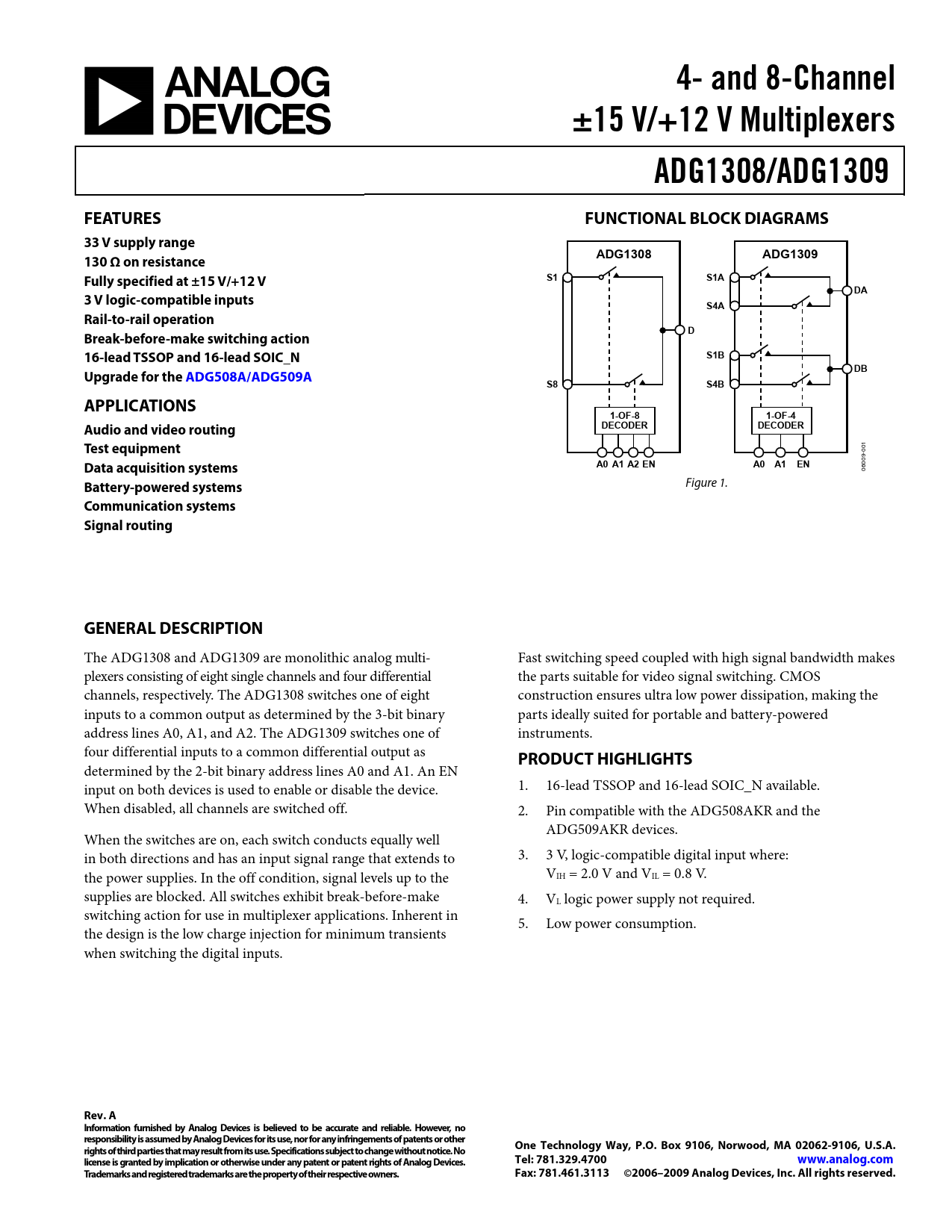

Datasheet ADG1308, ADG1309 (Analog Devices)

4- and 8-Channel ±15 V/+12 V Multiplexers ADG1308/ADG1309 FEATURES FUNCTIONAL BLOCK DIAGRAMS 33 V supply range ADG1308 ADG1309 130 Ω on resistance Fully specified at ±15 V/+12 V S1 S1A DA 3 V logic-compatible inputs S4A Rail-to-rail operation D Break-before-make switching action 16-lead TSSOP and 16-lead SOIC_N S1B DB Upgrade for the ADG508A /ADG509A S8 S4B APPLICATIONS 1-OF-8 1-OF-4 Audio and video routing DECODER DECODER Test equipment
01 0 9-
Data acquisition systems A0 A1 A2 EN A0 A1 EN
00 06
Battery-powered systems
Figure 1.
Communication systems Signal routing GENERAL DESCRIPTION
The ADG1308 and ADG1309 are monolithic analog multi- Fast switching speed coupled with high signal bandwidth makes plexers consisting of eight single channels and four differential the parts suitable for video signal switching. CMOS channels, respectively. The ADG1308 switches one of eight construction ensures ultra low power dissipation, making the inputs to a common output as determined by the 3-bit binary parts ideally suited for portable and battery-powered address lines A0, A1, and A2. The ADG1309 switches one of instruments. four differential inputs to a common differential output as
PRODUCT HIGHLIGHTS
determined by the 2-bit binary address lines A0 and A1. An EN input on both devices is used to enable or disable the device. 1. 16-lead TSSOP and 16-lead SOIC_N available. When disabled, all channels are switched off. 2. Pin compatible with the ADG508AKR and the ADG509AKR devices. When the switches are on, each switch conducts equally well in both directions and has an input signal range that extends to 3. 3 V, logic-compatible digital input where: the power supplies. In the off condition, signal levels up to the VIH = 2.0 V and VIL = 0.8 V. supplies are blocked. All switches exhibit break-before-make 4. VL logic power supply not required. switching action for use in multiplexer applications. Inherent in 5. Low power consumption. the design is the low charge injection for minimum transients when switching the digital inputs.
Rev. A Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2006–2009 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS ADG1308 TRUTH TABLE ADG1309 TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
