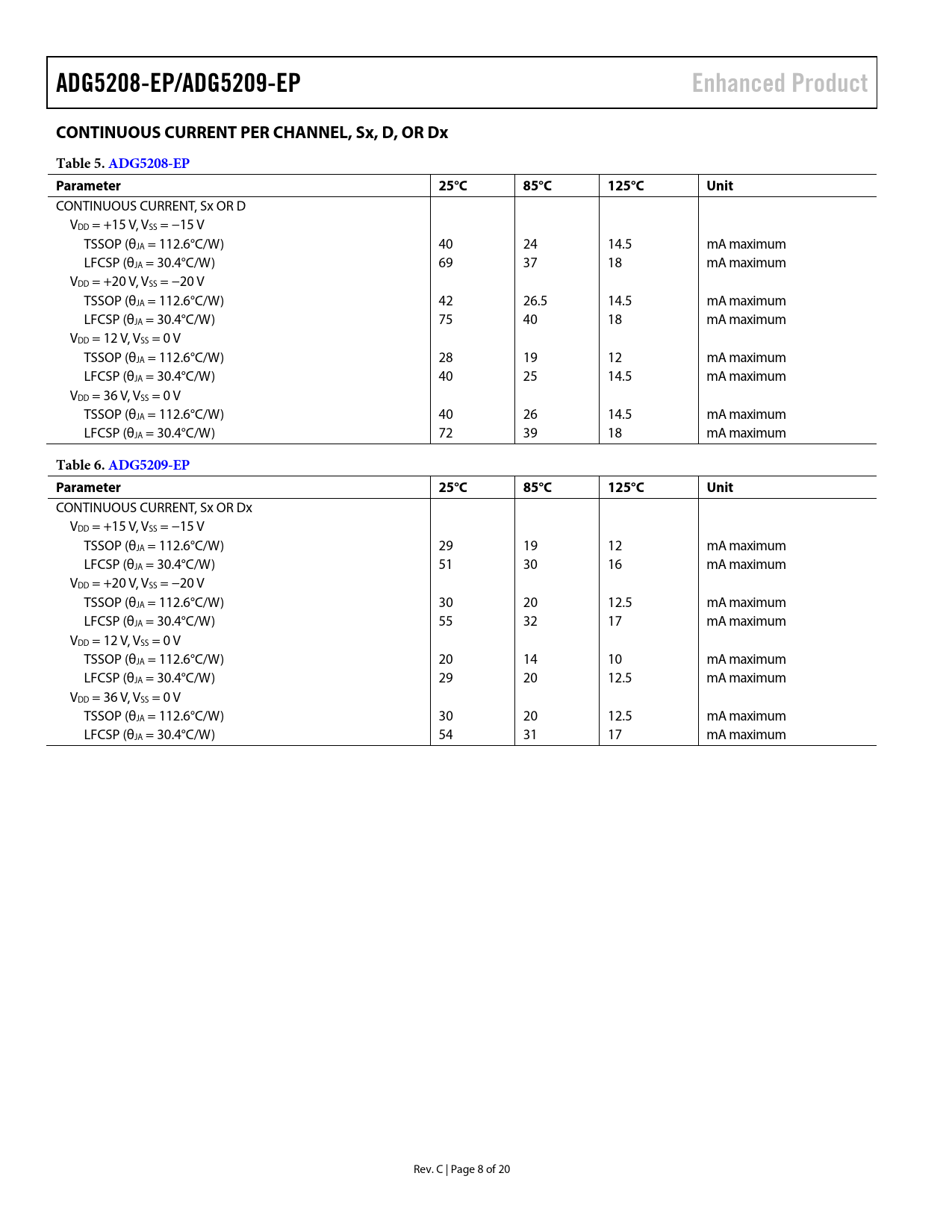

ADG5208-EP/ADG5209-EP Enhanced Product CONTINUOUS CURRENT PER CHANNEL, Sx, D, OR Dx Table 5. ADG5208-EP Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, Sx OR D VDD = +15 V, VSS = −15 V TSSOP (θJA = 112.6°C/W) 40 24 14.5 mA maximum LFCSP (θJA = 30.4°C/W) 69 37 18 mA maximum VDD = +20 V, VSS = −20 V TSSOP (θJA = 112.6°C/W) 42 26.5 14.5 mA maximum LFCSP (θJA = 30.4°C/W) 75 40 18 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 28 19 12 mA maximum LFCSP (θJA = 30.4°C/W) 40 25 14.5 mA maximum VDD = 36 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 40 26 14.5 mA maximum LFCSP (θJA = 30.4°C/W) 72 39 18 mA maximum
Table 6. ADG5209-EP Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, Sx OR Dx VDD = +15 V, VSS = −15 V TSSOP (θJA = 112.6°C/W) 29 19 12 mA maximum LFCSP (θJA = 30.4°C/W) 51 30 16 mA maximum VDD = +20 V, VSS = −20 V TSSOP (θJA = 112.6°C/W) 30 20 12.5 mA maximum LFCSP (θJA = 30.4°C/W) 55 32 17 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 20 14 10 mA maximum LFCSP (θJA = 30.4°C/W) 29 20 12.5 mA maximum VDD = 36 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 30 20 12.5 mA maximum LFCSP (θJA = 30.4°C/W) 54 31 17 mA maximum Rev. C | Page 8 of 20 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Table of Contents Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx, D, or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide
