Enhanced Product. ADG5208-EP/ADG5209-EP. ABSOLUTE MAXIMUM RATINGS. Table 7. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8 link to page 8

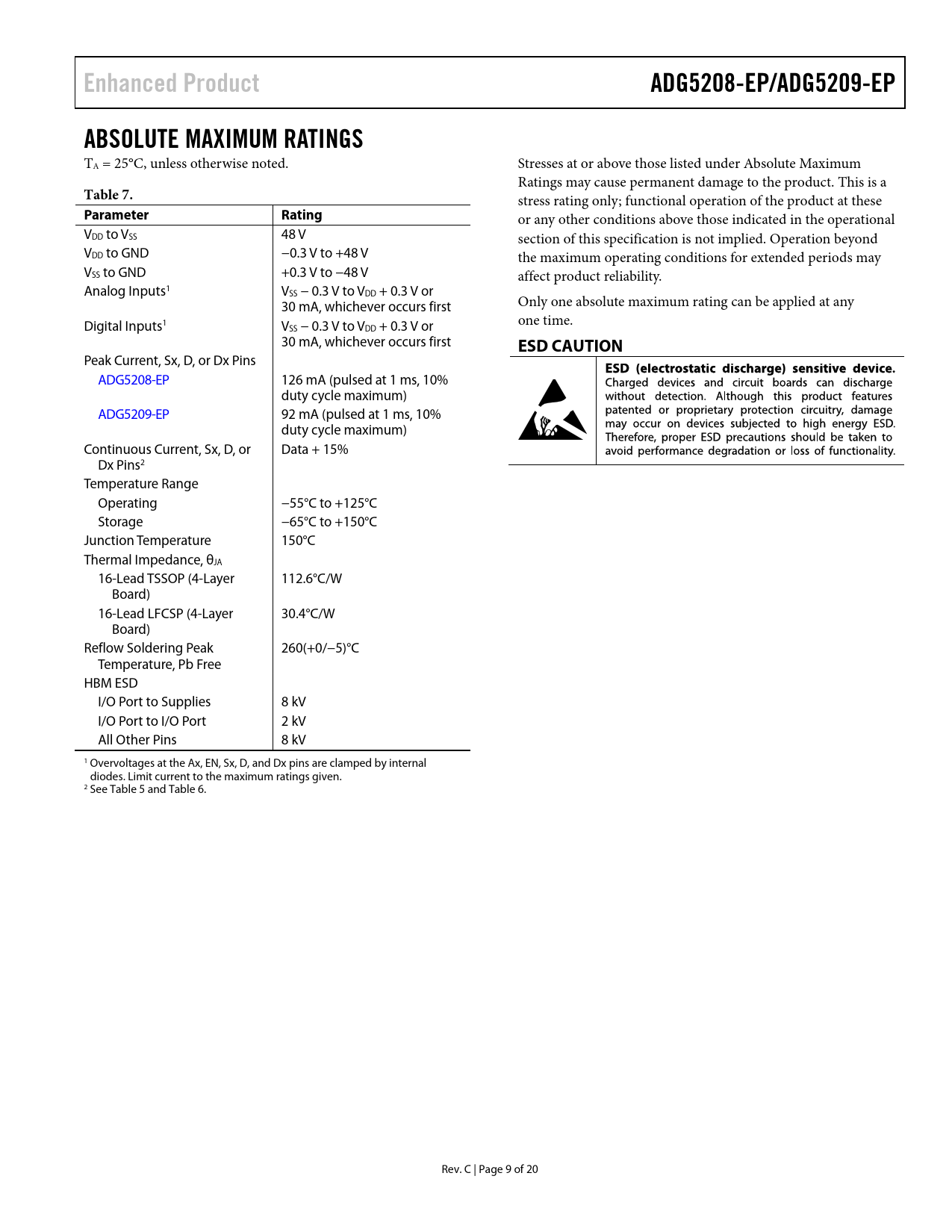

Enhanced Product ADG5208-EP/ADG5209-EP ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Table 7.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational VDD to VSS 48 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +48 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to −48 V affect product reliability. Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Only one absolute maximum rating can be applied at any Digital Inputs1 V one time. SS − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first
ESD CAUTION
Peak Current, Sx, D, or Dx Pins ADG5208-EP 126 mA (pulsed at 1 ms, 10% duty cycle maximum) ADG5209-EP 92 mA (pulsed at 1 ms, 10% duty cycle maximum) Continuous Current, Sx, D, or Data + 15% Dx Pins2 Temperature Range Operating −55°C to +125°C Storage −65°C to +150°C Junction Temperature 150°C Thermal Impedance, θ JA 16-Lead TSSOP (4-Layer 112.6°C/W Board) 16-Lead LFCSP (4-Layer 30.4°C/W Board) Reflow Soldering Peak 260(+0/−5)°C Temperature, Pb Free HBM ESD I/O Port to Supplies 8 kV I/O Port to I/O Port 2 kV All Other Pins 8 kV 1 Overvoltages at the Ax, EN, Sx, D, and Dx pins are clamped by internal diodes. Limit current to the maximum ratings given. 2 See Table 5 and Table 6. Rev. C | Page 9 of 20 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Table of Contents Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx, D, or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide
