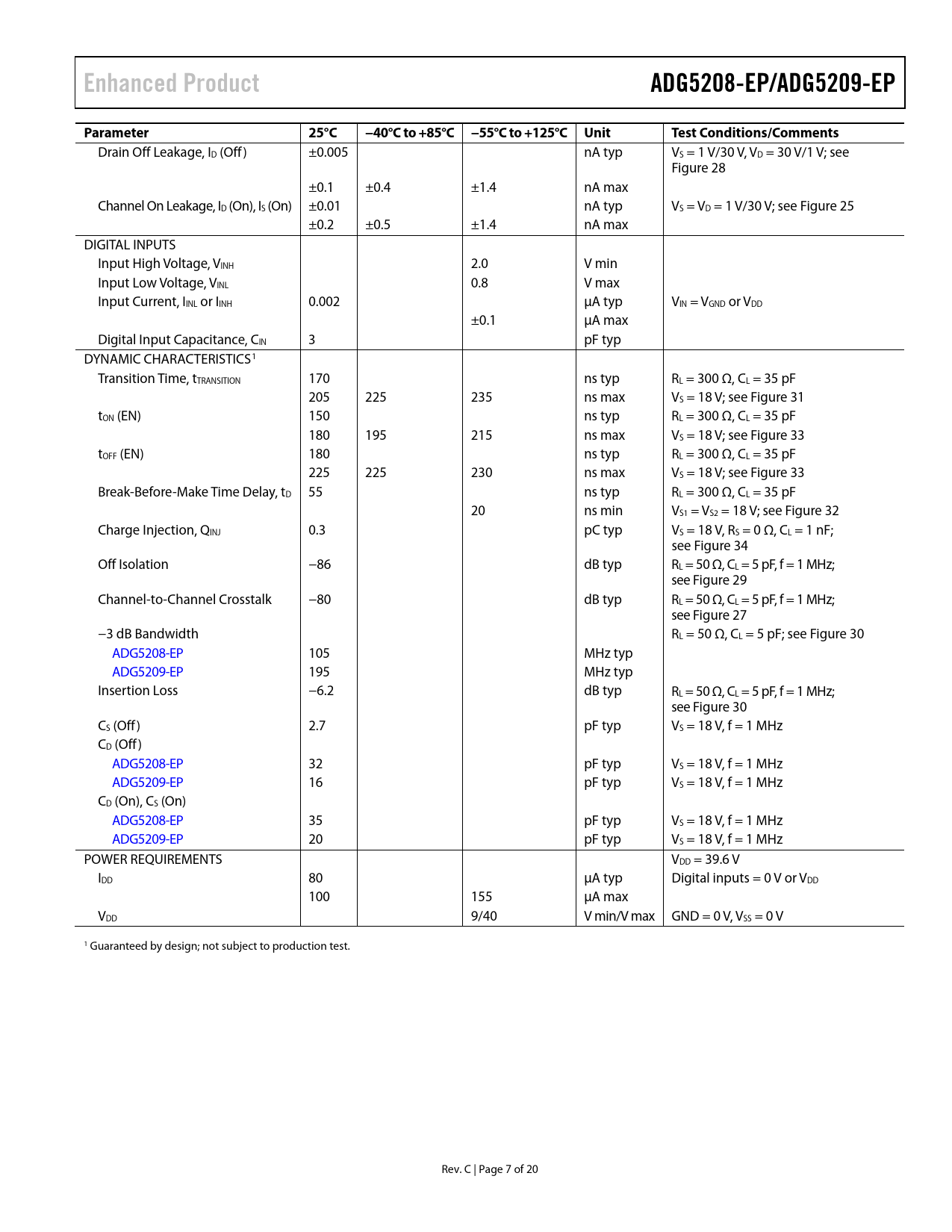

Datasheet ADG5208-EP, ADG5209-EP (Analog Devices) - 7

link to page 16 link to page 16 link to page 17 link to page 17 link to page 17 link to page 17 link to page 18 link to page 16 link to page 16 link to page 16 link to page 16 link to page 9
Enhanced Product ADG5208-EP/ADG5209-EP Parameter 25°C −40°C to +85°C −55°C to +125°C Unit Test Conditions/Comments
Drain Off Leakage, ID (Off) ±0.005 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 28 ±0.1 ±0.4 ±1.4 nA max Channel On Leakage, ID (On), IS (On) ±0.01 nA typ VS = VD = 1 V/30 V; see Figure 25 ±0.2 ±0.5 ±1.4 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 170 ns typ RL = 300 Ω, CL = 35 pF 205 225 235 ns max VS = 18 V; see Figure 31 tON (EN) 150 ns typ RL = 300 Ω, CL = 35 pF 180 195 215 ns max VS = 18 V; see Figure 33 tOFF (EN) 180 ns typ RL = 300 Ω, CL = 35 pF 225 225 230 ns max VS = 18 V; see Figure 33 Break-Before-Make Time Delay, tD 55 ns typ RL = 300 Ω, CL = 35 pF 20 ns min VS1 = VS2 = 18 V; see Figure 32 Charge Injection, QINJ 0.3 pC typ VS = 18 V, RS = 0 Ω, CL = 1 nF; see Figure 34 Off Isolation −86 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 Channel-to-Channel Crosstalk −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 27 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 30 ADG5208-EP 105 MHz typ ADG5209-EP 195 MHz typ Insertion Loss −6.2 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 30 CS (Off) 2.7 pF typ VS = 18 V, f = 1 MHz CD (Off) ADG5208-EP 32 pF typ VS = 18 V, f = 1 MHz ADG5209-EP 16 pF typ VS = 18 V, f = 1 MHz CD (On), CS (On) ADG5208-EP 35 pF typ VS = 18 V, f = 1 MHz ADG5209-EP 20 pF typ VS = 18 V, f = 1 MHz POWER REQUIREMENTS VDD = 39.6 V IDD 80 µA typ Digital inputs = 0 V or VDD 100 155 µA max VDD 9/40 V min/V max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test. Rev. C | Page 7 of 20 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Table of Contents Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx, D, or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide
