Known Good Die. ADG798-KGD. TRUTH TABLE. Table 8. Truth Table A2. Switch Condition
Línea de modelo para esta hoja de datos
Versión de texto del documento

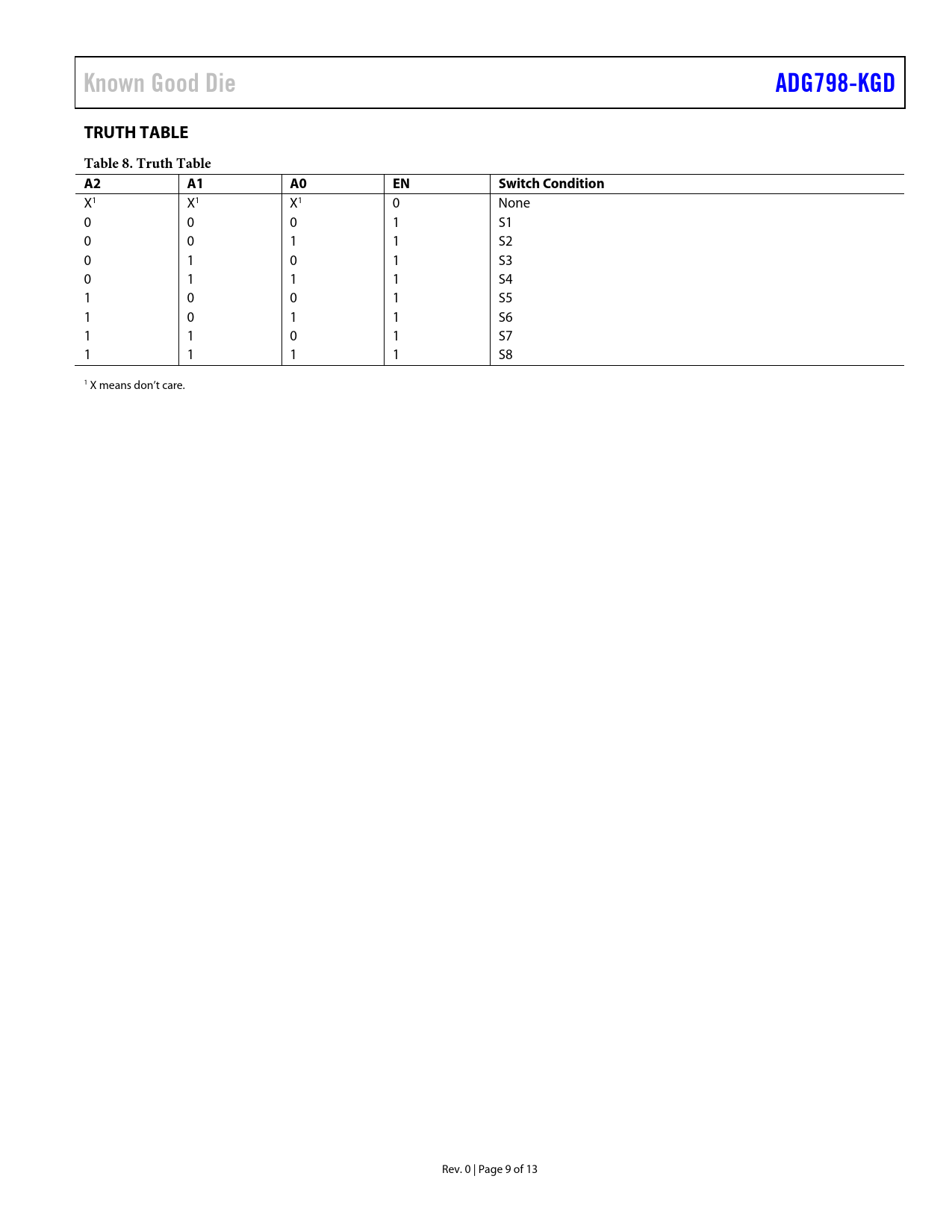

Known Good Die ADG798-KGD TRUTH TABLE Table 8. Truth Table A2 A1 A0 EN Switch Condition
X1 X1 X1 0 None 0 0 0 1 S1 0 0 1 1 S2 0 1 0 1 S3 0 1 1 1 S4 1 0 0 1 S5 1 0 1 1 S6 1 1 0 1 S7 1 1 1 1 S8 1 X means don’t care. Rev. 0 | Page 9 of 13 Document Outline FEATURES APPLICATIONS METAL MASK DIE IMAGE GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D PEAK CURRENT PER CHANNEL, Sx OR D (PULSED AT 1 MS, 10% DUTY CYCLE MAXIMUM) ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TRUTH TABLE TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
