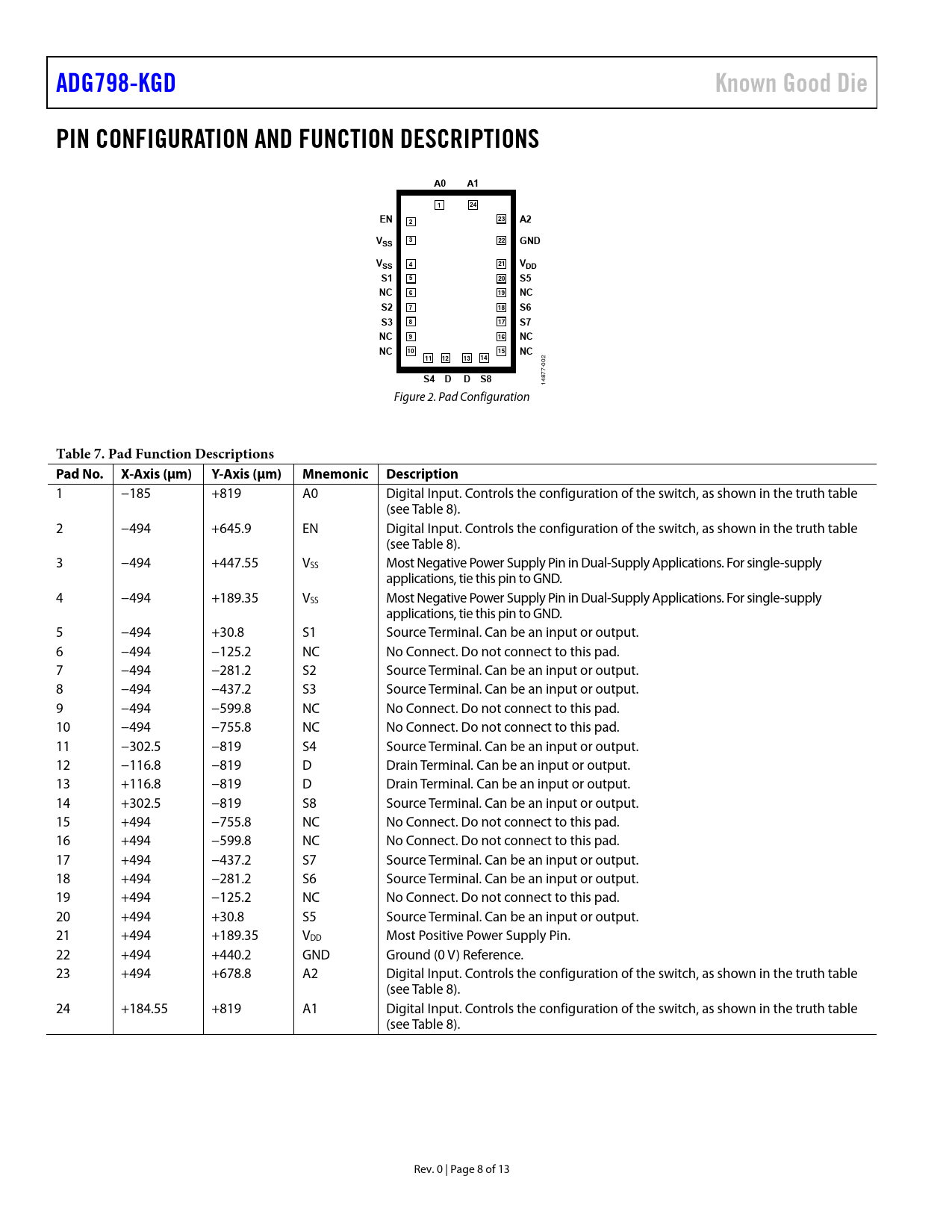

ADG798-KGD. Known Good Die. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. GND. S4 D. D S8. Table 7. Pad Function Descriptions Pad No
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 9 link to page 9 link to page 9 link to page 9
ADG798-KGD Known Good Die PIN CONFIGURATION AND FUNCTION DESCRIPTIONS A0 A1 1 24 EN 2 23 A2 3 V 22 GND SS V 4 21 V SS DD S1 5 20 S5 NC 6 19 NC S2 7 18 S6 S3 8 17 S7 NC 9 16 NC NC 10 15 NC 11 12 13 14
-002 877
S4 D D S8
14 Figure 2. Pad Configuration
Table 7. Pad Function Descriptions Pad No. X-Axis (μm) Y-Axis (μm) Mnemonic Description
1 −185 +819 A0 Digital Input. Controls the configuration of the switch, as shown in the truth table (see Table 8). 2 −494 +645.9 EN Digital Input. Controls the configuration of the switch, as shown in the truth table (see Table 8). 3 −494 +447.55 VSS Most Negative Power Supply Pin in Dual-Supply Applications. For single-supply applications, tie this pin to GND. 4 −494 +189.35 VSS Most Negative Power Supply Pin in Dual-Supply Applications. For single-supply applications, tie this pin to GND. 5 −494 +30.8 S1 Source Terminal. Can be an input or output. 6 −494 −125.2 NC No Connect. Do not connect to this pad. 7 −494 −281.2 S2 Source Terminal. Can be an input or output. 8 −494 −437.2 S3 Source Terminal. Can be an input or output. 9 −494 −599.8 NC No Connect. Do not connect to this pad. 10 −494 −755.8 NC No Connect. Do not connect to this pad. 11 −302.5 −819 S4 Source Terminal. Can be an input or output. 12 −116.8 −819 D Drain Terminal. Can be an input or output. 13 +116.8 −819 D Drain Terminal. Can be an input or output. 14 +302.5 −819 S8 Source Terminal. Can be an input or output. 15 +494 −755.8 NC No Connect. Do not connect to this pad. 16 +494 −599.8 NC No Connect. Do not connect to this pad. 17 +494 −437.2 S7 Source Terminal. Can be an input or output. 18 +494 −281.2 S6 Source Terminal. Can be an input or output. 19 +494 −125.2 NC No Connect. Do not connect to this pad. 20 +494 +30.8 S5 Source Terminal. Can be an input or output. 21 +494 +189.35 VDD Most Positive Power Supply Pin. 22 +494 +440.2 GND Ground (0 V) Reference. 23 +494 +678.8 A2 Digital Input. Controls the configuration of the switch, as shown in the truth table (see Table 8). 24 +184.55 +819 A1 Digital Input. Controls the configuration of the switch, as shown in the truth table (see Table 8). Rev. 0 | Page 8 of 13 Document Outline FEATURES APPLICATIONS METAL MASK DIE IMAGE GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D PEAK CURRENT PER CHANNEL, Sx OR D (PULSED AT 1 MS, 10% DUTY CYCLE MAXIMUM) ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TRUTH TABLE TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
