BGS12WN6. Wideband SPDT diversity switch with fast switching speed. Application information. 5 Application information
Línea de modelo para esta hoja de datos
Versión de texto del documento

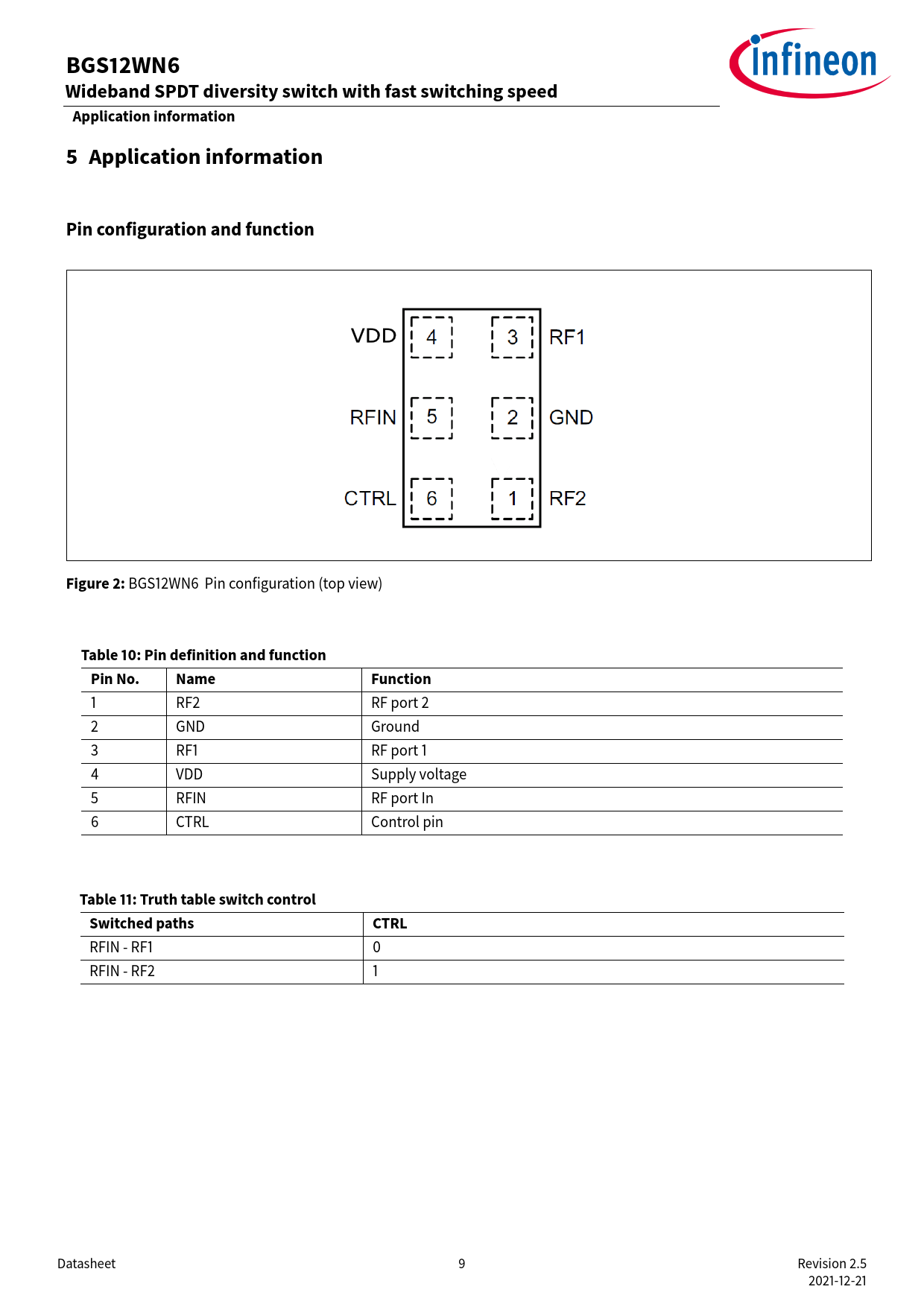

BGS12WN6 Wideband SPDT diversity switch with fast switching speed Application information 5 Application information Pin configuration and function Figure 2:
BGS12WN6 Pin configuration (top view)
Table 10: Pin definition and function Pin No. Name Function
1 RF2 RF port 2 2 GND Ground 3 RF1 RF port 1 4 VDD Supply voltage 5 RFIN RF port In 6 CTRL Control pin
Table 11: Truth table switch control Switched paths CTRL
RFIN - RF1 0 RFIN - RF2 1 Datasheet 9 Revision 2.5 2021-12-21 Document Outline Titlepage 1 Features 2 Absolute maximum ratings 3 Operation ranges 4 RF characteristics 5 Application information 6 Package information
