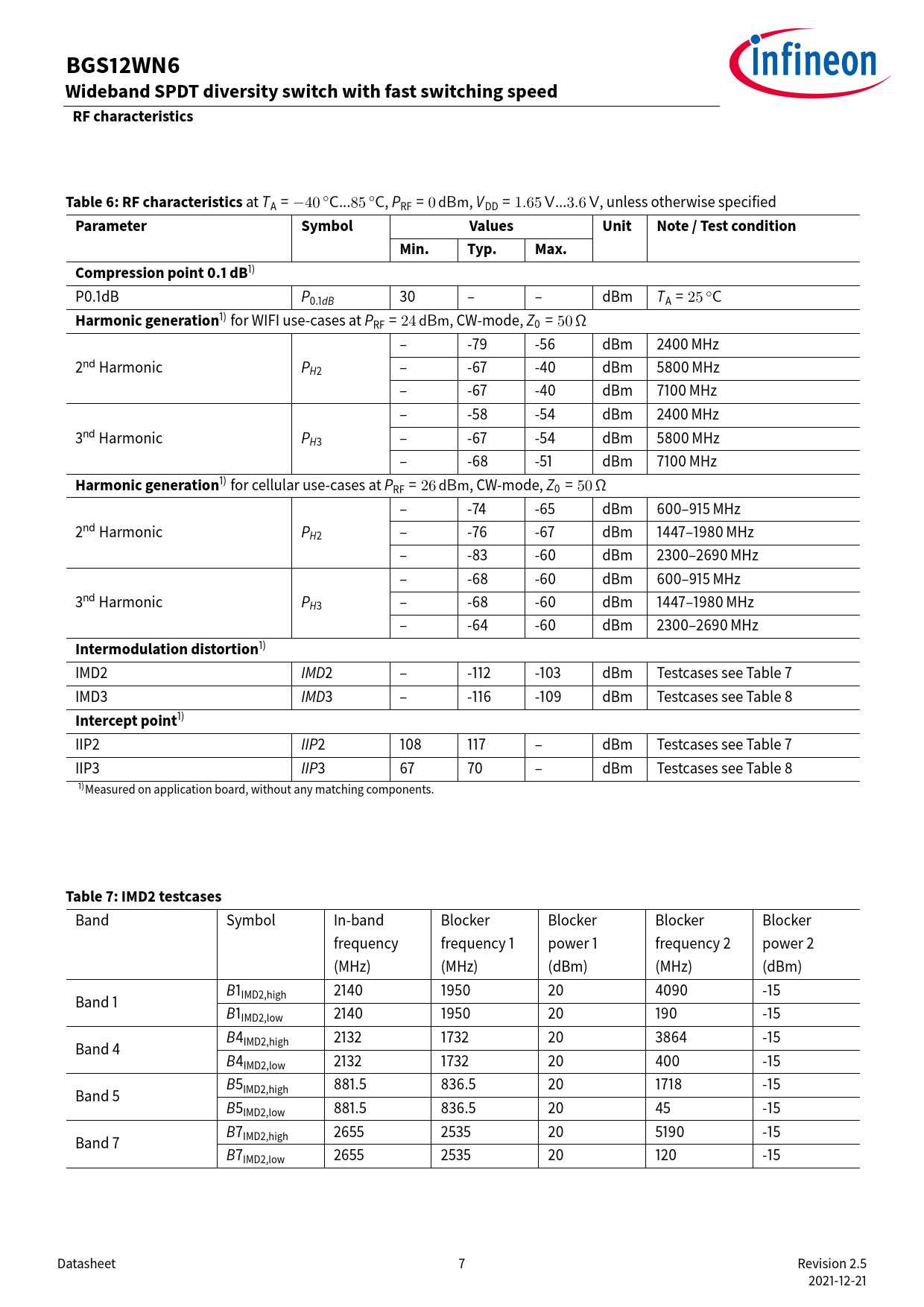

BGS12WN6 Wideband SPDT diversity switch with fast switching speed RF characteristics Table 6: RF characteristics
at TA = −40 ◦C...85 ◦C, PRF = 0 dBm, VDD = 1.65 V...3.6 V, unless otherwise specified
Parameter Symbol Values Unit Note / Test condition Min. Typ. Max. Compression point 0.1 dB
1) P0.1dB P0.1dB 30 – – dBm TA = 25 ◦C
Harmonic generation
1) for WIFI use-cases at PRF = 24 dBm, CW-mode, Z0 = 50 Ω – -79 -56 dBm 2400 MHz 2nd Harmonic PH2 – -67 -40 dBm 5800 MHz – -67 -40 dBm 7100 MHz – -58 -54 dBm 2400 MHz 3nd Harmonic PH3 – -67 -54 dBm 5800 MHz – -68 -51 dBm 7100 MHz
Harmonic generation
1) for cellular use-cases at PRF = 26 dBm, CW-mode, Z0 = 50 Ω – -74 -65 dBm 600–915 MHz 2nd Harmonic PH2 – -76 -67 dBm 1447–1980 MHz – -83 -60 dBm 2300–2690 MHz – -68 -60 dBm 600–915 MHz 3nd Harmonic PH3 – -68 -60 dBm 1447–1980 MHz – -64 -60 dBm 2300–2690 MHz
Intermodulation distortion
1) IMD2 IMD2 – -112 -103 dBm Testcases see Table 7 IMD3 IMD3 – -116 -109 dBm Testcases see Table 8
Intercept point
1) IIP2 IIP2 108 117 – dBm Testcases see Table 7 IIP3 IIP3 67 70 – dBm Testcases see Table 8 1)Measured on application board, without any matching components.
Table 7: IMD2 testcases
Band Symbol In-band Blocker Blocker Blocker Blocker frequency frequency 1 power 1 frequency 2 power 2 (MHz) (MHz) (dBm) (MHz) (dBm) B1 Band 1 IMD2,high 2140 1950 20 4090 -15 B1IMD2,low 2140 1950 20 190 -15 B4 Band 4 IMD2,high 2132 1732 20 3864 -15 B4IMD2,low 2132 1732 20 400 -15 B5 Band 5 IMD2,high 881.5 836.5 20 1718 -15 B5IMD2,low 881.5 836.5 20 45 -15 B7 Band 7 IMD2,high 2655 2535 20 5190 -15 B7IMD2,low 2655 2535 20 120 -15 Datasheet 7 Revision 2.5 2021-12-21 Document Outline Titlepage 1 Features 2 Absolute maximum ratings 3 Operation ranges 4 RF characteristics 5 Application information 6 Package information
