Datasheet PMF170XP (Nexperia) - 10
| Fabricante | Nexperia |
| Descripción | 20 V, 1 A P-channel Trench MOSFET |
| Páginas / Página | 15 / 10 — Nexperia. PMF170XP. 20 V, 1 A P-channel Trench MOSFET. 11. Test … |
| Revisión | 04052017 |
| Formato / tamaño de archivo | PDF / 717 Kb |
| Idioma del documento | Inglés |
Nexperia. PMF170XP. 20 V, 1 A P-channel Trench MOSFET. 11. Test information. Fig. 17. Duty cycle definition. 12. Package outline
Línea de modelo para esta hoja de datos
Versión de texto del documento

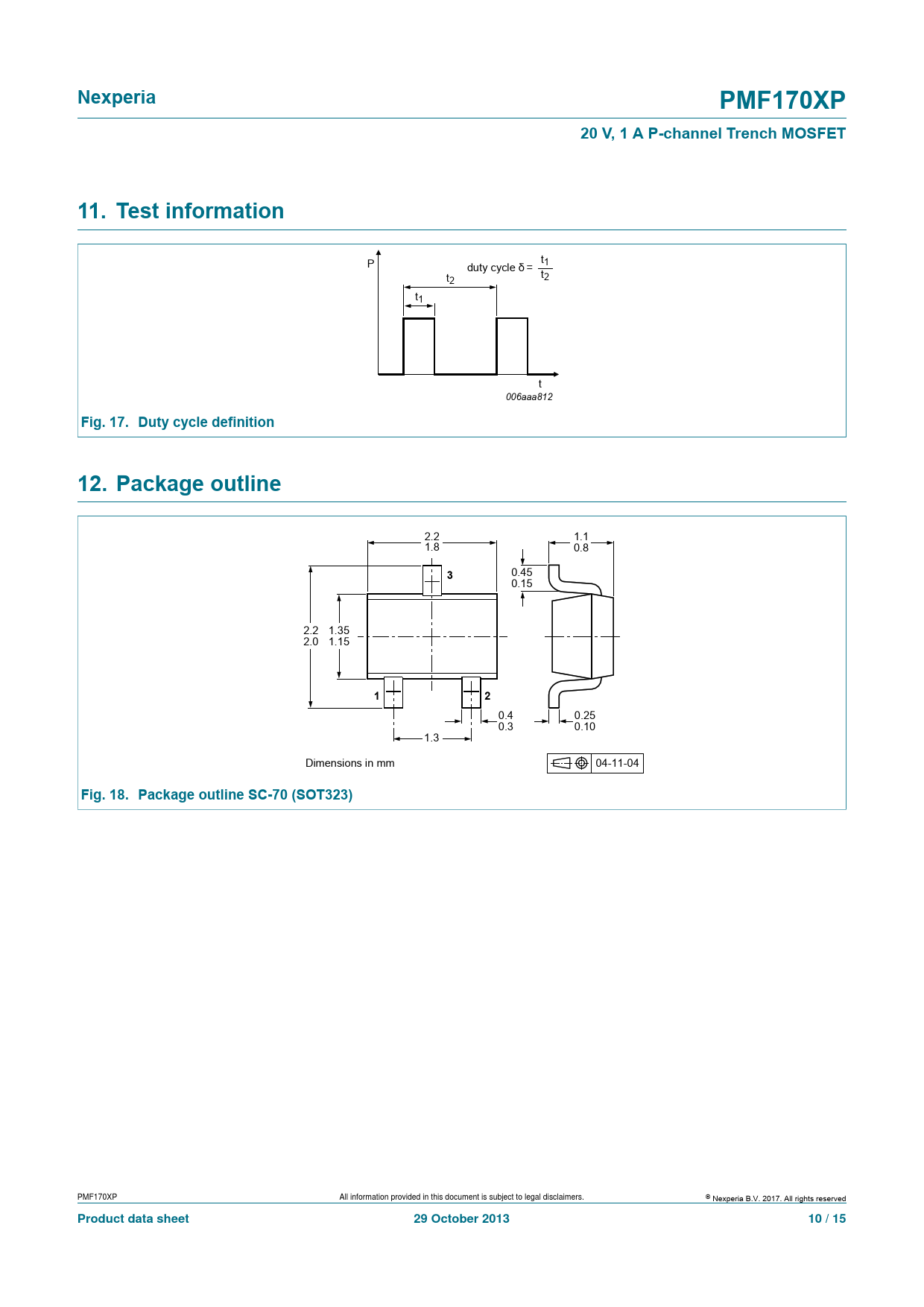

Nexperia PMF170XP 20 V, 1 A P-channel Trench MOSFET 11. Test information
t1 P duty cycle δ = t t 2 2 t1 t 006aaa812
Fig. 17. Duty cycle definition 12. Package outline
2.2 1.1 1.8 0.8 0.45
3
0.15 2.2 1.35 2.0 1.15
1 2
0.4 0.25 0.3 0.10 1.3 Dimensions in mm 04-11-04
Fig. 18. Package outline SC-70 (SOT323)
PMF170XP All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet 29 October 2013 10 / 15
