Datasheet PMF170XP (Nexperia) - 3
| Fabricante | Nexperia |
| Descripción | 20 V, 1 A P-channel Trench MOSFET |
| Páginas / Página | 15 / 3 — Nexperia. PMF170XP. 20 V, 1 A P-channel Trench MOSFET. Symbol. Parameter. … |
| Revisión | 04052017 |
| Formato / tamaño de archivo | PDF / 717 Kb |
| Idioma del documento | Inglés |
Nexperia. PMF170XP. 20 V, 1 A P-channel Trench MOSFET. Symbol. Parameter. Conditions. Min. Max. Unit. Source-drain diode
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 3

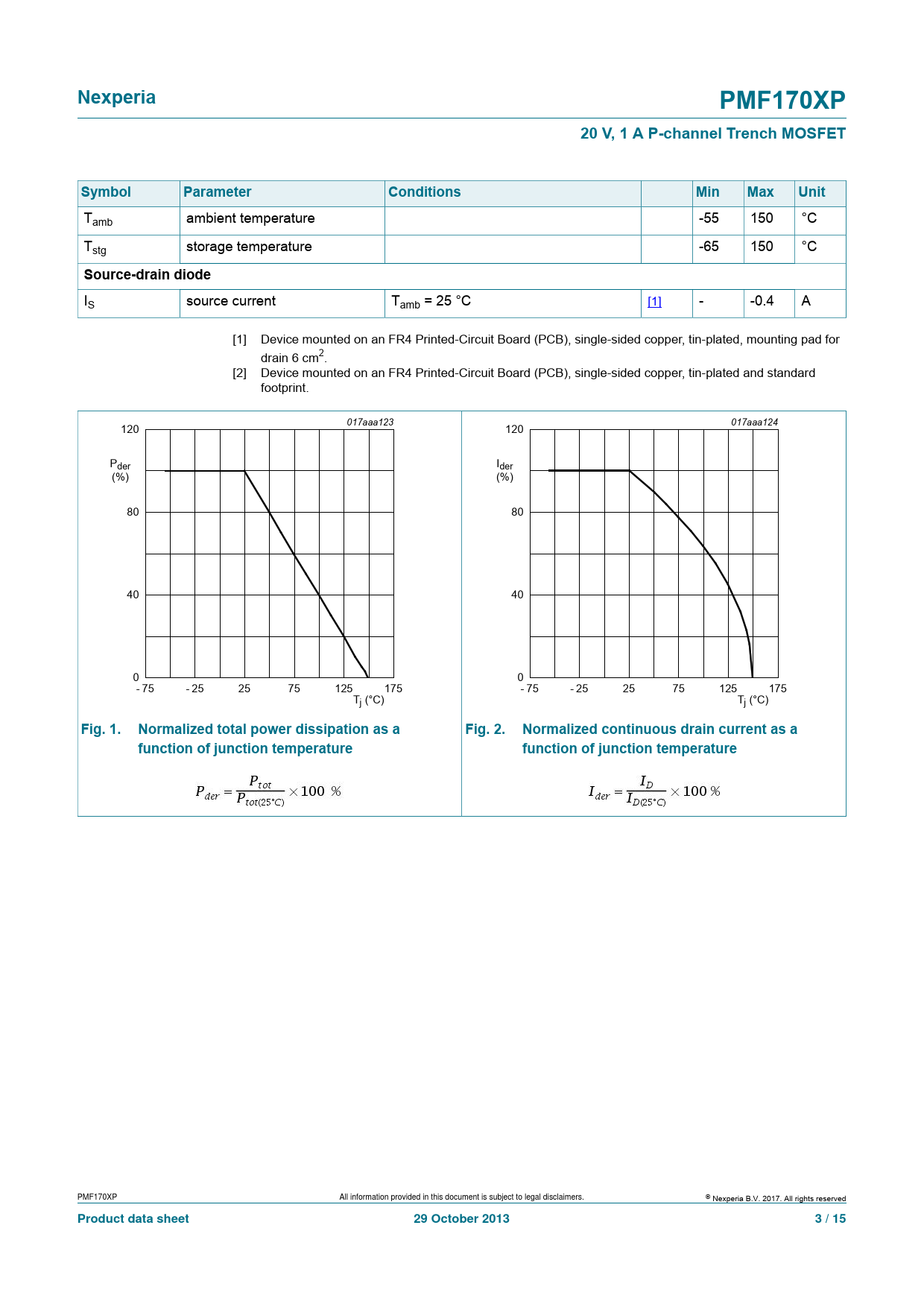

Nexperia PMF170XP 20 V, 1 A P-channel Trench MOSFET Symbol Parameter Conditions Min Max Unit
Tamb ambient temperature -55 150 °C Tstg storage temperature -65 150 °C
Source-drain diode
IS source current Tamb = 25 °C [1] - -0.4 A [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated, mounting pad for drain 6 cm2. [2] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. 017aaa123 120 017aaa124 120 Pder Ider (%) (%) 80 80 40 40 0 0 - 75 - 25 25 75 125 175 - 75 - 25 25 75 125 175 Tj (°C) Tj (°C)
Fig. 1. Normalized total power dissipation as a Fig. 2. Normalized continuous drain current as a function of junction temperature function of junction temperature
PMF170XP All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet 29 October 2013 3 / 15
