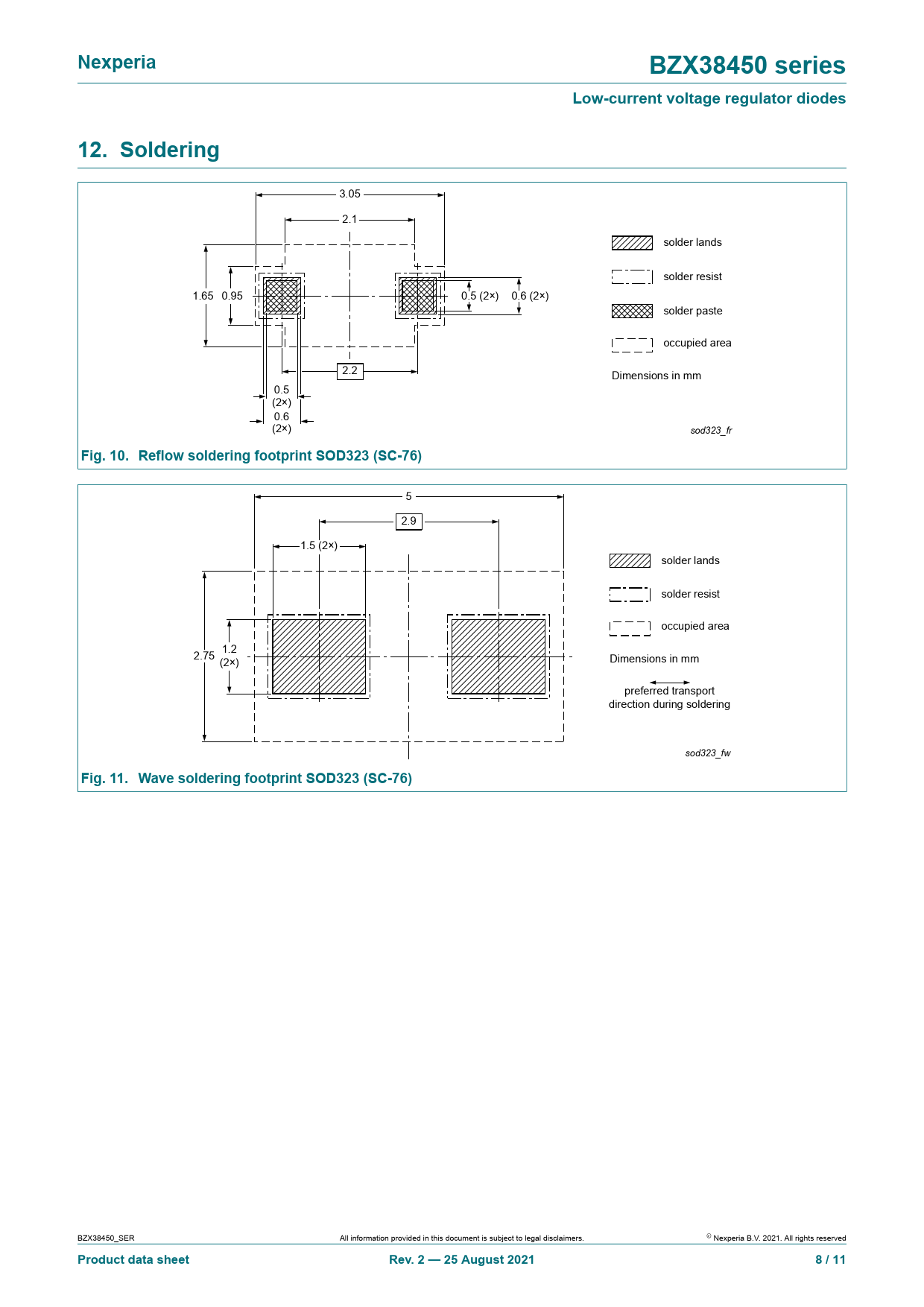

Nexperia BZX38450 series Low-current voltage regulator diodes 12. Soldering
3.05 2.1 solder lands solder resist 1.65 0.95 0.5 (2×) 0.6 (2×) solder paste occupied area 2.2 Dimensions in mm 0.5 (2×) 0.6 (2×) sod323_fr
Fig. 10. Reflow soldering footprint SOD323 (SC-76)
5 2.9 1.5 (2×) solder lands solder resist occupied area 1.2 2.75 (2×) Dimensions in mm preferred transport direction during soldering sod323_fw
Fig. 11. Wave soldering footprint SOD323 (SC-76)
