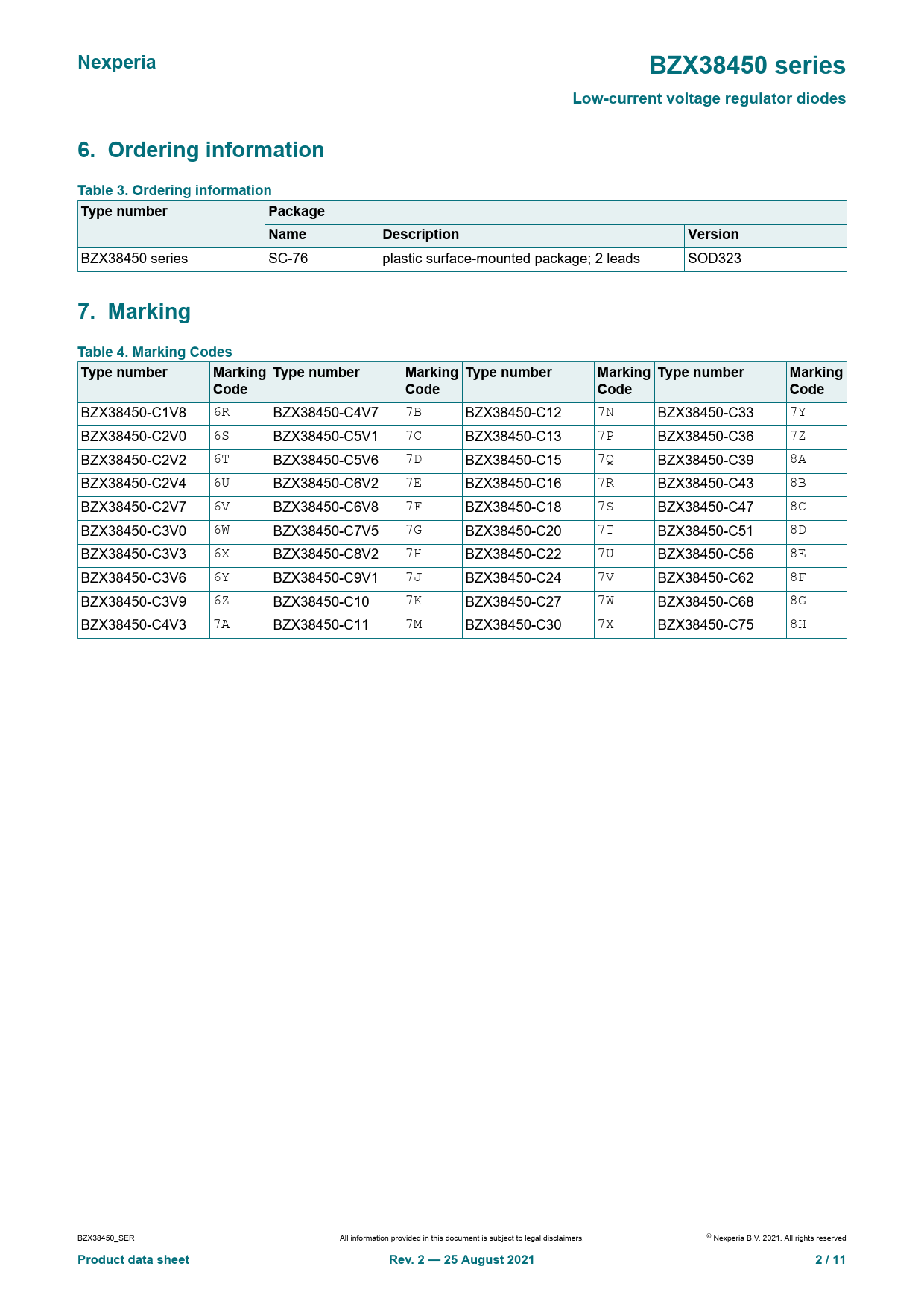

Nexperia BZX38450 series Low-current voltage regulator diodes 6. Ordering information Table 3. Ordering information Type number Package Name Description Version
BZX38450 series SC-76 plastic surface-mounted package; 2 leads SOD323
7. Marking Table 4. Marking Codes Type number Marking Type number Marking Type number Marking Type number Marking Code Code Code Code
BZX38450-C1V8 6R BZX38450-C4V7 7B BZX38450-C12 7N BZX38450-C33 7Y BZX38450-C2V0 6S BZX38450-C5V1 7C BZX38450-C13 7P BZX38450-C36 7Z BZX38450-C2V2 6T BZX38450-C5V6 7D BZX38450-C15 7Q BZX38450-C39 8A BZX38450-C2V4 6U BZX38450-C6V2 7E BZX38450-C16 7R BZX38450-C43 8B BZX38450-C2V7 6V BZX38450-C6V8 7F BZX38450-C18 7S BZX38450-C47 8C BZX38450-C3V0 6W BZX38450-C7V5 7G BZX38450-C20 7T BZX38450-C51 8D BZX38450-C3V3 6X BZX38450-C8V2 7H BZX38450-C22 7U BZX38450-C56 8E BZX38450-C3V6 6Y BZX38450-C9V1 7J BZX38450-C24 7V BZX38450-C62 8F BZX38450-C3V9 6Z BZX38450-C10 7K BZX38450-C27 7W BZX38450-C68 8G BZX38450-C4V3 7A BZX38450-C11 7M BZX38450-C30 7X BZX38450-C75 8H BZX38450_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 2 — 25 August 2021 2 / 11
