Nexperia. BZX38450 series. Low-current voltage regulator diodes. 10. Characteristics Table 7. Electrical characteristics
Línea de modelo para esta hoja de datos
- BZX38450-C10F BZX38450-C10X BZX38450-C11F BZX38450-C11X BZX38450-C12F BZX38450-C12X BZX38450-C13F BZX38450-C13X BZX38450-C15F BZX38450-C15X BZX38450-C16F BZX38450-C16X BZX38450-C18F BZX38450-C18X BZX38450-C1V8F BZX38450-C1V8X BZX38450-C20F BZX38450-C20X BZX38450-C22F BZX38450-C22X BZX38450-C24F BZX38450-C24X BZX38450-C27F BZX38450-C27X BZX38450-C2V0F BZX38450-C2V0X BZX38450-C2V2F BZX38450-C2V2X BZX38450-C2V4F BZX38450-C2V4X BZX38450-C2V7F BZX38450-C2V7X BZX38450-C30F BZX38450-C30X BZX38450-C33F BZX38450-C33X BZX38450-C36F BZX38450-C36X BZX38450-C39F BZX38450-C39X BZX38450-C3V0F BZX38450-C3V0X BZX38450-C3V3F BZX38450-C3V3X BZX38450-C3V6F BZX38450-C3V6X BZX38450-C3V9F BZX38450-C3V9X BZX38450-C43F BZX38450-C43X BZX38450-C47F BZX38450-C47X BZX38450-C4V3F BZX38450-C4V3X BZX38450-C4V7F BZX38450-C4V7X BZX38450-C51F BZX38450-C51X BZX38450-C56F BZX38450-C56X BZX38450-C5V1F BZX38450-C5V1X BZX38450-C5V6F BZX38450-C5V6X BZX38450-C62F BZX38450-C62X BZX38450-C68F BZX38450-C68X BZX38450-C6V2F BZX38450-C6V2X BZX38450-C6V8F BZX38450-C6V8X BZX38450-C75F BZX38450-C75X BZX38450-C7V5F BZX38450-C7V5X BZX38450-C8V2F BZX38450-C8V2X BZX38450-C9V1F BZX38450-C9V1X
Versión de texto del documento
link to page 4 link to page 4

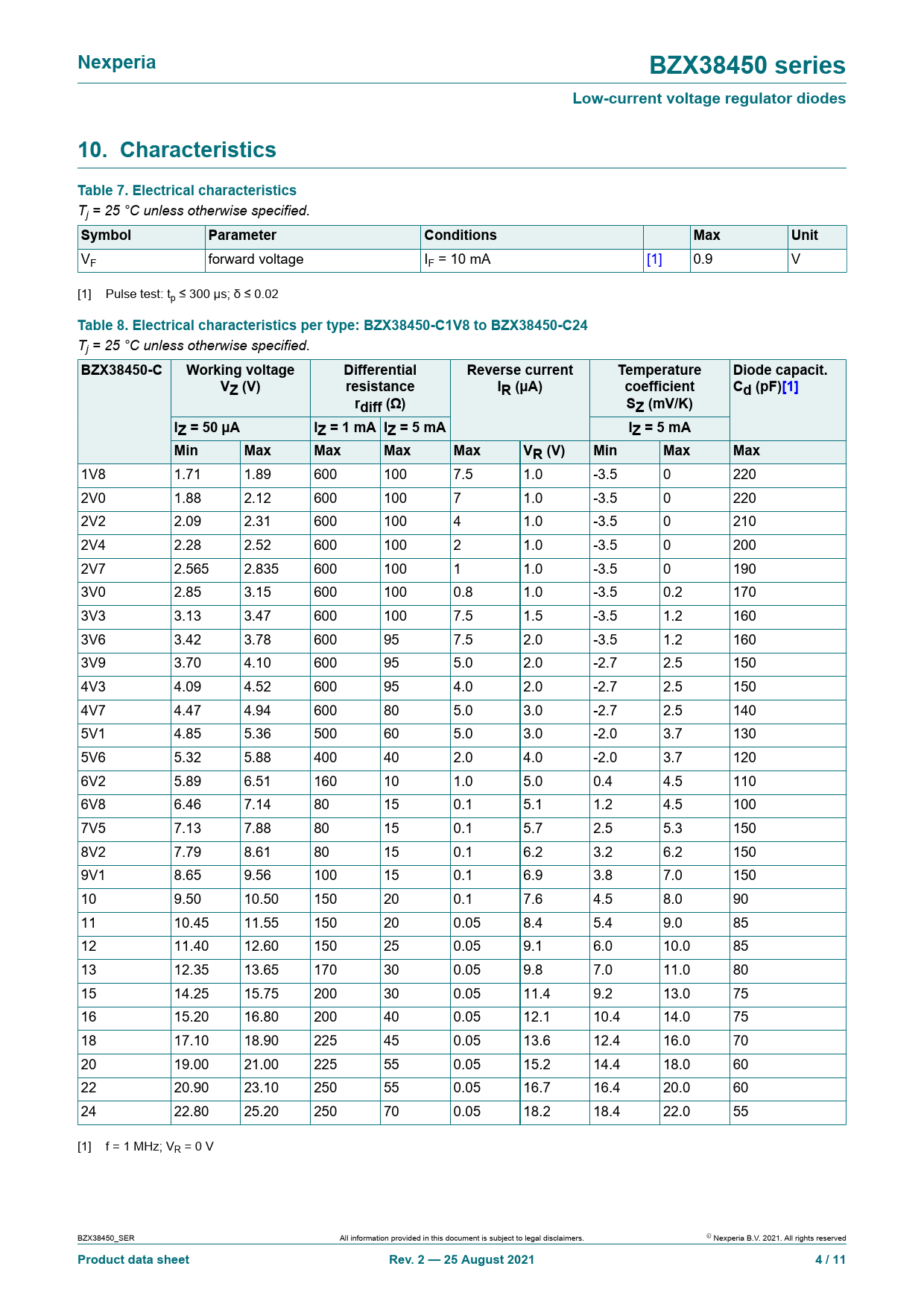

Nexperia BZX38450 series Low-current voltage regulator diodes 10. Characteristics Table 7. Electrical characteristics
Tj = 25 °C unless otherwise specified.
Symbol Parameter Conditions Max Unit
VF forward voltage IF = 10 mA [1] 0.9 V [1] Pulse test: tp ≤ 300 μs; δ ≤ 0.02
Table 8. Electrical characteristics per type: BZX38450-C1V8 to BZX38450-C24
Tj = 25 °C unless otherwise specified.
BZX38450-C Working voltage Differential Reverse current Temperature Diode capacit. VZ (V) resistance IR (µA) coefficient Cd (pF)[1] rdiff (Ω) SZ (mV/K) IZ = 50 µA IZ = 1 mA IZ = 5 mA IZ = 5 mA Min Max Max Max Max VR (V) Min Max Max
1V8 1.71 1.89 600 100 7.5 1.0 -3.5 0 220 2V0 1.88 2.12 600 100 7 1.0 -3.5 0 220 2V2 2.09 2.31 600 100 4 1.0 -3.5 0 210 2V4 2.28 2.52 600 100 2 1.0 -3.5 0 200 2V7 2.565 2.835 600 100 1 1.0 -3.5 0 190 3V0 2.85 3.15 600 100 0.8 1.0 -3.5 0.2 170 3V3 3.13 3.47 600 100 7.5 1.5 -3.5 1.2 160 3V6 3.42 3.78 600 95 7.5 2.0 -3.5 1.2 160 3V9 3.70 4.10 600 95 5.0 2.0 -2.7 2.5 150 4V3 4.09 4.52 600 95 4.0 2.0 -2.7 2.5 150 4V7 4.47 4.94 600 80 5.0 3.0 -2.7 2.5 140 5V1 4.85 5.36 500 60 5.0 3.0 -2.0 3.7 130 5V6 5.32 5.88 400 40 2.0 4.0 -2.0 3.7 120 6V2 5.89 6.51 160 10 1.0 5.0 0.4 4.5 110 6V8 6.46 7.14 80 15 0.1 5.1 1.2 4.5 100 7V5 7.13 7.88 80 15 0.1 5.7 2.5 5.3 150 8V2 7.79 8.61 80 15 0.1 6.2 3.2 6.2 150 9V1 8.65 9.56 100 15 0.1 6.9 3.8 7.0 150 10 9.50 10.50 150 20 0.1 7.6 4.5 8.0 90 11 10.45 11.55 150 20 0.05 8.4 5.4 9.0 85 12 11.40 12.60 150 25 0.05 9.1 6.0 10.0 85 13 12.35 13.65 170 30 0.05 9.8 7.0 11.0 80 15 14.25 15.75 200 30 0.05 11.4 9.2 13.0 75 16 15.20 16.80 200 40 0.05 12.1 10.4 14.0 75 18 17.10 18.90 225 45 0.05 13.6 12.4 16.0 70 20 19.00 21.00 225 55 0.05 15.2 14.4 18.0 60 22 20.90 23.10 250 55 0.05 16.7 16.4 20.0 60 24 22.80 25.20 250 70 0.05 18.2 18.4 22.0 55 [1] f = 1 MHz; VR = 0 V BZX38450_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 2 — 25 August 2021 4 / 11
