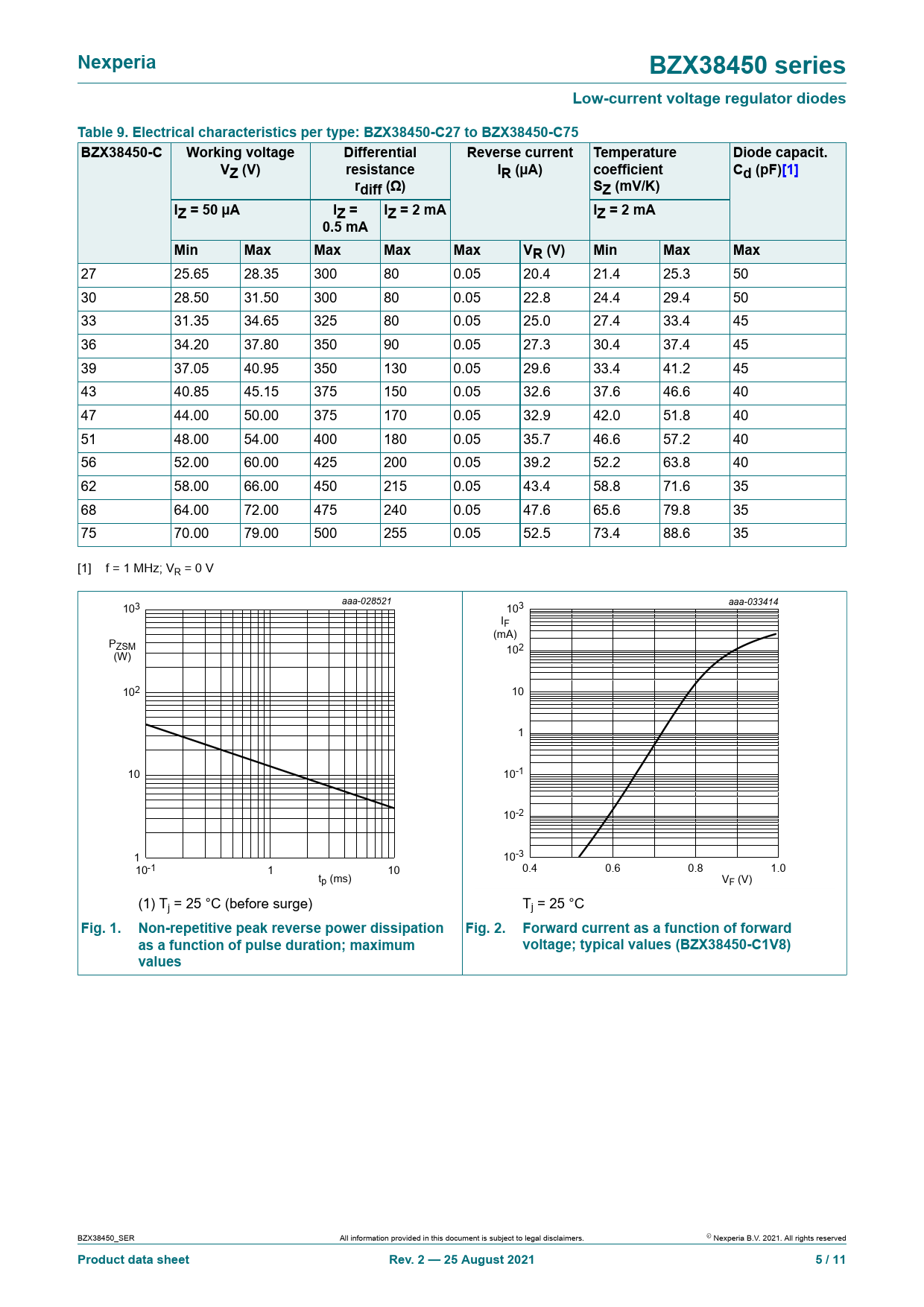

Nexperia BZX38450 series Low-current voltage regulator diodes Table 9. Electrical characteristics per type: BZX38450-C27 to BZX38450-C75 BZX38450-C Working voltage Differential Reverse current Temperature Diode capacit. VZ (V) resistance IR (µA) coefficient Cd (pF)[1] rdiff (Ω) SZ (mV/K) IZ = 50 µA IZ = IZ = 2 mA IZ = 2 mA 0.5 mA Min Max Max Max Max VR (V) Min Max Max
27 25.65 28.35 300 80 0.05 20.4 21.4 25.3 50 30 28.50 31.50 300 80 0.05 22.8 24.4 29.4 50 33 31.35 34.65 325 80 0.05 25.0 27.4 33.4 45 36 34.20 37.80 350 90 0.05 27.3 30.4 37.4 45 39 37.05 40.95 350 130 0.05 29.6 33.4 41.2 45 43 40.85 45.15 375 150 0.05 32.6 37.6 46.6 40 47 44.00 50.00 375 170 0.05 32.9 42.0 51.8 40 51 48.00 54.00 400 180 0.05 35.7 46.6 57.2 40 56 52.00 60.00 425 200 0.05 39.2 52.2 63.8 40 62 58.00 66.00 450 215 0.05 43.4 58.8 71.6 35 68 64.00 72.00 475 240 0.05 47.6 65.6 79.8 35 75 70.00 79.00 500 255 0.05 52.5 73.4 88.6 35 [1] f = 1 MHz; VR = 0 V aaa-028521 103 aaa-033414 103 IF (mA) PZSM (W) 102 102 10 1 10 10-1 10-2 1 10-3 10-1 1 10 0.4 0.6 0.8 1.0 tp (ms) VF (V) (1) Tj = 25 °C (before surge) Tj = 25 °C
Fig. 1. Non-repetitive peak reverse power dissipation Fig. 2. Forward current as a function of forward as a function of pulse duration; maximum voltage; typical values (BZX38450-C1V8) values
BZX38450_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 2 — 25 August 2021 5 / 11
