Nexperia. BZX38450 series. Low-current voltage regulator diodes. Fig. 7. Reverse current as a function of reverse
Línea de modelo para esta hoja de datos
- BZX38450-C10F BZX38450-C10X BZX38450-C11F BZX38450-C11X BZX38450-C12F BZX38450-C12X BZX38450-C13F BZX38450-C13X BZX38450-C15F BZX38450-C15X BZX38450-C16F BZX38450-C16X BZX38450-C18F BZX38450-C18X BZX38450-C1V8F BZX38450-C1V8X BZX38450-C20F BZX38450-C20X BZX38450-C22F BZX38450-C22X BZX38450-C24F BZX38450-C24X BZX38450-C27F BZX38450-C27X BZX38450-C2V0F BZX38450-C2V0X BZX38450-C2V2F BZX38450-C2V2X BZX38450-C2V4F BZX38450-C2V4X BZX38450-C2V7F BZX38450-C2V7X BZX38450-C30F BZX38450-C30X BZX38450-C33F BZX38450-C33X BZX38450-C36F BZX38450-C36X BZX38450-C39F BZX38450-C39X BZX38450-C3V0F BZX38450-C3V0X BZX38450-C3V3F BZX38450-C3V3X BZX38450-C3V6F BZX38450-C3V6X BZX38450-C3V9F BZX38450-C3V9X BZX38450-C43F BZX38450-C43X BZX38450-C47F BZX38450-C47X BZX38450-C4V3F BZX38450-C4V3X BZX38450-C4V7F BZX38450-C4V7X BZX38450-C51F BZX38450-C51X BZX38450-C56F BZX38450-C56X BZX38450-C5V1F BZX38450-C5V1X BZX38450-C5V6F BZX38450-C5V6X BZX38450-C62F BZX38450-C62X BZX38450-C68F BZX38450-C68X BZX38450-C6V2F BZX38450-C6V2X BZX38450-C6V8F BZX38450-C6V8X BZX38450-C75F BZX38450-C75X BZX38450-C7V5F BZX38450-C7V5X BZX38450-C8V2F BZX38450-C8V2X BZX38450-C9V1F BZX38450-C9V1X
Versión de texto del documento

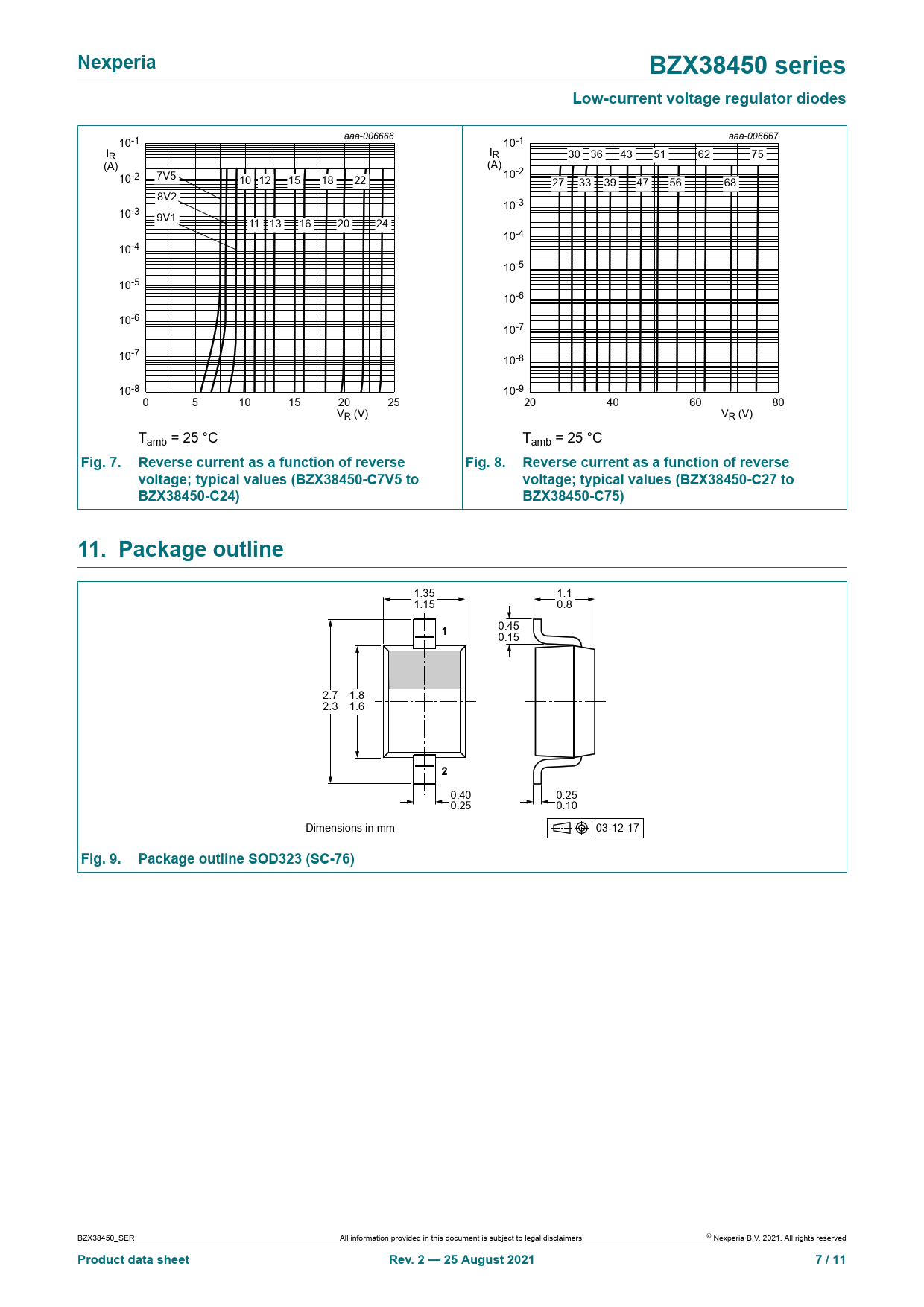

Nexperia BZX38450 series Low-current voltage regulator diodes
aaa-006666 10-1 aaa-006667 10-1 IR IR 30 36 43 51 62 75 (A) (A) 10-2 7V5 10 12 15 18 22 10-2 27 33 39 47 56 68 8V2 10-3 10-3 9V1 11 13 16 20 24 10-4 10-4 10-5 10-5 10-6 10-6 10-7 10-7 10-8 10-8 10-9 0 5 10 15 20 25 20 40 60 80 VR (V) VR (V) Tamb = 25 °C Tamb = 25 °C
Fig. 7. Reverse current as a function of reverse Fig. 8. Reverse current as a function of reverse voltage; typical values (BZX38450-C7V5 to voltage; typical values (BZX38450-C27 to BZX38450-C24) BZX38450-C75) 11. Package outline
1.35 1.1 1.15 0.8 0.45
1
0.15 2.7 1.8 2.3 1.6
2
0.40 0.25 0.25 0.10 Dimensions in mm 03-12-17
Fig. 9. Package outline SOD323 (SC-76)
BZX38450_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 2 — 25 August 2021 7 / 11
