Datasheet HK19F (Ever-way) - 3

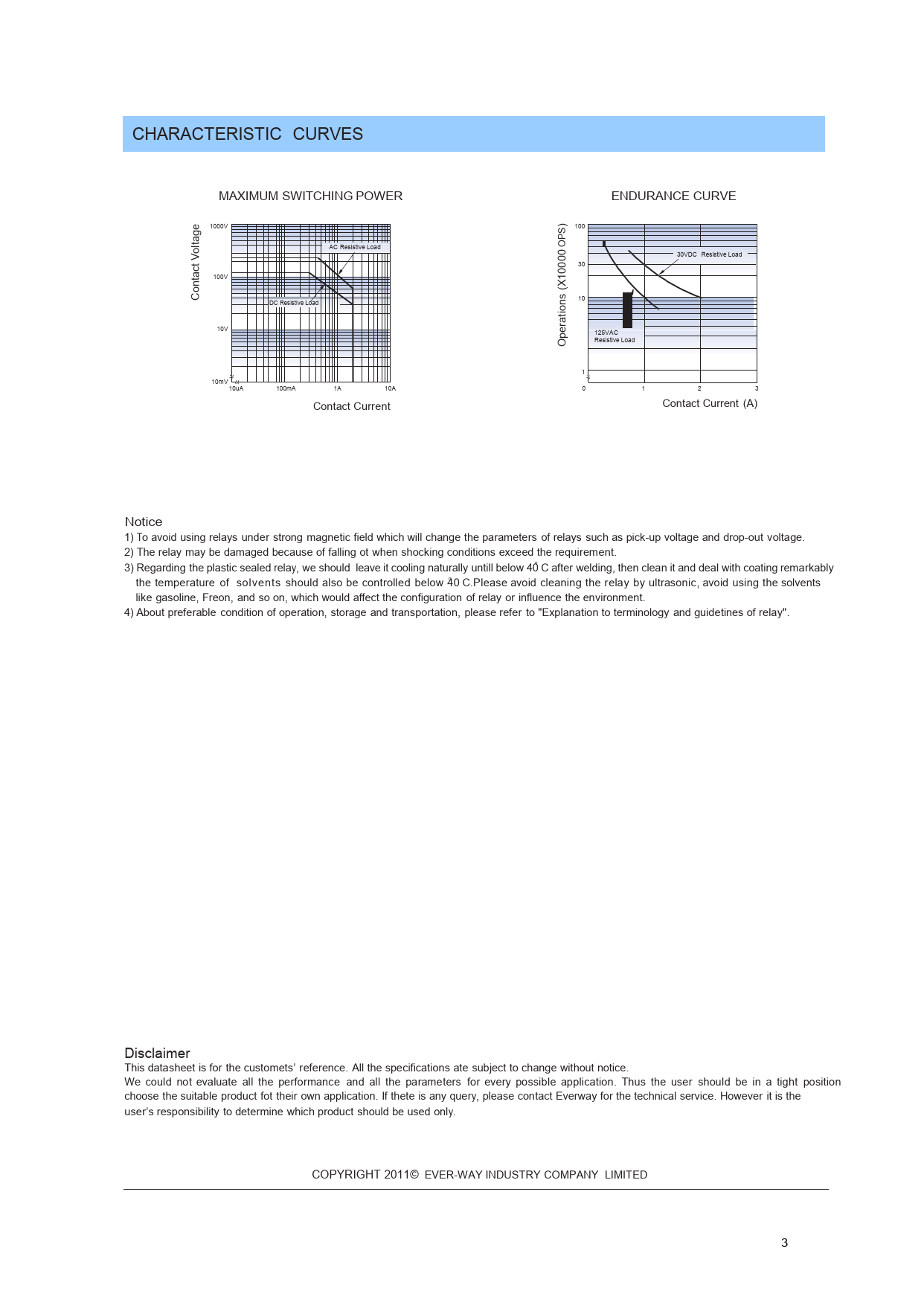

CHARACTERISTIC CURVES MAXIMUM SWITCHING POWER ENDURANCE CURVE 1000V ) 100 e g S P lta O o AC Resistive Load V 0 0 30VDC Resistive Load 0 30 ct 0 100V ta 1 n o (X C s 10 DC Resistive Load n tio ra 10V e p 125VAC O Resistive Load 1 10mV 10uA 100mA 1A 10A 0 1 2 3 Contact Current (A) Contact Current Notice 1) To avoid using relays under strong magnetic field which will change the parameters of relays such as pick-up voltage and drop-out voltage. 2) The relay may be damaged because of falling ot when shocking conditions exceed the requirement. o 3) Regarding the plastic sealed relay, we should leave it cooling naturally untill below 40 C after welding, then clean it and deal with coating remarkably o the temperature of solvents should also be controlled below 40 C.Please avoid cleaning the relay by ultrasonic, avoid using the solvents like gasoline, Freon, and so on, which would affect the configuration of relay or influence the environment. 4) About preferable condition of operation, storage and transportation, please refer to "Explanation to terminology and guidetines of relay". Disclaimer This datasheet is for the customets’ reference. All the specifications ate subject to change without notice. We could not evaluate all the performance and all the parameters for every possible application. Thus the user should be in a tight position choose the suitable product fot their own application. If thete is any query, please contact Everway for the technical service. However it is the user’s responsibility to determine which product should be used only. COPYRIGHT 2011© EVER-WAY INDUSTRY COMPANY LIMITED 3
