H K 19. 1 F
Línea de modelo para esta hoja de datos
- HK19F-DC12V-FDG HK19F-DC12V-FG HK19F-DC12V-FHG HK19F-DC12V-FLG HK19F-DC12V-SDG HK19F-DC12V-SG HK19F-DC12V-SHG HK19F-DC12V-SLG HK19F-DC24V-FDG HK19F-DC24V-FG HK19F-DC24V-FHG HK19F-DC24V-FLG HK19F-DC24V-SDG HK19F-DC24V-SG HK19F-DC24V-SHG HK19F-DC24V-SLG HK19F-DC3V-FDG HK19F-DC3V-FG HK19F-DC3V-FHG HK19F-DC3V-FLG HK19F-DC3V-SDG HK19F-DC3V-SG HK19F-DC3V-SHG HK19F-DC3V-SLG HK19F-DC5V-FDG HK19F-DC5V-FG HK19F-DC5V-FHG HK19F-DC5V-FLG HK19F-DC5V-SDG HK19F-DC5V-SG HK19F-DC5V-SHG HK19F-DC5V-SLG HK19F-DC6V-FDG HK19F-DC6V-FG HK19F-DC6V-FHG HK19F-DC6V-FLG HK19F-DC6V-SDG HK19F-DC6V-SG HK19F-DC6V-SHG HK19F-DC6V-SLG HK19F-DC9V-FDG HK19F-DC9V-FG HK19F-DC9V-FHG HK19F-DC9V-FLG HK19F-DC9V-SDG HK19F-DC9V-SG HK19F-DC9V-SHG HK19F-DC9V-SLG
Versión de texto del documento
H K 19 1 F

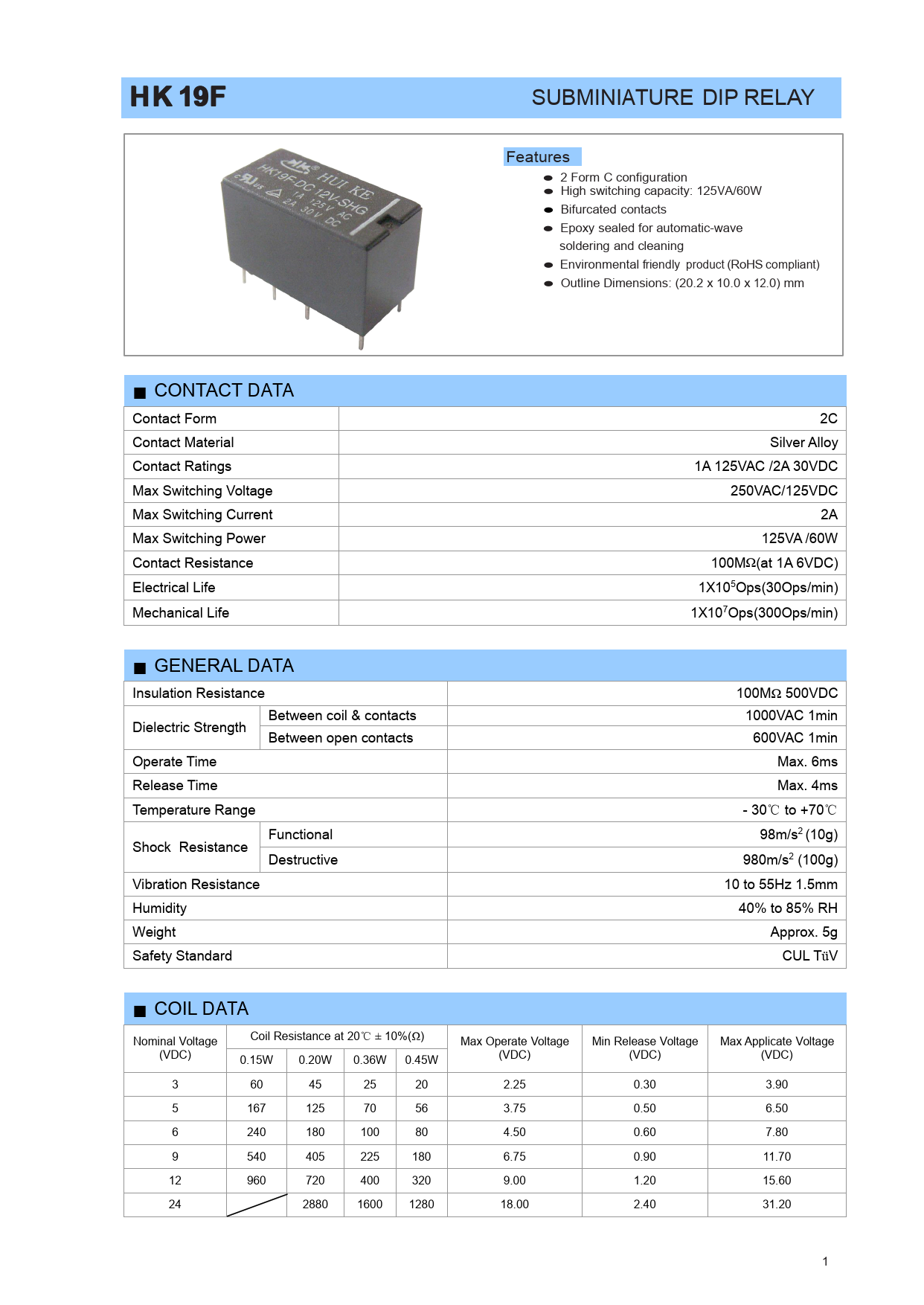

SUBMINIATURE DIP RELAY Features ● 2 Form C configuration ● High switching capacity: 125VA/60W ● Bifurcated contacts ● Epoxy sealed for automatic-wave soldering and cleaning ● Environmental friendly product (RoHS compliant) ● Outline Dimensions: (20.2 x 10.0 x 12.0) mm ■ CONTACT DATA Contact Form 2C Contact Material Silver Alloy Contact Ratings 1A 125VAC /2A 30VDC Max Switching Voltage 250VAC/125VDC Max Switching Current 2A Max Switching Power 125VA /60W Contact Resistance 100MΩ(at 1A 6VDC) Electrical Life 1X105Ops(30Ops/min) Mechanical Life 1X107Ops(300Ops/min) ■ GENERAL DATA Insulation Resistance 100MΩ 500VDC Between coil & contacts 1000VAC 1min Dielectric Strength Between open contacts 600VAC 1min Operate Time Max. 6ms Release Time Max. 4ms Temperature Range - 30℃ to +70℃ Functional 98m/s2 (10g) Shock Resistance Destructive 980m/s2 (100g) Vibration Resistance 10 to 55Hz 1.5mm Humidity 40% to 85% RH Weight Approx. 5g Safety Standard CUL TüV ■ COIL DATA Nominal Voltage Coil Resistance at 20℃ ± 10%(Ω) Max Operate Voltage Min Release Voltage Max Applicate Voltage (VDC) (VDC) (VDC) (VDC) 0.15W 0.20W 0.36W 0.45W 3 60 45 25 20 2.25 0.30 3.90 5 167 125 70 56 3.75 0.50 6.50 6 240 180 100 80 4.50 0.60 7.80 9 540 405 225 180 6.75 0.90 11.70 12 960 720 400 320 9.00 1.20 15.60 24 2880 1600 1280 18.00 2.40 31.20 1
