Datasheet HK19F (Ever-way) - 2

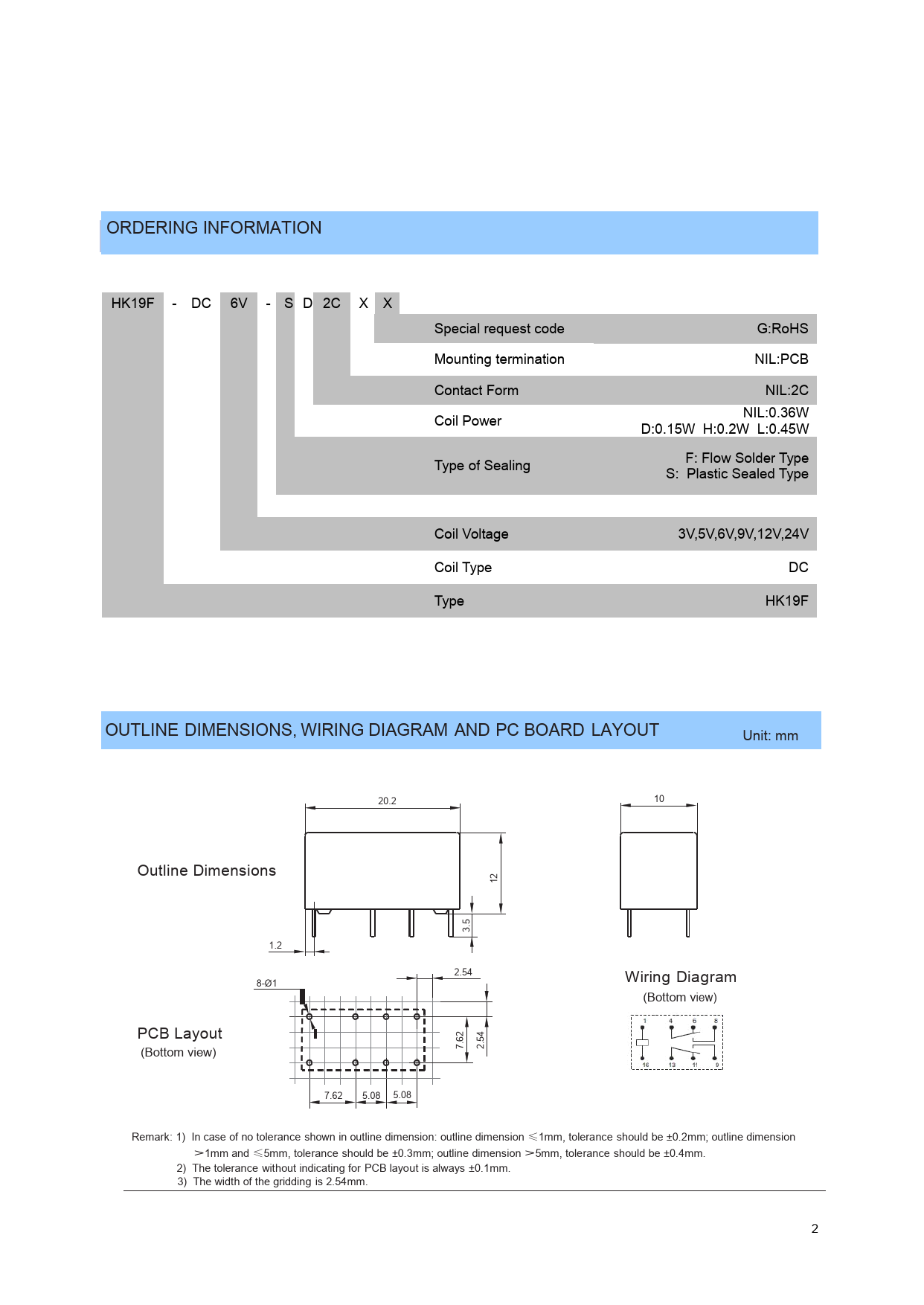

ORDERING INFORMATION HK19F - DC 6V - S D 2C X X Special request code G:RoHS Mounting termination NIL:PCB Contact Form NIL:2C NIL:0.36W Coil Power D:0.15W H:0.2W L:0.45W F: Flow Solder Type Type of Sealing S: Plastic Sealed Type Coil Voltage 3V,5V,6V,9V,12V,24V Coil Type DC Type HK19F OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT Unit: mm 10 20.2 Outline Dimensions 2 1 .5 3 1.2 2.54 Wiring Diagram 8-Ø1 (Bottom view) PCB Layout 2 4 .6 .5 7 2 (Bottom view) 7.62 5.08 5.08 Remark: 1) In case of no tolerance shown in outline dimension: outline dimension ≤1mm, tolerance should be ±0.2mm; outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm. 2) The tolerance without indicating for PCB layout is always ±0.1mm. 3) The width of the gridding is 2.54mm. 2
