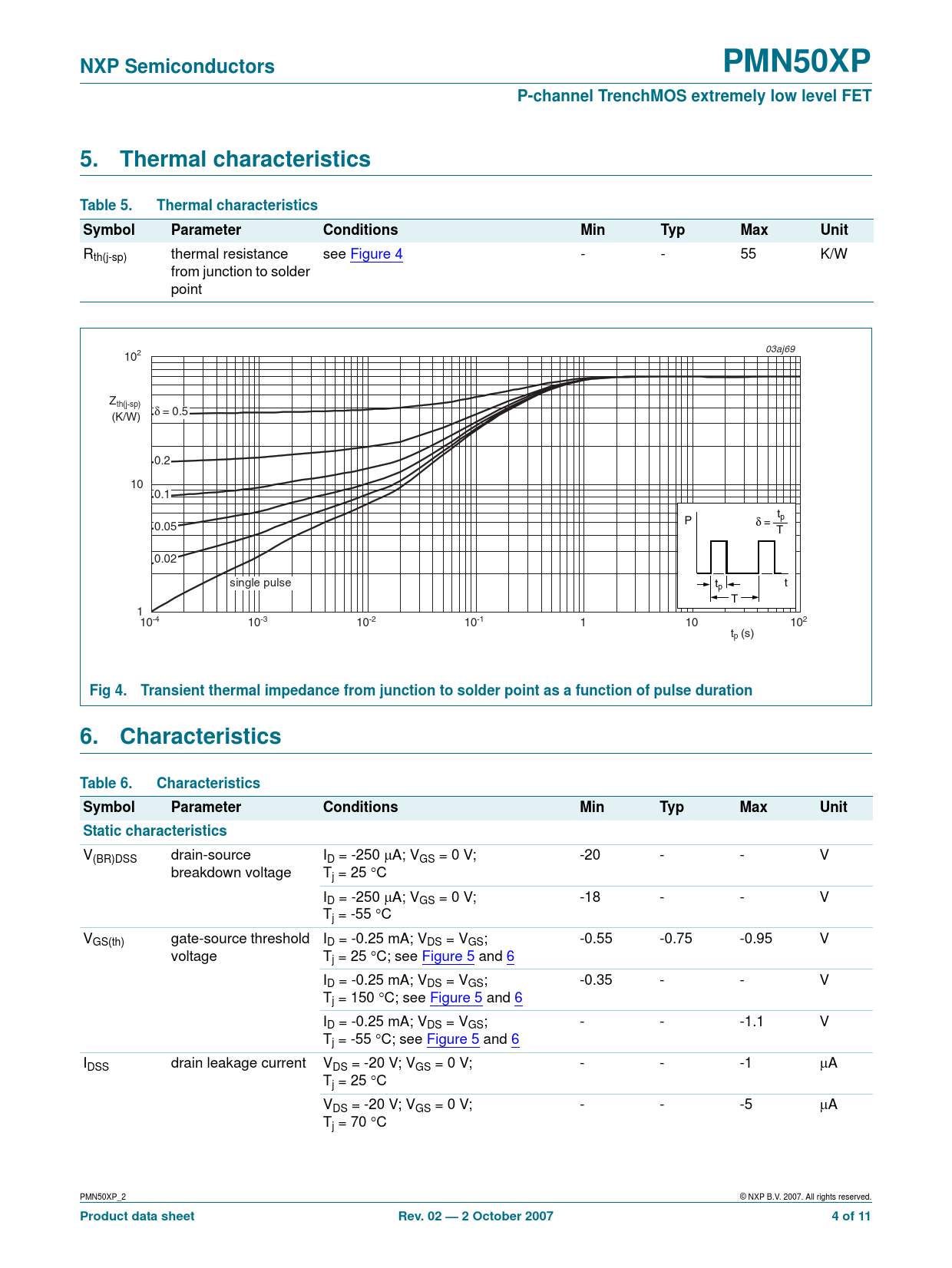

NXP Semiconductors PMN50XP P-channel TrenchMOS extremely low level FET 5. Thermal characteristics Table 5. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-sp) thermal resistance see Figure 4 - - 55 K/W from junction to solder point 03aj69 102 Zth(j-sp) δ (K/W) = 0.5 0.2 10 0.1 t P p 0.05 δ = T 0.02 single pulse tp t T 1 10-4 10-3 10-2 10-1 1 10 102 tp (s)
Fig 4. Transient thermal impedance from junction to solder point as a function of pulse duration 6. Characteristics Table 6. Characteristics Symbol Parameter Conditions Min Typ Max Unit Static characteristics
V(BR)DSS drain-source ID = -250 μA; VGS = 0 V; -20 - - V breakdown voltage Tj = 25 °C ID = -250 μA; VGS = 0 V; -18 - - V Tj = -55 °C VGS(th) gate-source threshold ID = -0.25 mA; VDS = VGS; -0.55 -0.75 -0.95 V voltage Tj = 25 °C; see Figure 5 and 6 ID = -0.25 mA; VDS = VGS; -0.35 - - V Tj = 150 °C; see Figure 5 and 6 ID = -0.25 mA; VDS = VGS; - - -1.1 V Tj = -55 °C; see Figure 5 and 6 IDSS drain leakage current VDS = -20 V; VGS = 0 V; - - -1 μA Tj = 25 °C VDS = -20 V; VGS = 0 V; - - -5 μA Tj = 70 °C PMN50XP_2 © NXP B.V. 2007. All rights reserved.
Product data sheet Rev. 02 — 2 October 2007 4 of 11
