NXP Semiconductors. PMN50XP. P-channel TrenchMOS extremely low level FET. Table 6. Characteristics. Symbol. Parameter. Conditions. Min
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 6 link to page 6 link to page 6 link to page 6 link to page 6 link to page 6 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7

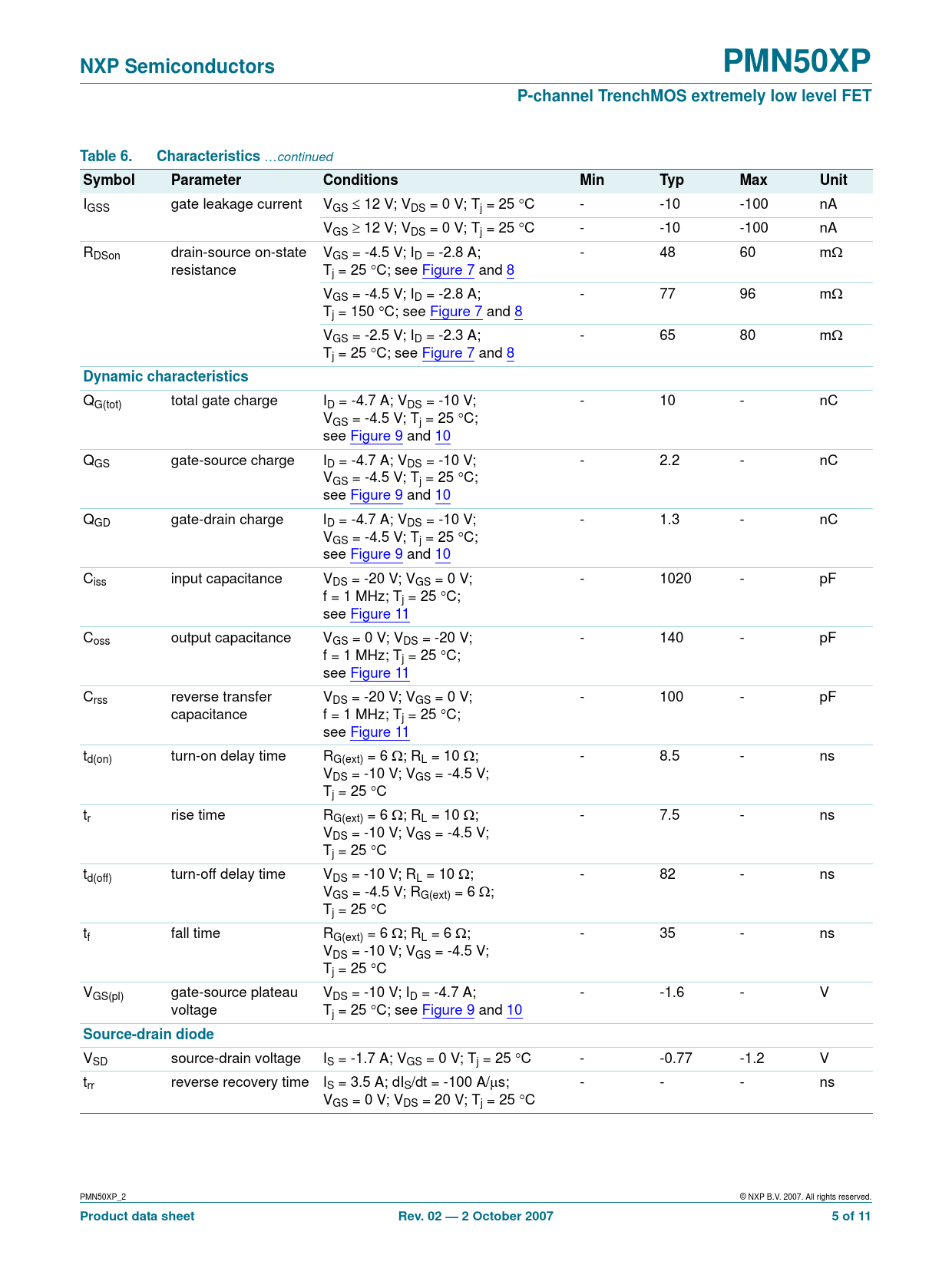

NXP Semiconductors PMN50XP P-channel TrenchMOS extremely low level FET Table 6. Characteristics
…continued
Symbol Parameter Conditions Min Typ Max Unit
I ≤ GSS gate leakage current VGS 12 V; VDS = 0 V; Tj = 25 °C - -10 -100 nA V ≥ GS 12 V; VDS = 0 V; Tj = 25 °C - -10 -100 nA RDSon drain-source on-state VGS = -4.5 V; ID = -2.8 A; - 48 60 mΩ resistance Tj = 25 °C; see Figure 7 and 8 VGS = -4.5 V; ID = -2.8 A; - 77 96 mΩ Tj = 150 °C; see Figure 7 and 8 VGS = -2.5 V; ID = -2.3 A; - 65 80 mΩ Tj = 25 °C; see Figure 7 and 8
Dynamic characteristics
QG(tot) total gate charge ID = -4.7 A; VDS = -10 V; - 10 - nC VGS = -4.5 V; Tj = 25 °C; see Figure 9 and 10 QGS gate-source charge ID = -4.7 A; VDS = -10 V; - 2.2 - nC VGS = -4.5 V; Tj = 25 °C; see Figure 9 and 10 QGD gate-drain charge ID = -4.7 A; VDS = -10 V; - 1.3 - nC VGS = -4.5 V; Tj = 25 °C; see Figure 9 and 10 Ciss input capacitance VDS = -20 V; VGS = 0 V; - 1020 - pF f = 1 MHz; Tj = 25 °C; see Figure 11 Coss output capacitance VGS = 0 V; VDS = -20 V; - 140 - pF f = 1 MHz; Tj = 25 °C; see Figure 11 Crss reverse transfer VDS = -20 V; VGS = 0 V; - 100 - pF capacitance f = 1 MHz; Tj = 25 °C; see Figure 11 td(on) turn-on delay time RG(ext) = 6 Ω; RL = 10 Ω; - 8.5 - ns VDS = -10 V; VGS = -4.5 V; Tj = 25 °C tr rise time RG(ext) = 6 Ω; RL = 10 Ω; - 7.5 - ns VDS = -10 V; VGS = -4.5 V; Tj = 25 °C td(off) turn-off delay time VDS = -10 V; RL = 10 Ω; - 82 - ns VGS = -4.5 V; RG(ext) = 6 Ω; Tj = 25 °C tf fall time RG(ext) = 6 Ω; RL = 6 Ω; - 35 - ns VDS = -10 V; VGS = -4.5 V; Tj = 25 °C VGS(pl) gate-source plateau VDS = -10 V; ID = -4.7 A; - -1.6 - V voltage Tj = 25 °C; see Figure 9 and 10
Source-drain diode
VSD source-drain voltage IS = -1.7 A; VGS = 0 V; Tj = 25 °C - -0.77 -1.2 V trr reverse recovery time IS = 3.5 A; dIS/dt = -100 A/μs; - - - ns VGS = 0 V; VDS = 20 V; Tj = 25 °C PMN50XP_2 © NXP B.V. 2007. All rights reserved.
Product data sheet Rev. 02 — 2 October 2007 5 of 11
