NXP Semiconductors PMN50XP P-channel TrenchMOS extremely low level FET
03aa25 03aa17 120 120 Ider Pder (%) (%) 80 80 40 40 0 0 0 50 100 150 200 0 50 100 150 200 Tsp (°C) Tsp (°C) I P D tot I = × 100 % P = × 100 % d er I d er P D(25°C) tot(25°C)

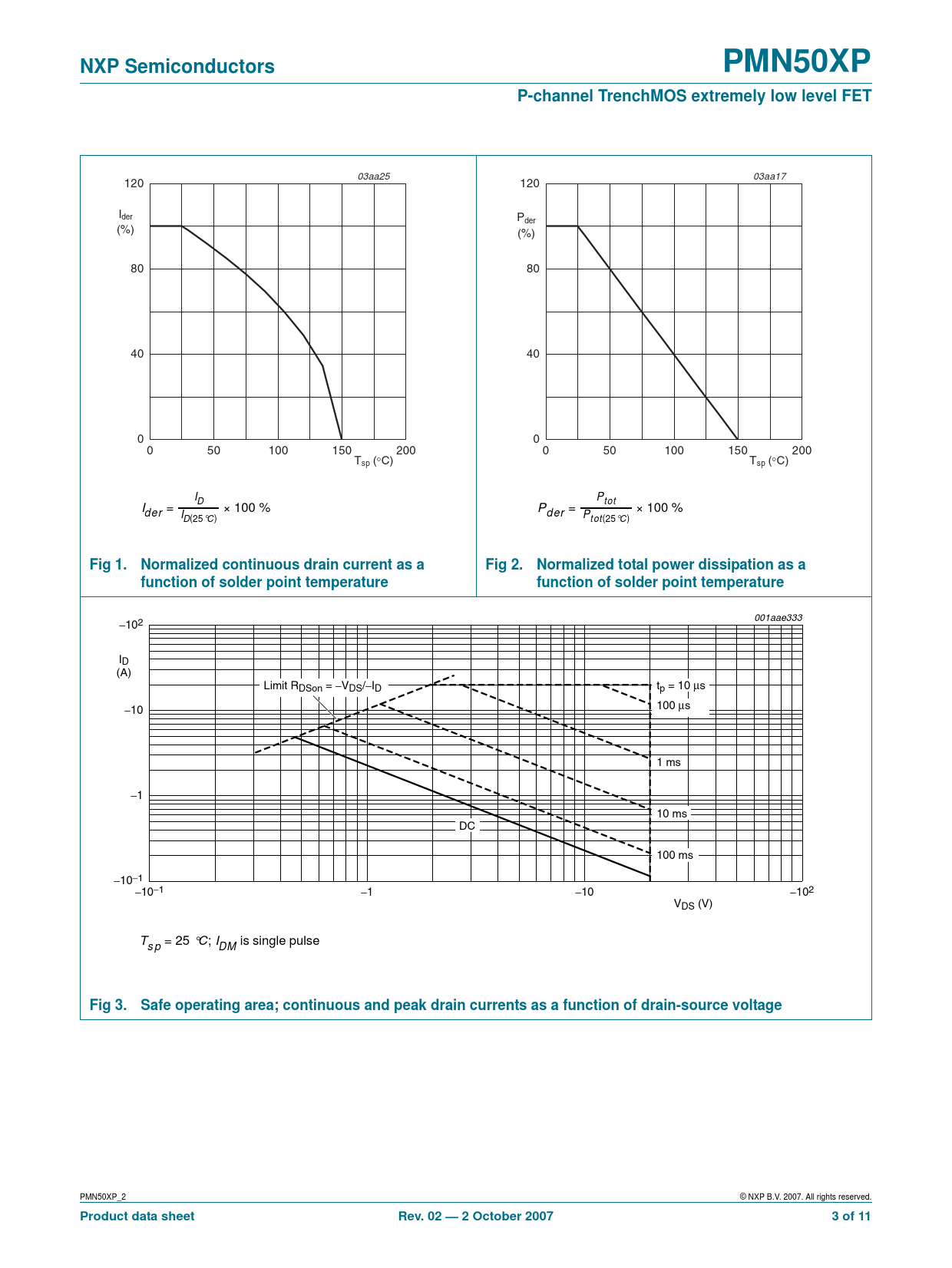

Fig 1. Normalized continuous drain current as a Fig 2. Normalized total power dissipation as a function of solder point temperature function of solder point temperature
001aae333 −102 ID (A) Limit R t DSon = −VDS/−ID p = 10 μs −10 100 μs 1 ms −1 10 ms DC 100 ms −10−1 −10−1 −1 −102 −10 VDS (V) T = 25 °C; I is single pulse s p DM
Fig 3. Safe operating area; continuous and peak drain currents as a function of drain-source voltage
