Data Sheet. HMC8500PM5E. ABSOLUTE MAXIMUM RATINGS Table 4. THERMAL RESISTANCE. Parameter1. Rating. Table 5. Thermal Resistance
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 6 link to page 6 link to page 17

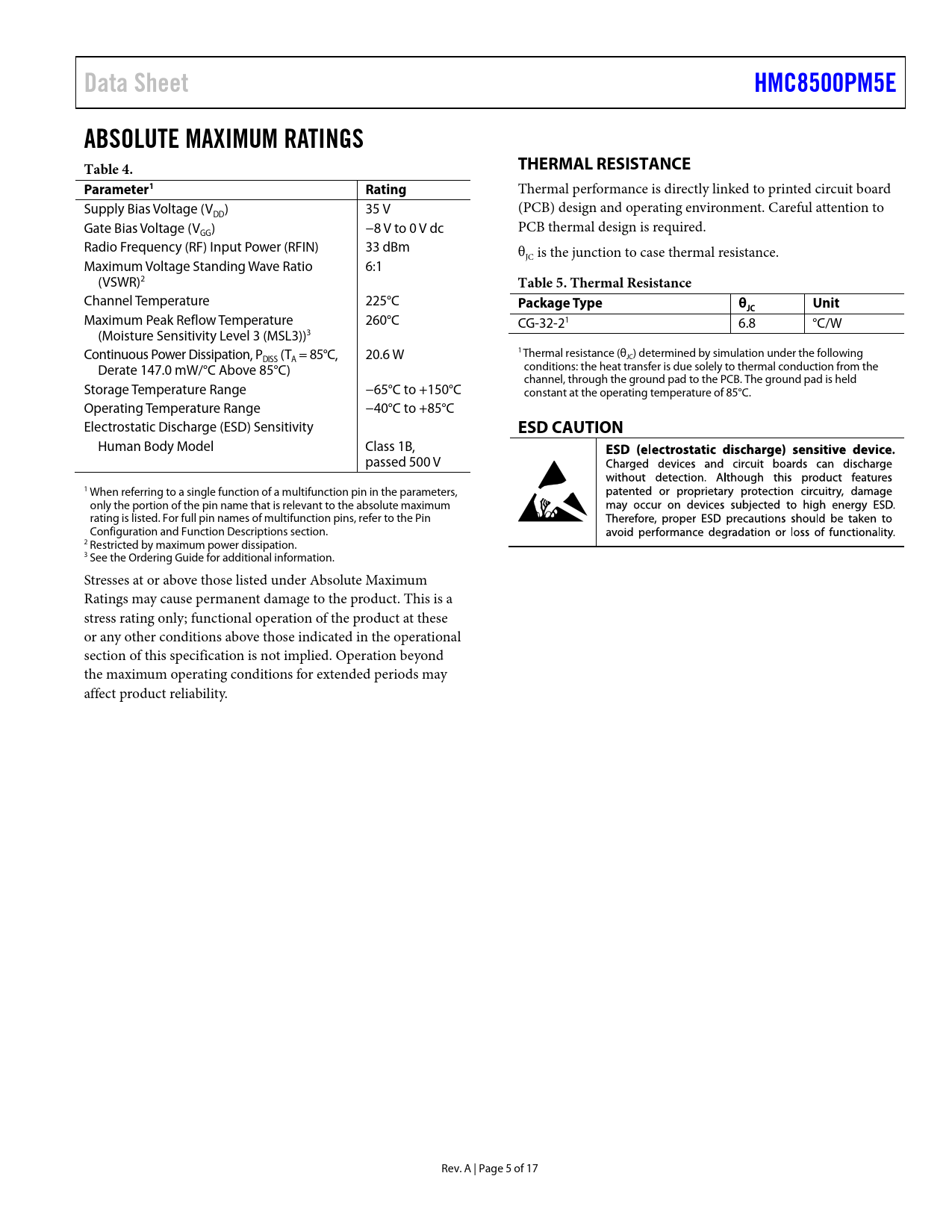

Data Sheet HMC8500PM5E ABSOLUTE MAXIMUM RATINGS Table 4. THERMAL RESISTANCE Parameter1 Rating
Thermal performance is directly linked to printed circuit board Supply Bias Voltage (V ) 35 V (PCB) design and operating environment. Careful attention to DD Gate Bias Voltage (V ) −8 V to 0 V dc PCB thermal design is required. GG Radio Frequency (RF) Input Power (RFIN) 33 dBm θJC is the junction to case thermal resistance. Maximum Voltage Standing Wave Ratio 6:1 (VSWR)2
Table 5. Thermal Resistance
Channel Temperature 225°C
Package Type θ Unit JC
Maximum Peak Reflow Temperature 260°C CG-32-21 6.8 °C/W (Moisture Sensitivity Level 3 (MSL3))3 Continuous Power Dissipation, P (T = 85°C, 20.6 W 1 Thermal resistance (θ DISS A JC) determined by simulation under the following Derate 147.0 mW/°C Above 85°C) conditions: the heat transfer is due solely to thermal conduction from the channel, through the ground pad to the PCB. The ground pad is held Storage Temperature Range −65°C to +150°C constant at the operating temperature of 85°C. Operating Temperature Range −40°C to +85°C Electrostatic Discharge (ESD) Sensitivity
ESD CAUTION
Human Body Model Class 1B, passed 500 V 1 When referring to a single function of a multifunction pin in the parameters, only the portion of the pin name that is relevant to the absolute maximum rating is listed. For full pin names of multifunction pins, refer to the Pin Configuration and Function Descriptions section. 2 Restricted by maximum power dissipation. 3 See the Ordering Guide for additional information. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. A | Page 5 of 17 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Electrical Specifications Total Supply Current by VDD Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Evaluation Board Outline Dimensions Ordering Guide
