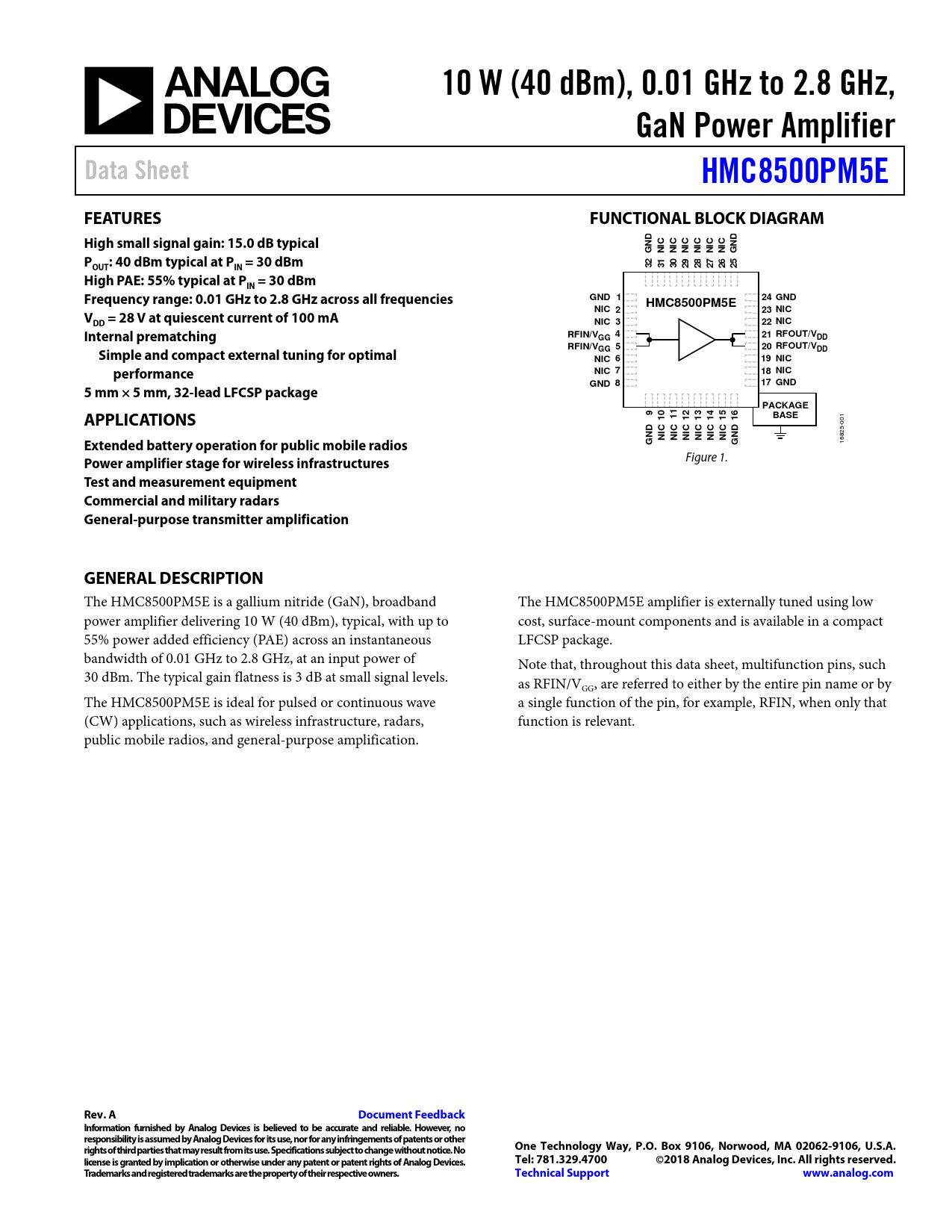

10 W (40 dBm), 0.01 GHz to 2.8 GHz, GaN Power Amplifier Data Sheet HMC8500PM5E FEATURES FUNCTIONAL BLOCK DIAGRAM High small signal gain: 15.0 dB typical C C C C C C ND ND G NI NI NI NI NI NI G P : 40 dBm typical at P = 30 dBm OUT IN 32 31 30 29 28 27 26 25 High PAE: 55% typical at P = 30 dBm IN Frequency range: 0.01 GHz to 2.8 GHz across all frequencies GND 1 24 GND HMC8500PM5E NIC 2 23 NIC V = 28 V at quiescent current of 100 mA DD NIC 3 22 NIC Internal prematching RFIN/V 4 GG 21 RFOUT/VDD RFIN/V 5 20 RFOUT/V Simple and compact external tuning for optimal GG DD NIC 6 19 NIC performance NIC 7 18 NIC GND 8 17 GND 5 mm × 5 mm, 32-lead LFCSP package PACKAGE APPLICATIONS 9 10 11 12 13 14 15 16 BASE
001
C C C C C C ND ND Extended battery operation for public mobile radios NI NI NI NI NI NI G G
16825-
Power amplifier stage for wireless infrastructures
Figure 1.
Test and measurement equipment Commercial and military radars General-purpose transmitter amplification GENERAL DESCRIPTION
The HMC8500PM5E is a gallium nitride (GaN), broadband The HMC8500PM5E amplifier is externally tuned using low power amplifier delivering 10 W (40 dBm), typical, with up to cost, surface-mount components and is available in a compact 55% power added efficiency (PAE) across an instantaneous LFCSP package. bandwidth of 0.01 GHz to 2.8 GHz, at an input power of Note that, throughout this data sheet, multifunction pins, such 30 dBm. The typical gain flatness is 3 dB at small signal levels. as RFIN/VGG, are referred to either by the entire pin name or by The HMC8500PM5E is ideal for pulsed or continuous wave a single function of the pin, for example, RFIN, when only that (CW) applications, such as wireless infrastructure, radars, function is relevant. public mobile radios, and general-purpose amplification.
