Datasheet HMC906A (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | GaAs pHEMT MMIC 2 WATT POWER AMPLIFIER, 27.3 - 33.5 GHz |
| Páginas / Página | 12 / 8 — HMC906A. GaAs pHEMT MMIC 2 WATT. POWER AMPLIFIER, 27.3 - 33.5 GHz. … |
| Formato / tamaño de archivo | PDF / 601 Kb |
| Idioma del documento | Inglés |

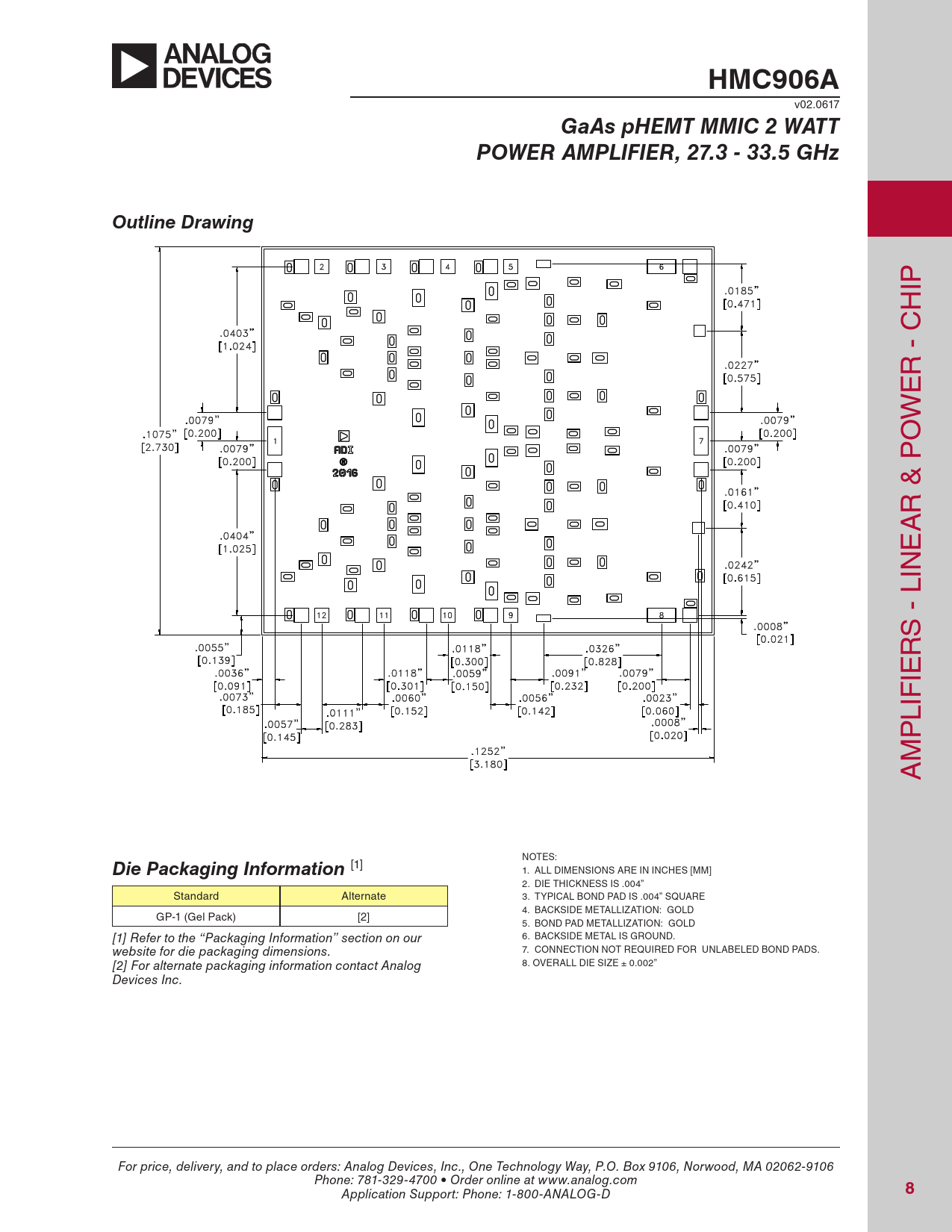

HMC906A. GaAs pHEMT MMIC 2 WATT. POWER AMPLIFIER, 27.3 - 33.5 GHz. Outline Drawing. Die Packaging Information
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC906A
v02.0617
GaAs pHEMT MMIC 2 WATT POWER AMPLIFIER, 27.3 - 33.5 GHz Outline Drawing
ip H r - C e w o p r & A e lin s - r ie lif p m A noTes:
Die Packaging Information
[1] 1. All Dimensions Are in inCHes [mm] 2. Die THiCKness is .004” standard Alternate 3. TYpiCAl BonD pAD is .004” sQUAre 4. BACKsiDe meTAlliZATion: GolD Gp-1 (Gel pack) [2] 5. BonD pAD meTAlliZATion: GolD 6. BACKsiDe meTAl is GroUnD. [1] Refer to the “Packaging Information” section on our 7. ConneCTion noT reQUireD for UnlABeleD BonD pADs. website for die packaging dimensions. 8. oVerAll Die siZe ± 0.002” [2] For alternate packaging information contact Analog Devices Inc. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
8
