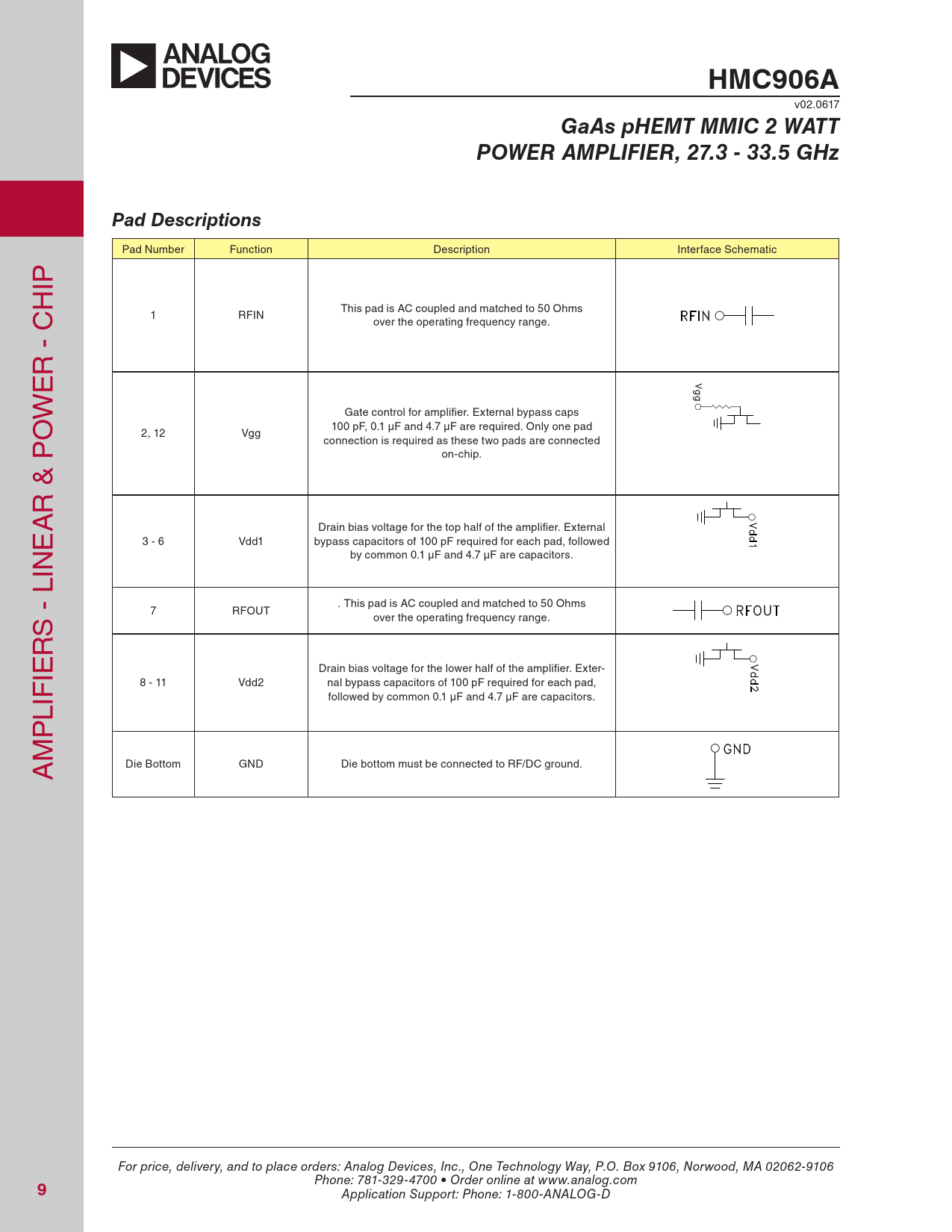

HMC906A. GaAs pHEMT MMIC 2 WATT. POWER AMPLIFIER, 27.3 - 33.5 GHz. Pad Descriptions
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC906A
v02.0617
GaAs pHEMT MMIC 2 WATT POWER AMPLIFIER, 27.3 - 33.5 GHz Pad Descriptions
pad number function Description interface schematic ip H This pad is AC coupled and matched to 50 ohms 1 rfin over the operating frequency range. r - C e w Gate control for amplifier. external bypass caps o 100 pf, 0.1 µf and 4.7 µf are required. only one pad p 2, 12 Vgg connection is required as these two pads are connected on-chip. r & A e Drain bias voltage for the top half of the amplifier. external 3 - 6 Vdd1 bypass capacitors of 100 pf required for each pad, followed by common 0.1 µf and 4.7 µf are capacitors. lin . This pad is AC coupled and matched to 50 ohms 7 rfoUT s - over the operating frequency range. r ie Drain bias voltage for the lower half of the amplifier. exter- 8 - 11 Vdd2 nal bypass capacitors of 100 pf required for each pad, lif followed by common 0.1 µf and 4.7 µf are capacitors. p m A Die Bottom GnD Die bottom must be connected to rf/DC ground. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
9
