Datasheet HMC906A (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | GaAs pHEMT MMIC 2 WATT POWER AMPLIFIER, 27.3 - 33.5 GHz |
| Páginas / Página | 12 / 7 — HMC906A. GaAs pHEMT MMIC 2 WATT. POWER AMPLIFIER, 27.3 - 33.5 GHz. … |
| Formato / tamaño de archivo | PDF / 601 Kb |
| Idioma del documento | Inglés |

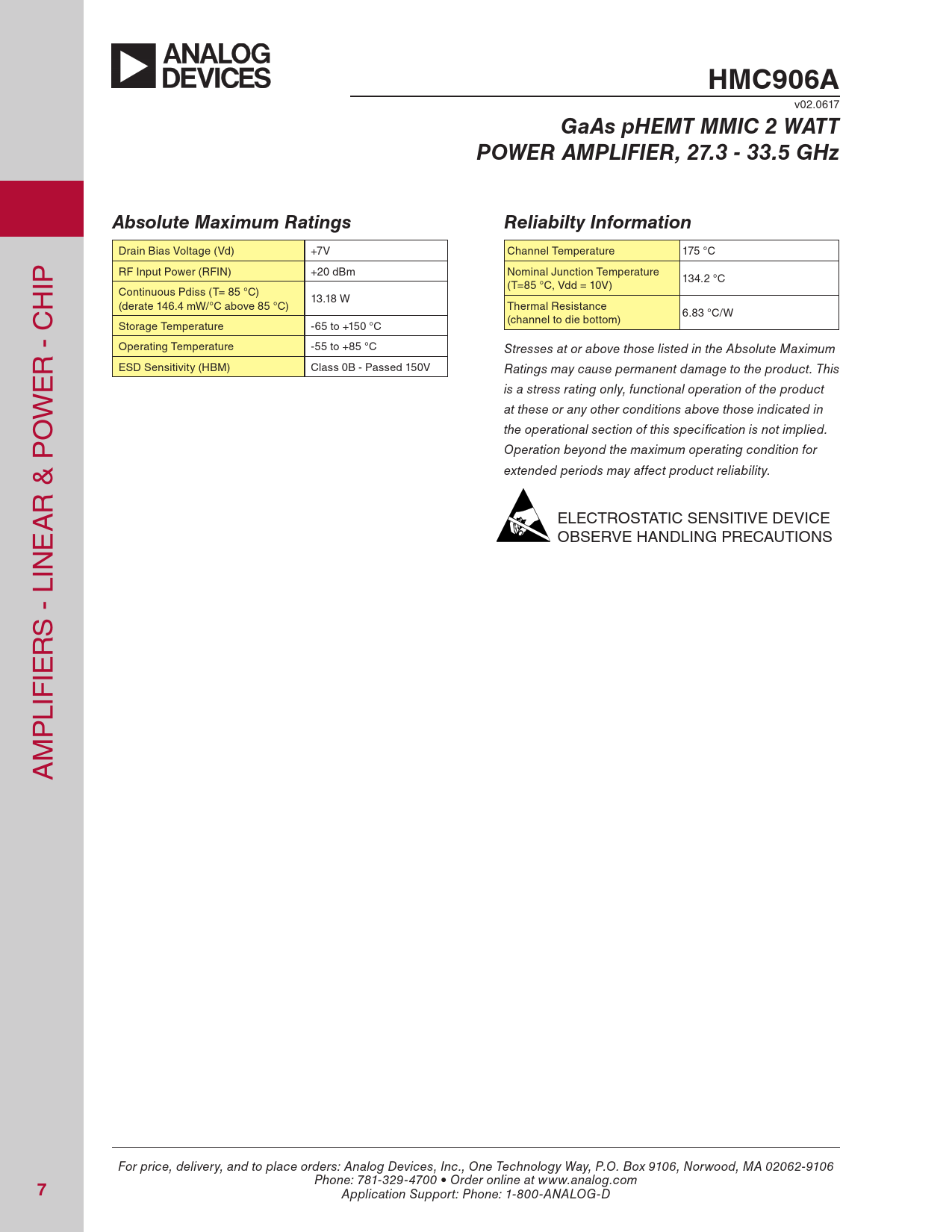

HMC906A. GaAs pHEMT MMIC 2 WATT. POWER AMPLIFIER, 27.3 - 33.5 GHz. Absolute Maximum Ratings. Reliabilty Information
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC906A
v02.0617
GaAs pHEMT MMIC 2 WATT POWER AMPLIFIER, 27.3 - 33.5 GHz Absolute Maximum Ratings Reliabilty Information
Drain Bias Voltage (Vd) +7V Channel Temperature 175 °C ip rf input power (rfin) +20 dBm nominal Junction Temperature 134.2 °C H (T=85 °C, Vdd = 10V) Continuous pdiss (T= 85 °C) 13.18 w (derate 146.4 mw/°C above 85 °C) Thermal resistance 6.83 °C/w (channel to die bottom) storage Temperature -65 to +150 °C operating Temperature -55 to +85 °C Stresses at or above those listed in the Absolute Maximum r - C esD sensitivity (HBm) Class 0B - passed 150V e Ratings may cause permanent damage to the product. This is a stress rating only, functional operation of the product w at these or any other conditions above those indicated in o the operational section of this specification is not implied. p Operation beyond the maximum operating condition for extended periods may affect product reliability. r & A eleCTrosTATiC sensiTiVe DeViCe e oBserVe HAnDlinG preCAUTions lin s - r ie lif p m A For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
