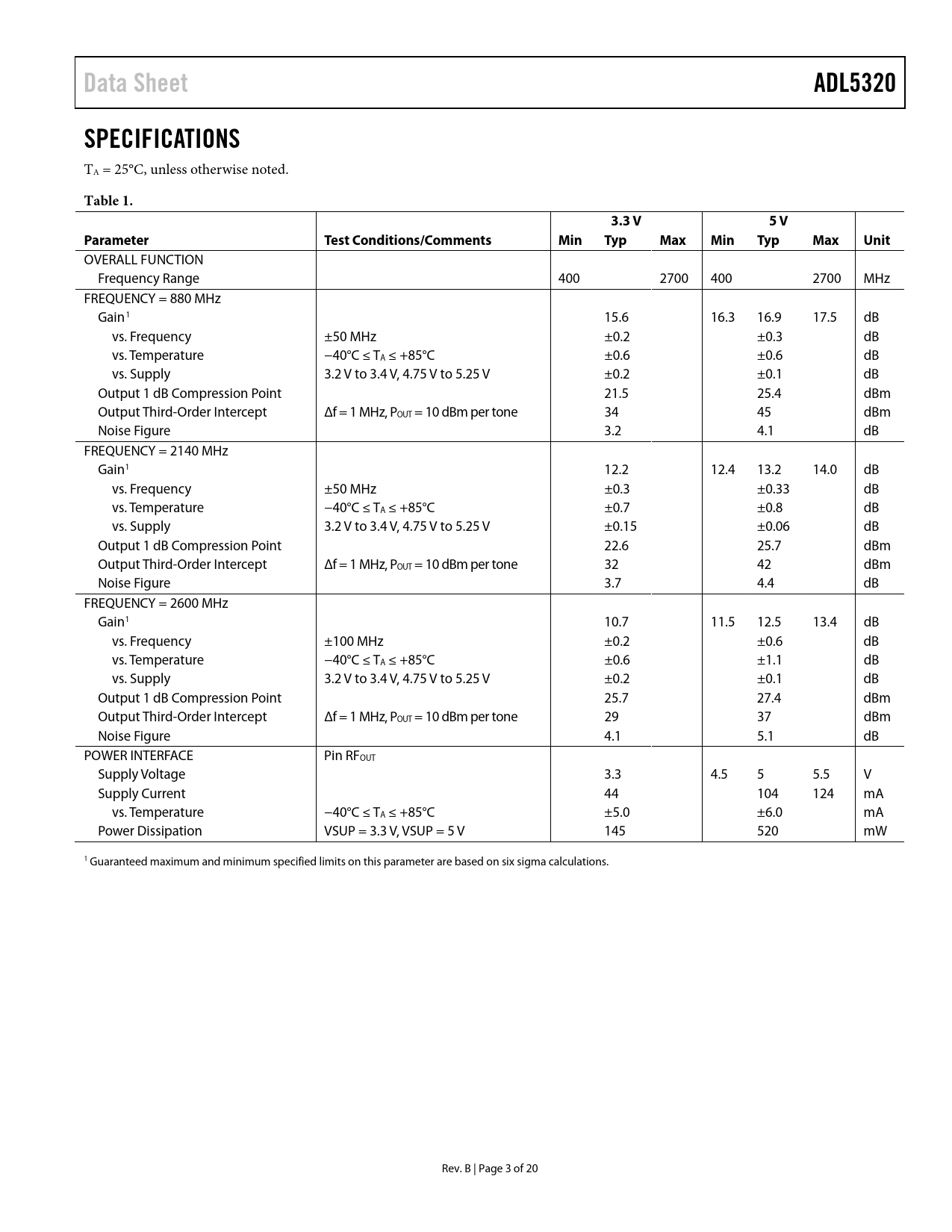

Data Sheet ADL5320 SPECIFICATIONS
TA = 25°C, unless otherwise noted.
Table 1. 3.3 V 5 V Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
OVERALL FUNCTION Frequency Range 400 2700 400 2700 MHz FREQUENCY = 880 MHz Gain1 15.6 16.3 16.9 17.5 dB vs. Frequency ±50 MHz ±0.2 ±0.3 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.6 ±0.6 dB vs. Supply 3.2 V to 3.4 V, 4.75 V to 5.25 V ±0.2 ±0.1 dB Output 1 dB Compression Point 21.5 25.4 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 10 dBm per tone 34 45 dBm Noise Figure 3.2 4.1 dB FREQUENCY = 2140 MHz Gain1 12.2 12.4 13.2 14.0 dB vs. Frequency ±50 MHz ±0.3 ±0.33 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.7 ±0.8 dB vs. Supply 3.2 V to 3.4 V, 4.75 V to 5.25 V ±0.15 ±0.06 dB Output 1 dB Compression Point 22.6 25.7 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 10 dBm per tone 32 42 dBm Noise Figure 3.7 4.4 dB FREQUENCY = 2600 MHz Gain1 10.7 11.5 12.5 13.4 dB vs. Frequency ±100 MHz ±0.2 ±0.6 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.6 ±1.1 dB vs. Supply 3.2 V to 3.4 V, 4.75 V to 5.25 V ±0.2 ±0.1 dB Output 1 dB Compression Point 25.7 27.4 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 10 dBm per tone 29 37 dBm Noise Figure 4.1 5.1 dB POWER INTERFACE Pin RFOUT Supply Voltage 3.3 4.5 5 5.5 V Supply Current 44 104 124 mA vs. Temperature −40°C ≤ TA ≤ +85°C ±5.0 ±6.0 mA Power Dissipation VSUP = 3.3 V, VSUP = 5 V 145 520 mW 1 Guaranteed maximum and minimum specified limits on this parameter are based on six sigma calculations. Rev. B | Page 3 of 20 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Typical Scattering Parameters Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics High Temperature and 3.3 V Operation Applications Information Basic Layout Connections Soldering Information and Recommended PCB Land Pattern Matching Procedure Optimizing OP1dB W-CDMA ACPR Performance Evaluation Board Outline Dimensions Ordering Guide
