IRF6775MTRPbF. REEL DIMENSIONS. (QTY 4800). (QTY 1000)
Línea de modelo para esta hoja de datos
Versión de texto del documento
IRF6775MTRPbF
DirectFET

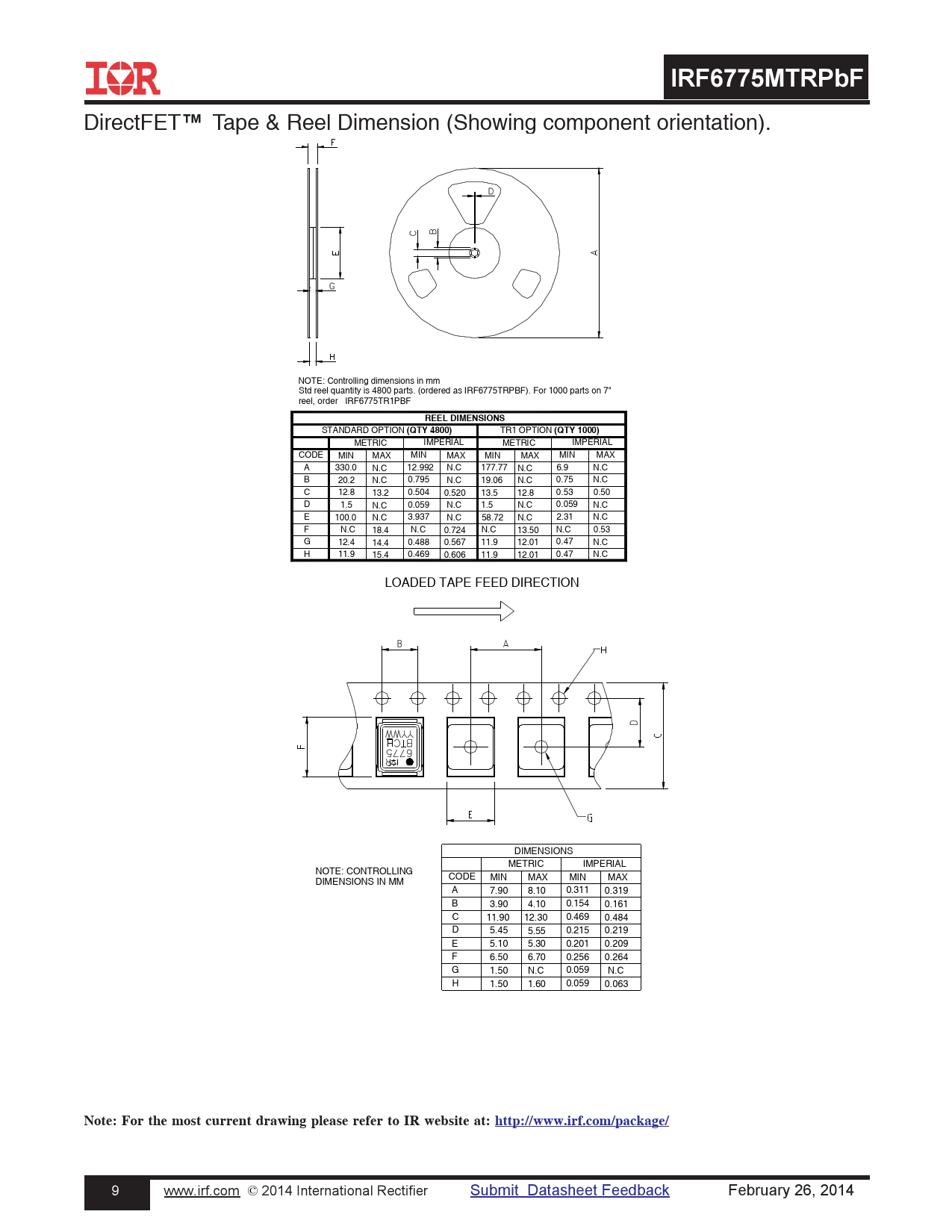

Tape & Reel Dimension (Showing component orientation). NOTE: Control ing dimensions in mm Std reel quantity is 4800 parts. (ordered as IRF6775TRPBF). For 1000 parts on 7" reel, order IRF6775TR1PBF
REEL DIMENSIONS
STANDARD OPTION
(QTY 4800)
TR1 OPTION
(QTY 1000)
METRIC IMPERIAL METRIC IMPERIAL CODE MIN MAX MIN MAX MIN MAX MIN MAX A 330.0 N.C 12.992 N.C 177.77 N.C 6.9 N.C B 20.2 N.C 0.795 N.C 19.06 N.C 0.75 N.C C 12.8 13.2 0.504 0.520 13.5 12.8 0.53 0.50 D 1.5 N.C 0.059 N.C 1.5 N.C 0.059 N.C E 100.0 N.C 3.937 N.C 58.72 N.C 2.31 N.C F N.C 18.4 N.C 0.724 N.C 13.50 N.C 0.53 G 12.4 14.4 0.488 0.567 11.9 12.01 0.47 N.C H 11.9 15.4 0.469 0.606 11.9 12.01 0.47 N.C LOADED TAPE FEED DIRECTION DIMENSIONS METRIC IMPERIAL NOTE: CONTROLLING MIN DIMENSIONS IN MM CODE MAX MIN MAX A 7.90 8.10 0.311 0.319 B 3.90 4.10 0.154 0.161 C 11.90 12.30 0.469 0.484 D 5.45 5.55 0.215 0.219 E 5.10 5.30 0.201 0.209 F 6.50 6.70 0.256 0.264 G 1.50 N.C 0.059 N.C H 1.50 1.60 0.059 0.063
Note: For the most current drawing please refer to IR website at: http://www.irf.com/package/
9 www.irf.com © 2014 International Rectifier Submit Datasheet Feedback February 26, 2014
