Datasheet IR2011(S)PBF (Infineon) - 9
| Fabricante | Infineon |
| Descripción | High and Low Side Driver |
| Páginas / Página | 18 / 9 — IR2011(S)PBF. Figure 5A. Turn-off Fall Time vs. Temperature. Figure 5B. … |
| Revisión | 01_00 |
| Formato / tamaño de archivo | PDF / 1.3 Mb |
| Idioma del documento | Inglés |

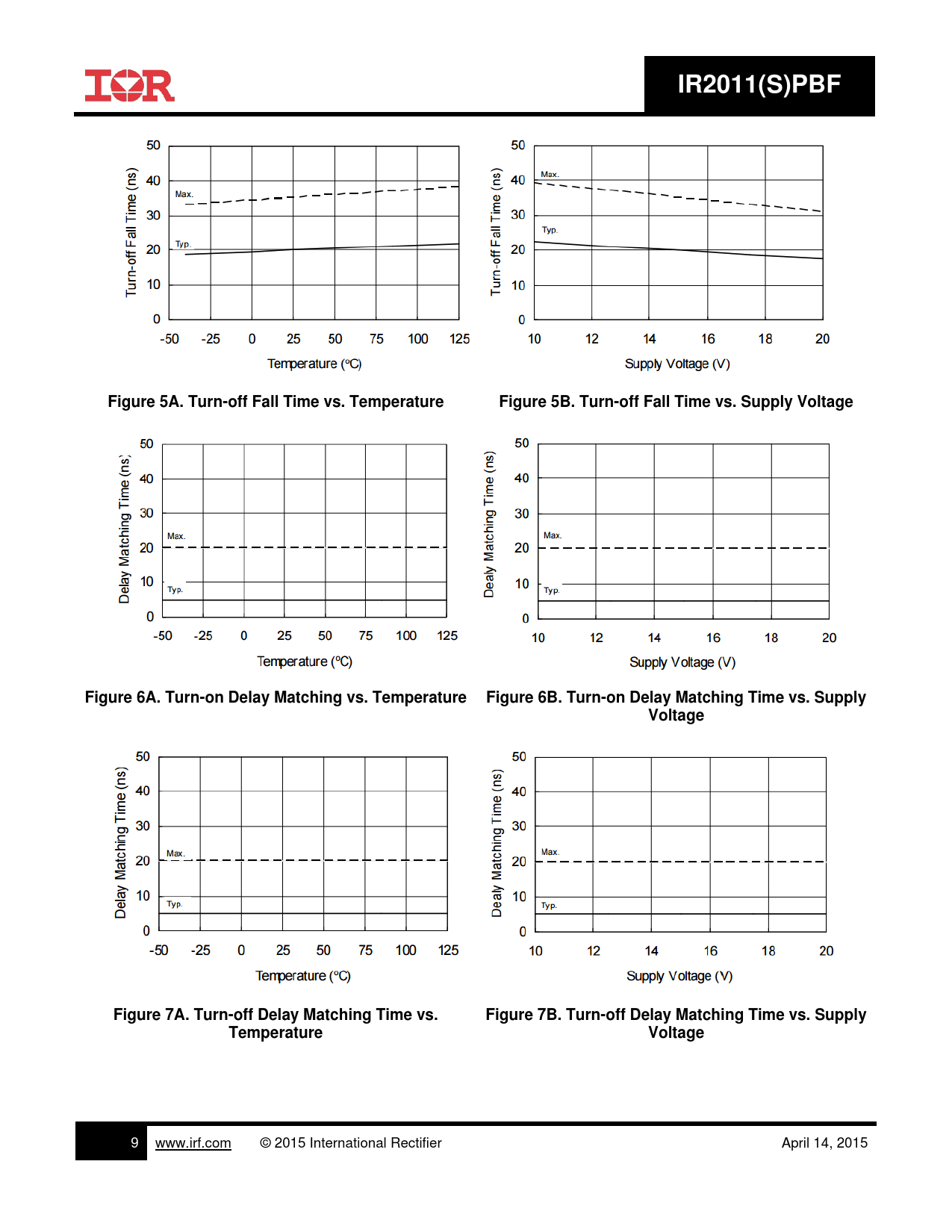

IR2011(S)PBF. Figure 5A. Turn-off Fall Time vs. Temperature. Figure 5B. Turn-off Fall Time vs. Supply Voltage
Línea de modelo para esta hoja de datos
Versión de texto del documento
IR2011(S)PBF Figure 5A. Turn-off Fall Time vs. Temperature Figure 5B. Turn-off Fall Time vs. Supply Voltage Figure 6A. Turn-on Delay Matching vs. Temperature Figure 6B. Turn-on Delay Matching Time vs. Supply Voltage Figure 7A. Turn-off Delay Matching Time vs. Figure 7B. Turn-off Delay Matching Time vs. Supply Temperature Voltage
9 www.irf.com © 2015 International Rectifier April 14, 2015
9 www.irf.com © 2015 International Rectifier April 14, 2015
