IR2011(S)PBF. Absolute Maximum Ratings. Symbol. Definition. Min. Max. Units. Recommended Operating Conditions
Línea de modelo para esta hoja de datos
Versión de texto del documento

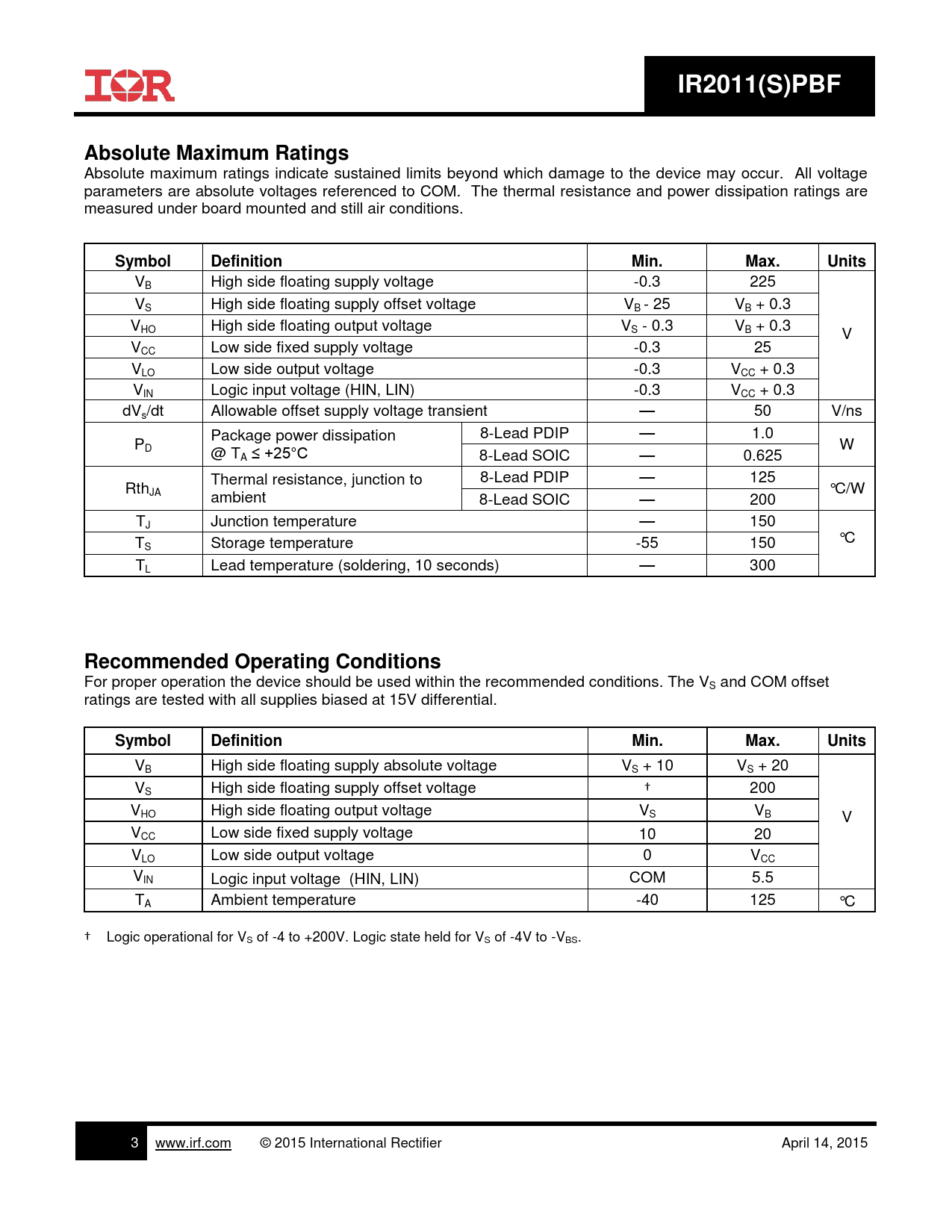

IR2011(S)PBF Absolute Maximum Ratings
Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute voltages referenced to COM. The thermal resistance and power dissipation ratings are measured under board mounted and still air conditions.
Symbol Definition Min. Max. Units
VB High side floating supply voltage -0.3 225 VS High side floating supply offset voltage VB - 25 VB + 0.3 VHO High side floating output voltage VS - 0.3 VB + 0.3 V VCC Low side fixed supply voltage -0.3 25 VLO Low side output voltage -0.3 VCC + 0.3 VIN Logic input voltage (HIN, LIN) -0.3 VCC + 0.3 dVs/dt Allowable offset supply voltage transient — 50 V/ns Package power dissipation 8-Lead PDIP — 1.0 PD W @ TA ≤ +25°C 8-Lead SOIC — 0.625 Thermal resistance, junction to 8-Lead PDIP — 125 RthJA °C/W ambient 8-Lead SOIC — 200 TJ Junction temperature — 150 °C TS Storage temperature -55 150 TL Lead temperature (soldering, 10 seconds) — 300
Recommended Operating Conditions
For proper operation the device should be used within the recommended conditions. The VS and COM offset ratings are tested with all supplies biased at 15V differential.
Symbol Definition Min. Max. Units
VB High side floating supply absolute voltage VS + 10 VS + 20 VS High side floating supply offset voltage † 200 VHO High side floating output voltage VS VB V VCC Low side fixed supply voltage 10 20 VLO Low side output voltage 0 VCC VIN Logic input voltage (HIN, LIN) COM 5.5 TA Ambient temperature -40 125 °C † Logic operational for VS of -4 to +200V. Logic state held for VS of -4V to -VBS. 3 www.irf.com © 2015 International Rectifier April 14, 2015
