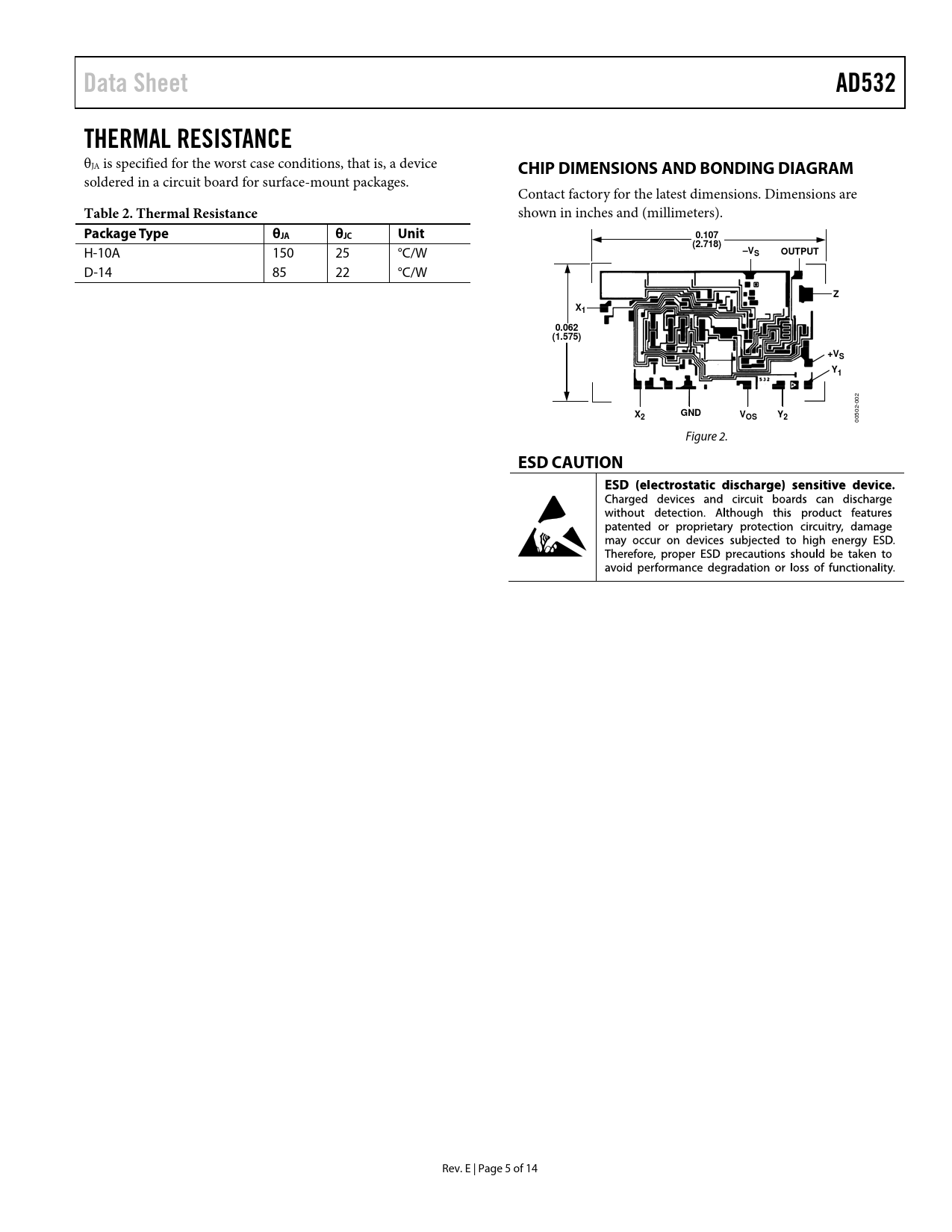

Data Sheet AD532 THERMAL RESISTANCE
θJA is specified for the worst case conditions, that is, a device
CHIP DIMENSIONS AND BONDING DIAGRAM
soldered in a circuit board for surface-mount packages. Contact factory for the latest dimensions. Dimensions are
Table 2. Thermal Resistance
shown in inches and (millimeters).
Package Type θJA θJC Unit 0.107 (2.718)
H-10A 150 25 °C/W
–VS OUTPUT
D-14 85 22 °C/W
Z X1 0.062 (1.575) +VS Y1
002
X GND V Y 2 OS 2
00502- Figure 2.
ESD CAUTION
