Datasheet AD532 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | Internally Trimmed Integrated Circuit Multiplier |
| Páginas / Página | 14 / 6 — AD532. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. Z 1. 14 … |
| Revisión | E |
| Formato / tamaño de archivo | PDF / 348 Kb |
| Idioma del documento | Inglés |

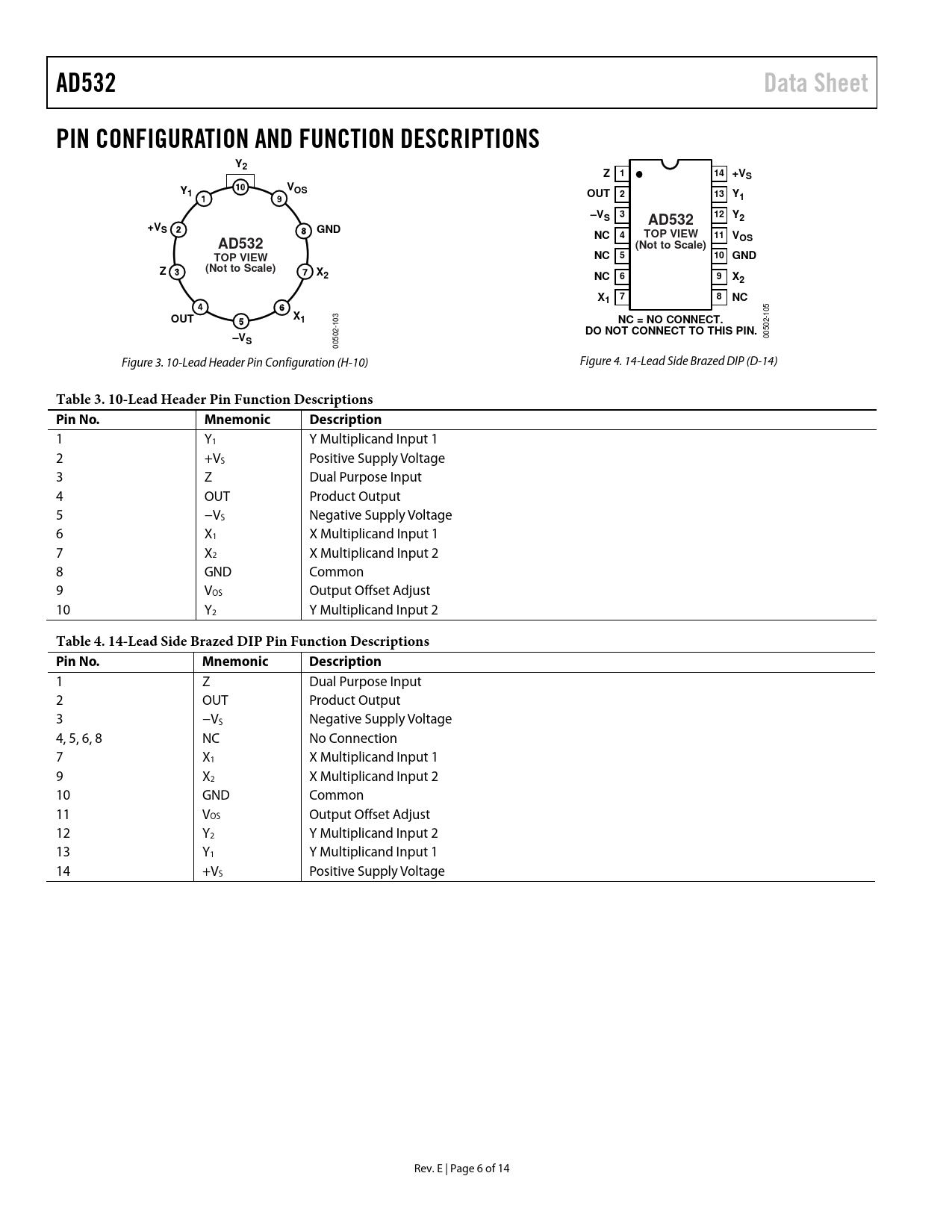

AD532. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. Z 1. 14 +VS. OUT 2. 13 Y1. +VS. GND. NC 4. TOP VIEW. 11 V. (Not to Scale). NC 5
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD532 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS Y2 Z 1 14 +VS Y V 1 OS OUT 2 13 Y1 –V 3 12 S Y2 AD532 +VS GND NC 4 TOP VIEW 11 V AD532 OS (Not to Scale) TOP VIEW NC 5 10 GND Z (Not to Scale) X2 NC 6 9 X2 X 7 8 1 NC X
105
OUT 1
103
NC = NO CONNECT. DO NOT CONNECT TO THIS PIN. –V
00502-
S
00502- Figure 3. 10-Lead Header Pin Configuration (H-10) Figure 4. 14-Lead Side Brazed DIP (D-14)
Table 3. 10-Lead Header Pin Function Descriptions Pin No. Mnemonic Description
1 Y1 Y Multiplicand Input 1 2 +VS Positive Supply Voltage 3 Z Dual Purpose Input 4 OUT Product Output 5 −VS Negative Supply Voltage 6 X1 X Multiplicand Input 1 7 X2 X Multiplicand Input 2 8 GND Common 9 VOS Output Offset Adjust 10 Y2 Y Multiplicand Input 2
Table 4. 14-Lead Side Brazed DIP Pin Function Descriptions Pin No. Mnemonic Description
1 Z Dual Purpose Input 2 OUT Product Output 3 −VS Negative Supply Voltage 4, 5, 6, 8 NC No Connection 7 X1 X Multiplicand Input 1 9 X2 X Multiplicand Input 2 10 GND Common 11 VOS Output Offset Adjust 12 Y2 Y Multiplicand Input 2 13 Y1 Y Multiplicand Input 1 14 +VS Positive Supply Voltage Rev. E | Page 6 of 14 Document Outline Features Applications General Description Flexibility of Operation Functional Block Diagram Guaranteed Performance Over Temperature Advantages of On The Chip Trimming of The Monolithic AD532 Revision History Specifications Thermal Resistance Chip Dimensions And Bonding Diagram ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Functional Description AD532 Performance Characteristics Nonlinearity AC Feedthrough Common-Mode Rejection Dynamic Characteristics Power Supply Considerations Noise Characteristics Applications Replacing Other IC Multipliers Multiplication Squaring Division Square Root Additional Information Outline Dimensions Ordering Guide
