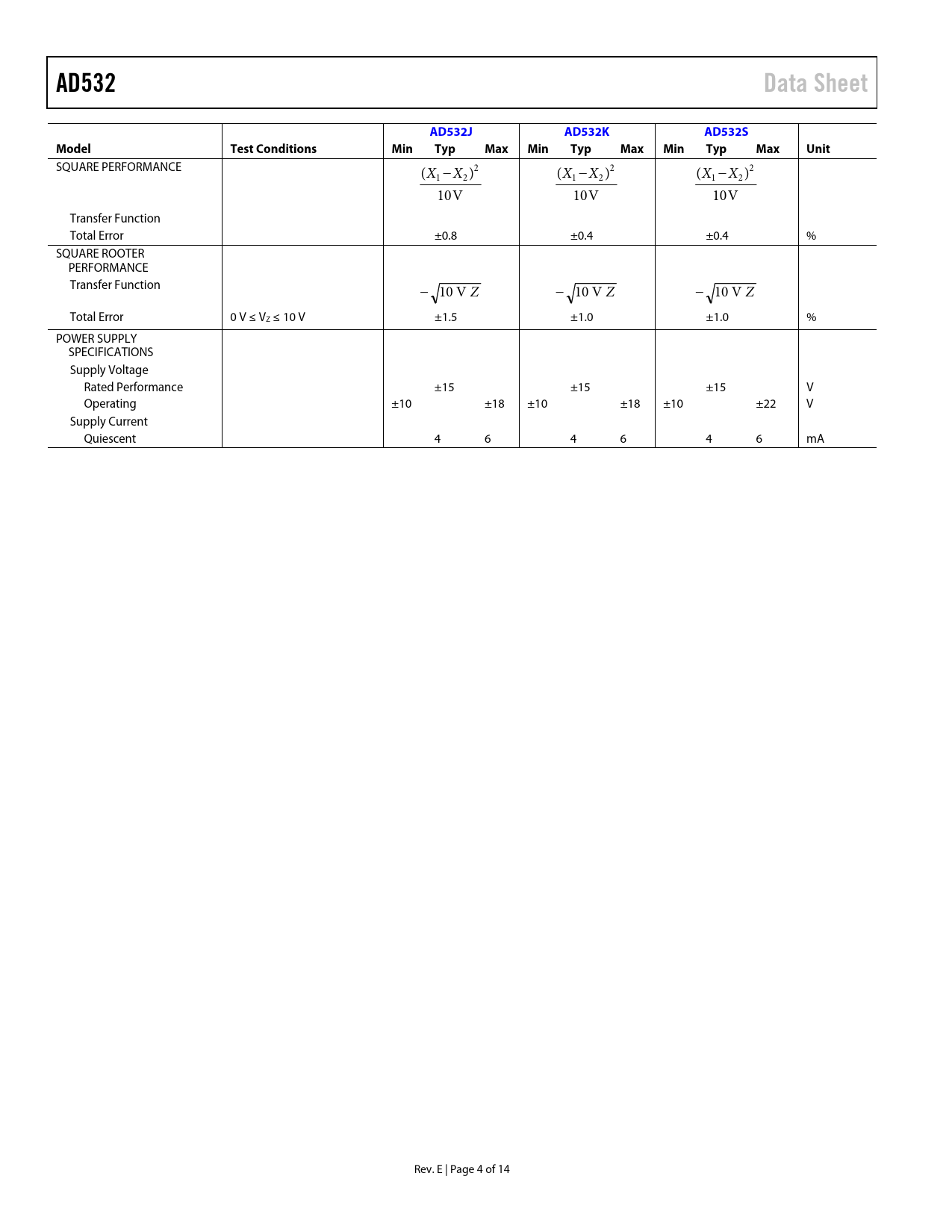

AD532 Data Sheet AD532J AD532K AD532S Model Test Conditions Min Typ Max Min Typ Max Min Typ Max Unit
SQUARE PERFORMANCE (X  X )2 (X  X )2 (X  X )2 1 2 1 2 1 2 10V 10V 10V Transfer Function Total Error ±0.8 ±0.4 ±0.4 % SQUARE ROOTER PERFORMANCE Transfer Function  10 V Z  10 V Z  10 V Z Total Error 0 V ≤ VZ ≤ 10 V ±1.5 ±1.0 ±1.0 % POWER SUPPLY SPECIFICATIONS Supply Voltage Rated Performance ±15 ±15 ±15 V Operating ±10 ±18 ±10 ±18 ±10 ±22 V Supply Current Quiescent 4 6 4 6 4 6 mA Rev. E | Page 4 of 14 Document Outline Features Applications General Description Flexibility of Operation Functional Block Diagram Guaranteed Performance Over Temperature Advantages of On The Chip Trimming of The Monolithic AD532 Revision History Specifications Thermal Resistance Chip Dimensions And Bonding Diagram ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Functional Description AD532 Performance Characteristics Nonlinearity AC Feedthrough Common-Mode Rejection Dynamic Characteristics Power Supply Considerations Noise Characteristics Applications Replacing Other IC Multipliers Multiplication Squaring Division Square Root Additional Information Outline Dimensions Ordering Guide
