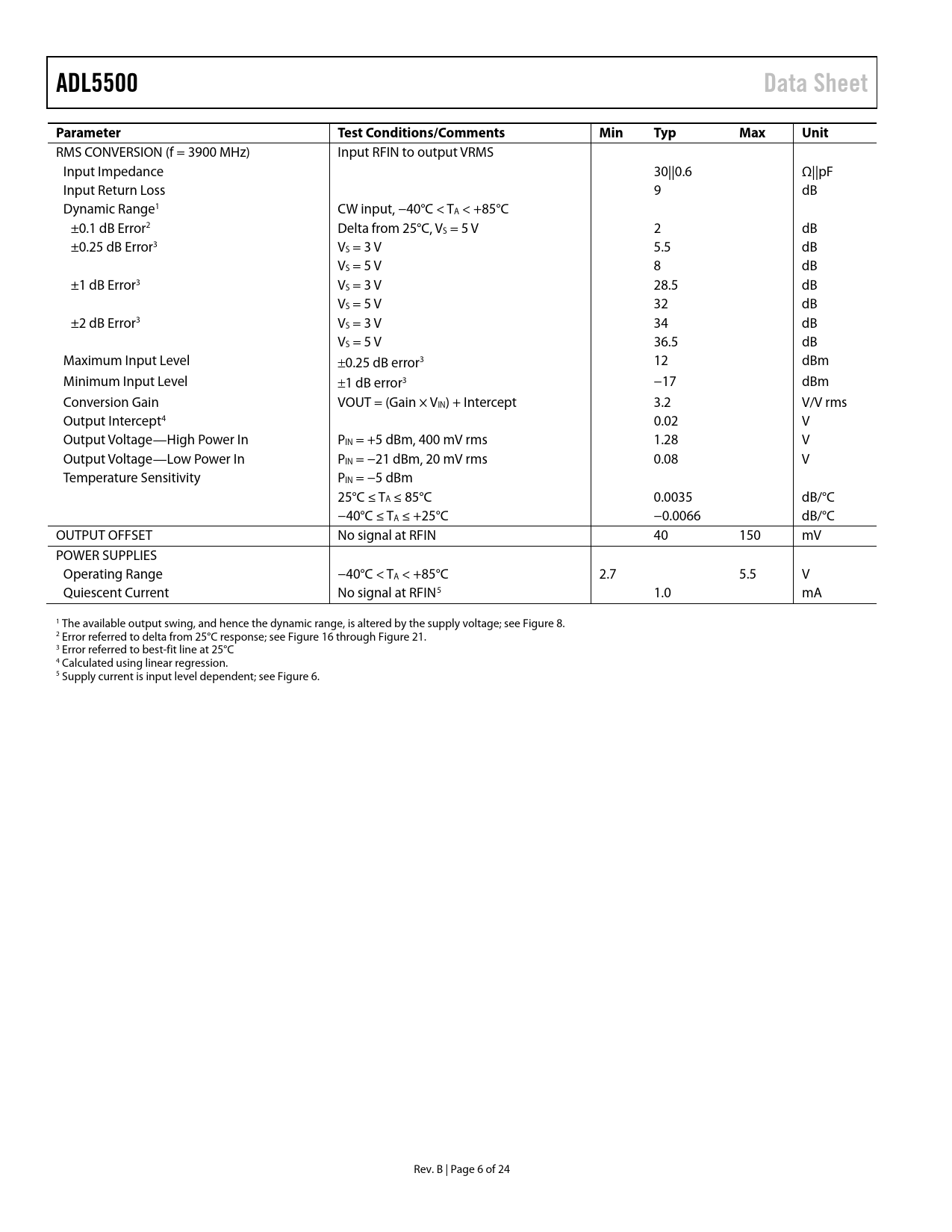

ADL5500 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
RMS CONVERSION (f = 3900 MHz) Input RFIN to output VRMS Input Impedance 30||0.6 Ω||pF Input Return Loss 9 dB Dynamic Range1 CW input, −40°C < TA < +85°C ±0.1 dB Error2 Delta from 25°C, VS = 5 V 2 dB ±0.25 dB Error3 VS = 3 V 5.5 dB VS = 5 V 8 dB ±1 dB Error3 VS = 3 V 28.5 dB VS = 5 V 32 dB ±2 dB Error3 VS = 3 V 34 dB VS = 5 V 36.5 dB Maximum Input Level ±0.25 dB error3 12 dBm Minimum Input Level ±1 dB error3 −17 dBm Conversion Gain VOUT = (Gain × VIN) + Intercept 3.2 V/V rms Output Intercept4 0.02 V Output Voltage—High Power In PIN = +5 dBm, 400 mV rms 1.28 V Output Voltage—Low Power In PIN = −21 dBm, 20 mV rms 0.08 V Temperature Sensitivity PIN = −5 dBm 25°C ≤ TA ≤ 85°C 0.0035 dB/°C −40°C ≤ TA ≤ +25°C −0.0066 dB/°C OUTPUT OFFSET No signal at RFIN 40 150 mV POWER SUPPLIES Operating Range −40°C < TA < +85°C 2.7 5.5 V Quiescent Current No signal at RFIN5 1.0 mA 1 The available output swing, and hence the dynamic range, is altered by the supply voltage; see Figure 8. 2 Error referred to delta from 25°C response; see Figure 16 through Figure 21. 3 Error referred to best-fit line at 25°C 4 Calculated using linear regression. 5 Supply current is input level dependent; see Figure 6. Rev. B | Page 6 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION FILTERING APPLICATIONS INFORMATION BASIC CONNECTIONS OUTPUT SWING LINEARITY INPUT COUPLING USING A SERIES RESISTOR MULTIPLE RF INPUTS SELECTING THE OUTPUT LOW-PASS FILTER NETWORK POWER CONSUMPTION AND POWER-ON/-OFF RESPONSE OUTPUT DRIVE CAPABILITY AND BUFFERING VRMS OUTPUT OFFSET DEVICE CALIBRATION AND ERROR CALCULATION CALIBRATION FOR IMPROVED ACCURACY DRIFT OVER A REDUCED TEMPERATURE RANGE OPERATION ABOVE 4.0 GHz DEVICE HANDLING EVALUATION BOARD Land Pattern and Soldering Information Junction-to-Board Thermal Impedance OUTLINE DIMENSIONS ORDERING GUIDE
