Datasheet ADL5500 (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | 100 MHz to 6 GHz TruPwr Detector |
| Páginas / Página | 24 / 7 — Data Sheet. ADL5500. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 1.7 Mb |
| Idioma del documento | Inglés |

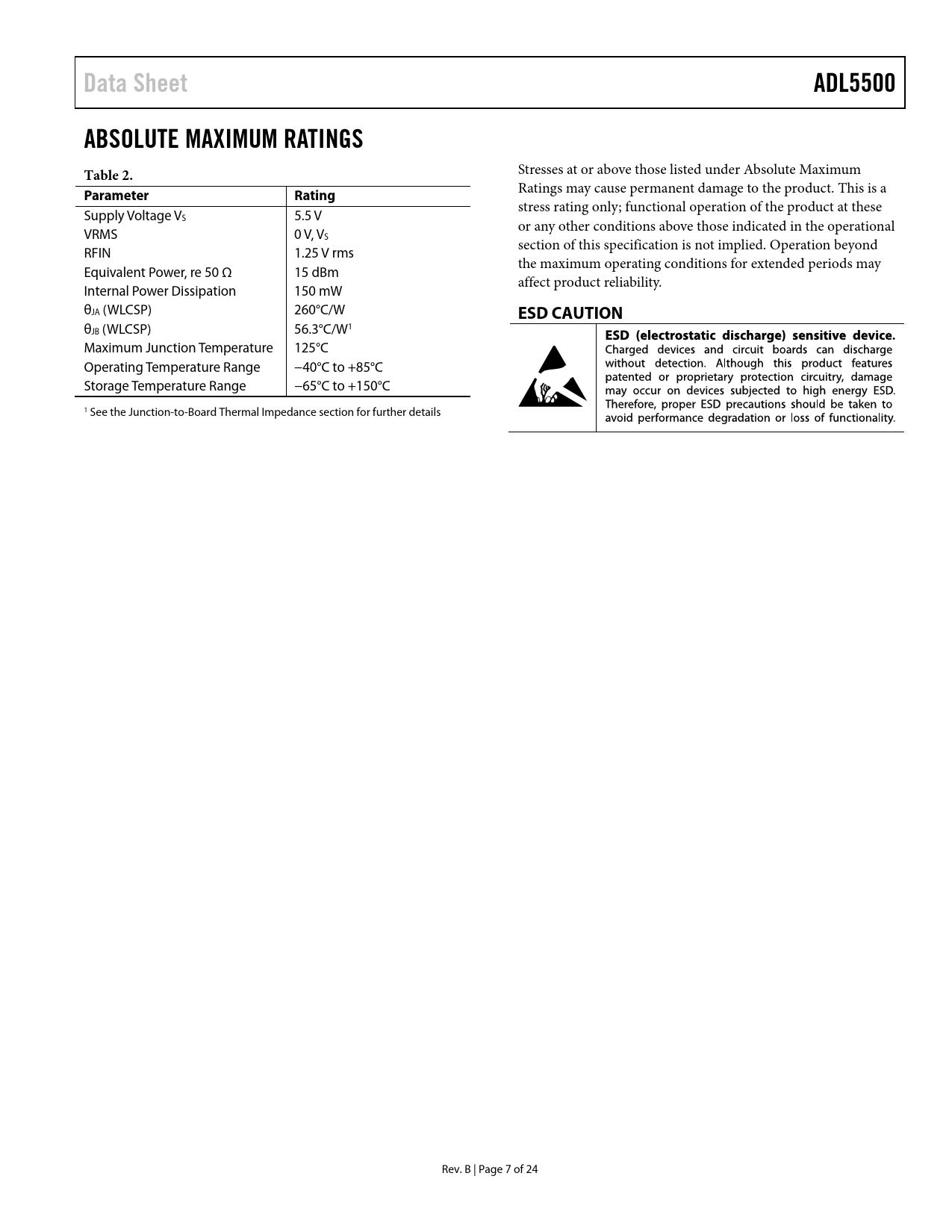

Data Sheet. ADL5500. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 20
Data Sheet ADL5500 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage V stress rating only; functional operation of the product at these S 5.5 V or any other conditions above those indicated in the operational VRMS 0 V, VS section of this specification is not implied. Operation beyond RFIN 1.25 V rms the maximum operating conditions for extended periods may Equivalent Power, re 50 Ω 15 dBm affect product reliability. Internal Power Dissipation 150 mW θJA (WLCSP) 260°C/W
ESD CAUTION
θJB (WLCSP) 56.3°C/W1 Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C 1 See the Junction-to-Board Thermal Impedance section for further details Rev. B | Page 7 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION FILTERING APPLICATIONS INFORMATION BASIC CONNECTIONS OUTPUT SWING LINEARITY INPUT COUPLING USING A SERIES RESISTOR MULTIPLE RF INPUTS SELECTING THE OUTPUT LOW-PASS FILTER NETWORK POWER CONSUMPTION AND POWER-ON/-OFF RESPONSE OUTPUT DRIVE CAPABILITY AND BUFFERING VRMS OUTPUT OFFSET DEVICE CALIBRATION AND ERROR CALCULATION CALIBRATION FOR IMPROVED ACCURACY DRIFT OVER A REDUCED TEMPERATURE RANGE OPERATION ABOVE 4.0 GHz DEVICE HANDLING EVALUATION BOARD Land Pattern and Soldering Information Junction-to-Board Thermal Impedance OUTLINE DIMENSIONS ORDERING GUIDE
