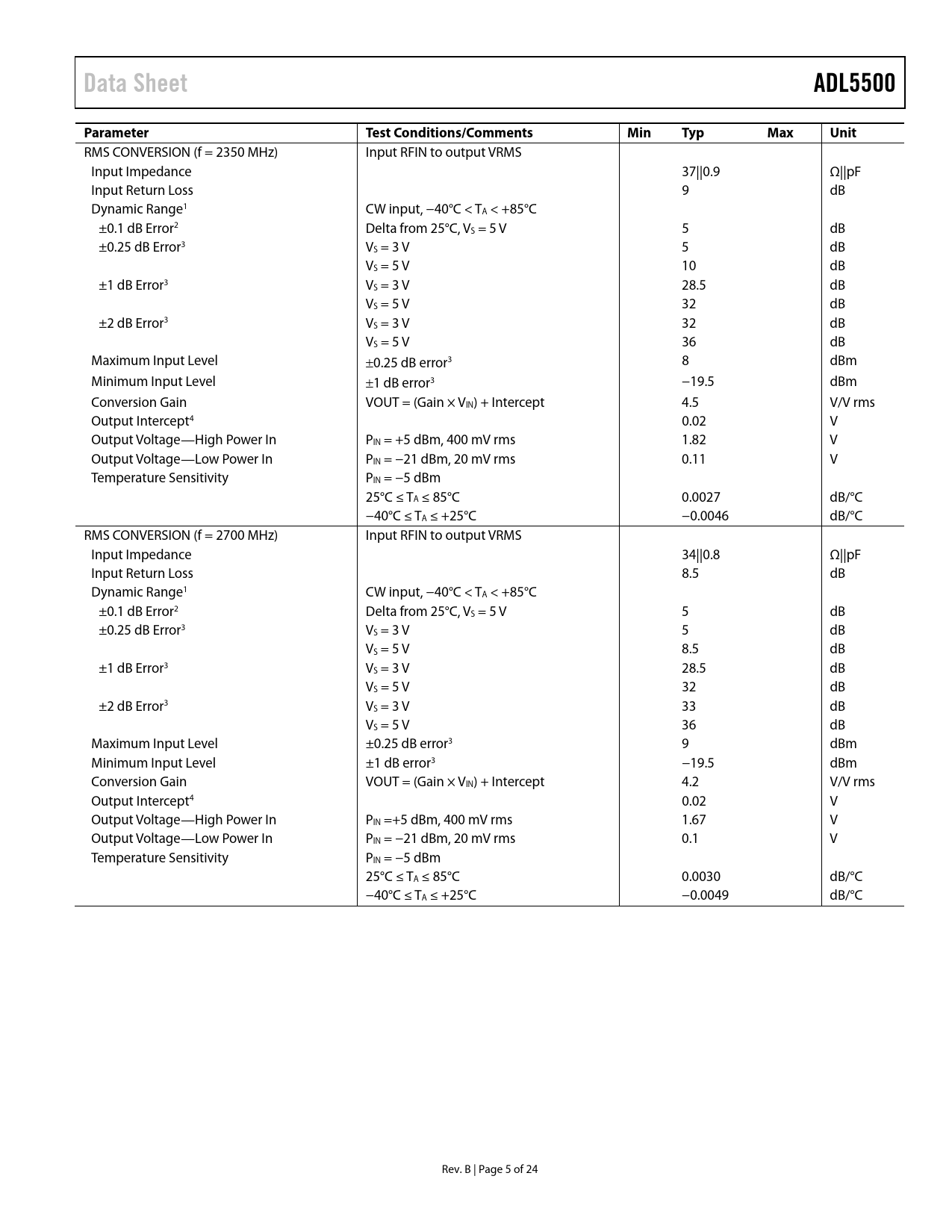

Data Sheet ADL5500 Parameter Test Conditions/Comments Min Typ Max Unit
RMS CONVERSION (f = 2350 MHz) Input RFIN to output VRMS Input Impedance 37||0.9 Ω||pF Input Return Loss 9 dB Dynamic Range1 CW input, −40°C < TA < +85°C ±0.1 dB Error2 Delta from 25°C, VS = 5 V 5 dB ±0.25 dB Error3 VS = 3 V 5 dB VS = 5 V 10 dB ±1 dB Error3 VS = 3 V 28.5 dB VS = 5 V 32 dB ±2 dB Error3 VS = 3 V 32 dB VS = 5 V 36 dB Maximum Input Level ±0.25 dB error3 8 dBm Minimum Input Level ±1 dB error3 −19.5 dBm Conversion Gain VOUT = (Gain × VIN) + Intercept 4.5 V/V rms Output Intercept4 0.02 V Output Voltage—High Power In PIN = +5 dBm, 400 mV rms 1.82 V Output Voltage—Low Power In PIN = −21 dBm, 20 mV rms 0.11 V Temperature Sensitivity PIN = −5 dBm 25°C ≤ TA ≤ 85°C 0.0027 dB/°C −40°C ≤ TA ≤ +25°C −0.0046 dB/°C RMS CONVERSION (f = 2700 MHz) Input RFIN to output VRMS Input Impedance 34||0.8 Ω||pF Input Return Loss 8.5 dB Dynamic Range1 CW input, −40°C < TA < +85°C ±0.1 dB Error2 Delta from 25°C, VS = 5 V 5 dB ±0.25 dB Error3 VS = 3 V 5 dB VS = 5 V 8.5 dB ±1 dB Error3 VS = 3 V 28.5 dB VS = 5 V 32 dB ±2 dB Error3 VS = 3 V 33 dB VS = 5 V 36 dB Maximum Input Level ±0.25 dB error3 9 dBm Minimum Input Level ±1 dB error3 −19.5 dBm Conversion Gain VOUT = (Gain × VIN) + Intercept 4.2 V/V rms Output Intercept4 0.02 V Output Voltage—High Power In PIN =+5 dBm, 400 mV rms 1.67 V Output Voltage—Low Power In PIN = −21 dBm, 20 mV rms 0.1 V Temperature Sensitivity PIN = −5 dBm 25°C ≤ TA ≤ 85°C 0.0030 dB/°C −40°C ≤ TA ≤ +25°C −0.0049 dB/°C Rev. B | Page 5 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION FILTERING APPLICATIONS INFORMATION BASIC CONNECTIONS OUTPUT SWING LINEARITY INPUT COUPLING USING A SERIES RESISTOR MULTIPLE RF INPUTS SELECTING THE OUTPUT LOW-PASS FILTER NETWORK POWER CONSUMPTION AND POWER-ON/-OFF RESPONSE OUTPUT DRIVE CAPABILITY AND BUFFERING VRMS OUTPUT OFFSET DEVICE CALIBRATION AND ERROR CALCULATION CALIBRATION FOR IMPROVED ACCURACY DRIFT OVER A REDUCED TEMPERATURE RANGE OPERATION ABOVE 4.0 GHz DEVICE HANDLING EVALUATION BOARD Land Pattern and Soldering Information Junction-to-Board Thermal Impedance OUTLINE DIMENSIONS ORDERING GUIDE
