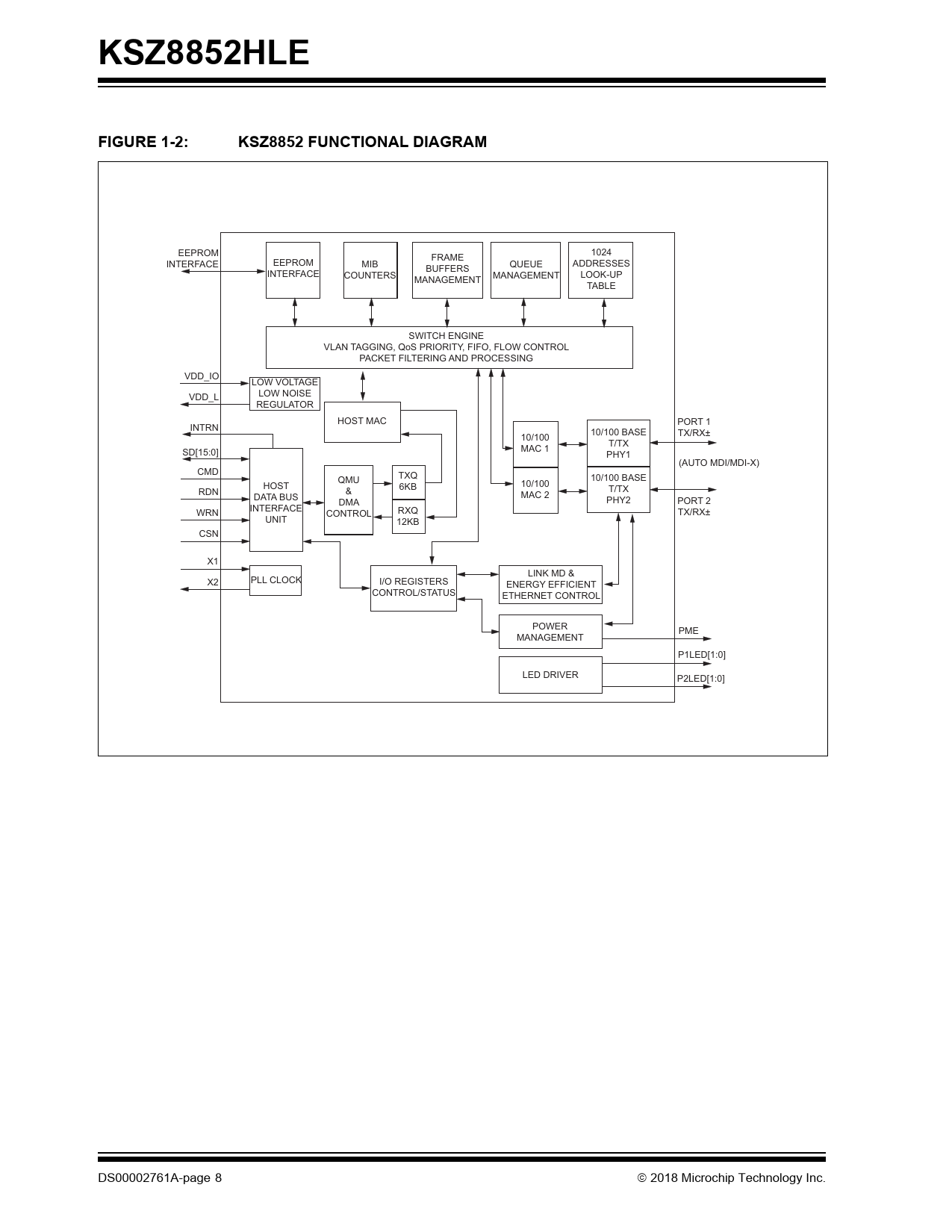

KSZ8852HLE FIGURE 1-2: KSZ8852 FUNCTIONAL DIAGRAM
EEPROM 1024 FRAME INTERFACE EEPROM MIB QUEUE ADDRESSES BUFFERS INTERFACE COUNTERS MANAGEMENT LOOK-UP MANAGEMENT TABLE SWITCH ENGINE VLAN TAGGING, QoS PRIORITY, FIFO, FLOW CONTROL PACKET FILTERING AND PROCESSING VDD_IO LOW VOLTAGE LOW NOISE VDD_L REGULATOR HOST MAC PORT 1 INTRN 10/100 BASE TX/RX± 10/100 T/TX MAC 1 SD[15:0] PHY1 (AUTO MDI/MDI-X) CMD QMU TXQ 10/100 BASE HOST 10/100 RDN & 6KB T/TX DATA BUS MAC 2 DMA PHY2 PORT 2 INTERFACE WRN CONTROL RXQ TX/RX± UNIT 12KB CSN X1 LINK MD & PLL CLOCK X2 I/O REGISTERS ENERGY EFFICIENT CONTROL/STATUS ETHERNET CONTROL POWER PME MANAGEMENT P1LED[1:0] LED DRIVER P2LED[1:0] DS00002761A-page 8  2018 Microchip Technology Inc. Document Outline 1.0 Introduction 1.1 General Terms and Conditions 1.2 General Description 2.0 Pin Description and Configuration 3.0 Functional Description 3.1 Direction Terminology 3.2 Physical (PHY) Block 3.3 MDI/MDI−X Auto Crossover 3.4 Auto Negotiation 3.5 LINK MD® Cable Diagnostics 3.6 On-Chip Termination Resistors 3.7 Lookback Support 3.8 MAC (Media Access Controller) Block 3.9 Switch Block 3.10 IGMP Support 3.11 IPv6 MLD Snooping 3.12 Port Mirroring Support 3.13 IEEE 802.1Q VLAN Support 3.14 QoS Priority Support 3.15 Rate-Limiting Support 3.16 MAC Address Filtering Function 3.17 Queue Management Unit (QMU) 3.18 Device Clocks 3.19 Power 3.20 Internal Low Voltage LDO Regulator 3.21 Power Management 3.22 Wake-On-LAN 3.23 Interfaces 4.0 Register Descriptions 4.1 Device Registers 4.2 Register Map of CPU Accessible I/O Registers 4.3 Register Bit Definitions 4.4 Type-of-Service (TOS) Priority Control Registers 4.5 Indirect Access Data Registers 4.6 Power Management Control and Wake-Up Event Status 4.7 Go Sleep Time and Clock Tree Power-Down Control Registers 4.8 PHY and MII Basic Control Registers 4.9 Port 1 Control Registers 4.10 Port 2 Control Registers 4.11 Port 3 Control Registers 4.12 Switch Global Control Registers 4.13 Source Address Filtering Registers 4.14 TXQ Rate Control Registers 4.15 Auto-Negotiation Next Page Registers 4.16 EEE and Link Partner Advertisement Registers 4.17 Internal I/O Register Space Mapping for Interrupts, BIU, and Global Reset (0x100 - 0x1FF) 4.18 Host MAC Address Registers: MARL, MARM, and MARH 4.19 Internal I/O Register Space Mapping for the Queue Management Unit (QMU) (0x170 - 0x1FF) 4.20 Internal I/O Register Space Mapping for Interrupt Registers (0x190 - 0x193) 4.21 Internal I/O Register Space Mapping for the Queue Management Unit (QMU) (0x19C - 0x1B9) 4.22 Management Information Base (MIB) Counters 4.23 Static MAC Address Table 4.24 Dynamic MAC Address Table 4.25 VLAN Table 5.0 Operational Characteristics 5.1 Absolute Maximum Ratings* 5.2 Operating Ratings** 6.0 Electrical Characteristics 7.0 Timing Specifications 7.1 Host Interface Read / Write Timing 7.2 Auto-Negotiation Timing 7.3 Serial EEPROM Interface Timing 7.4 Reset Timing and Power Sequencing 7.5 Reset Circuit Guidelines 7.6 Reference Circuits – LED Strap-In Pins 7.7 Reference Clock – Connection and Selection 8.0 Selection of Isolation Transformers 9.0 Package Outline Appendix A: Data Sheet Revision History The Microchip Web Site Customer Change Notification Service Customer Support Product Identification System Worldwide Sales and Service
