Nexperia. BC817DPN. NPN/PNP general purpose transistor. 10. Characteristics Table 7. Characteristics. Symbol. Parameter. Conditions
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3

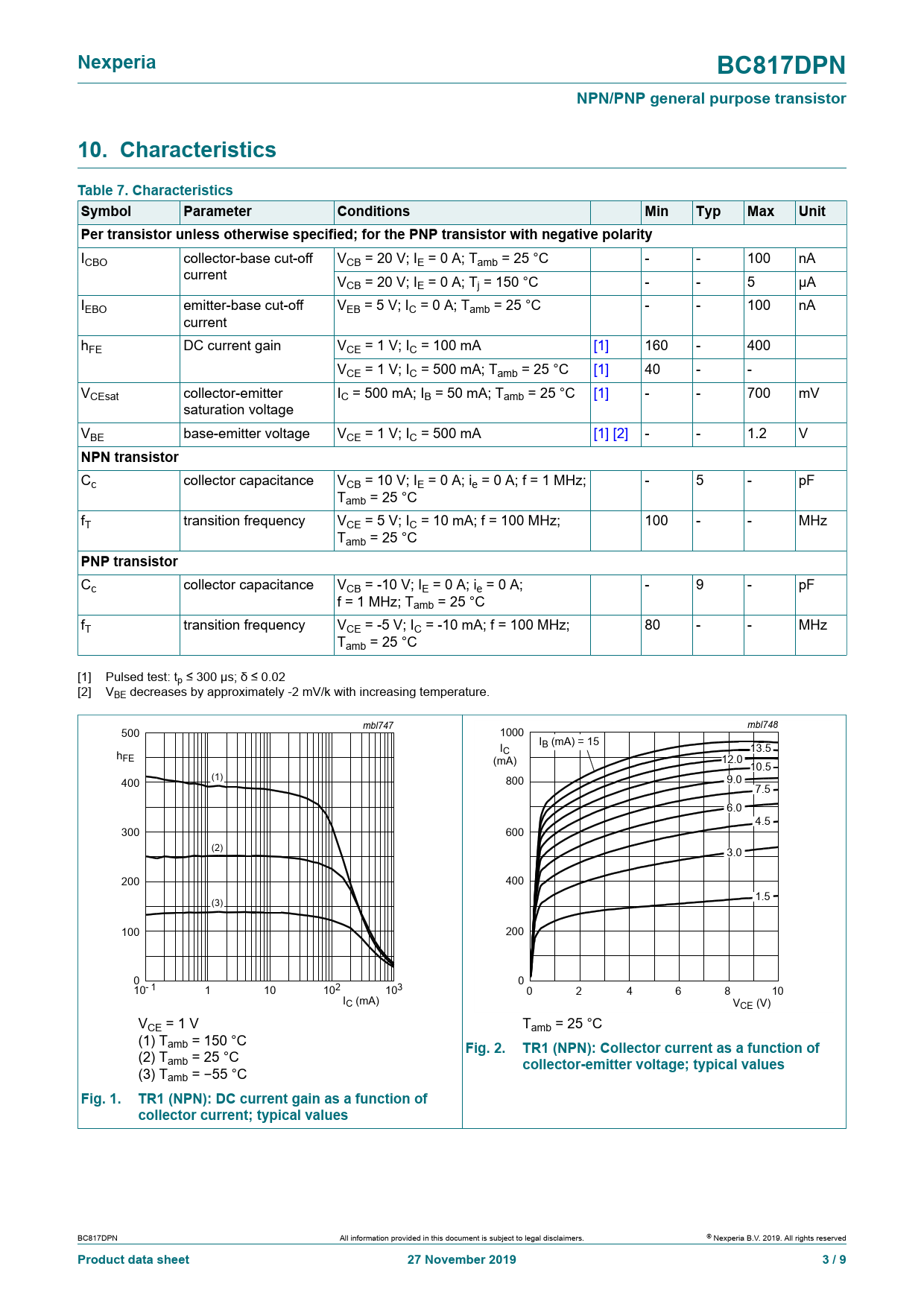

Nexperia BC817DPN NPN/PNP general purpose transistor 10. Characteristics Table 7. Characteristics Symbol Parameter Conditions Min Typ Max Unit Per transistor unless otherwise specified; for the PNP transistor with negative polarity
ICBO col ector-base cut-of VCB = 20 V; IE = 0 A; Tamb = 25 °C - - 100 nA current VCB = 20 V; IE = 0 A; Tj = 150 °C - - 5 µA IEBO emitter-base cut-of VEB = 5 V; IC = 0 A; Tamb = 25 °C - - 100 nA current hFE DC current gain VCE = 1 V; IC = 100 mA [1] 160 - 400 VCE = 1 V; IC = 500 mA; Tamb = 25 °C [1] 40 - - VCEsat collector-emitter IC = 500 mA; IB = 50 mA; Tamb = 25 °C [1] - - 700 mV saturation voltage VBE base-emitter voltage VCE = 1 V; IC = 500 mA [1] [2] - - 1.2 V
NPN transistor
Cc collector capacitance VCB = 10 V; IE = 0 A; ie = 0 A; f = 1 MHz; - 5 - pF Tamb = 25 °C fT transition frequency VCE = 5 V; IC = 10 mA; f = 100 MHz; 100 - - MHz Tamb = 25 °C
PNP transistor
Cc collector capacitance VCB = -10 V; IE = 0 A; ie = 0 A; - 9 - pF f = 1 MHz; Tamb = 25 °C fT transition frequency VCE = -5 V; IC = -10 mA; f = 100 MHz; 80 - - MHz Tamb = 25 °C [1] Pulsed test: tp ≤ 300 μs; δ ≤ 0.02 [2] VBE decreases by approximately -2 mV/k with increasing temperature. mbl747 mbl748 500 1000 I IB (mA) = 15 h C 13.5 FE (mA) 12.0 10.5 400 (1) 800 9.0 7.5 6.0 4.5 300 600 (2) 3.0 200 400 1.5 (3) 100 200 0 0 10- 1 1 10 102 103 0 2 4 6 8 10 IC (mA) VCE (V) VCE = 1 V Tamb = 25 °C (1) Tamb = 150 °C (2) T
Fig. 2. TR1 (NPN): Collector current as a function of
amb = 25 °C (3) T
collector-emitter voltage; typical values
amb = −55 °C
Fig. 1. TR1 (NPN): DC current gain as a function of collector current; typical values
BC817DPN All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2019. Al rights reserved
Product data sheet 27 November 2019 3 / 9
