- 103 mhc326 - 1200 mhc327 VBE VCEsat (mV) (mV) - 1000 - 102 - 800 (1) (1) (2) (2) - 600 - 10 (3) - 400 (3) - 1 - 200 - 10- 1 - 1 - 10 - 102 - 103 - 10- 1 - 1 - 10 - 102 - 103 IC (mA) IC (mA) IC/IB = 10 VCE = -1 V (1) Tamb = 150°C (1) Tamb = −55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = -55 °C (3) Tamb = 150 °C

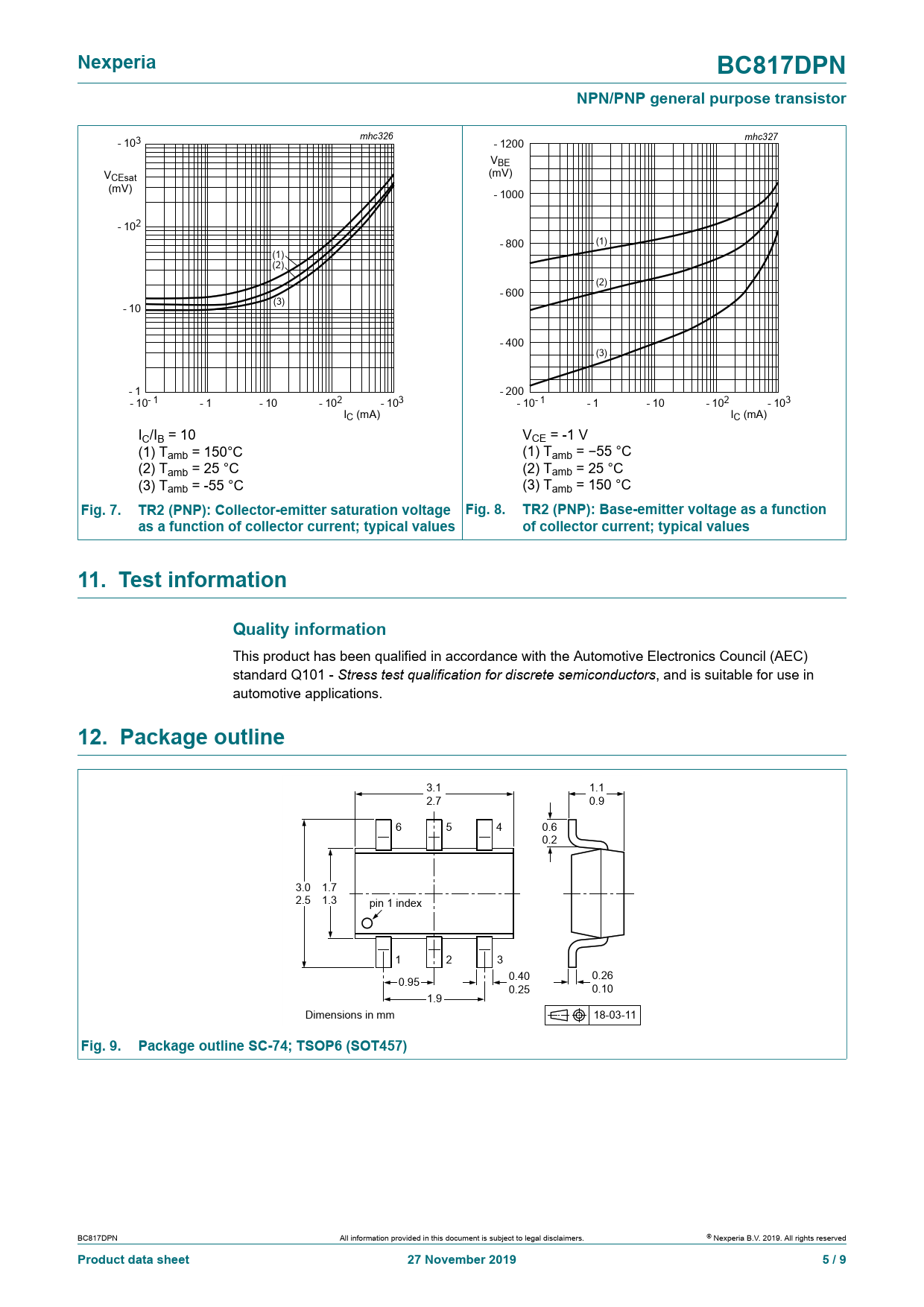

Fig. 7. TR2 (PNP): Collector-emitter saturation voltage Fig. 8. TR2 (PNP): Base-emitter voltage as a function as a function of collector current; typical values of collector current; typical values 11. Test information Quality information
This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications.
12. Package outline
3.1 1.1 2.7 0.9 6 5 4 0.6 0.2 3.0 1.7 2.5 1.3 pin 1 index 1 2 3 0.40 0.26 0.95 0.25 0.10 1.9 Dimensions in mm 18-03-11
Fig. 9. Package outline SC-74; TSOP6 (SOT457)
