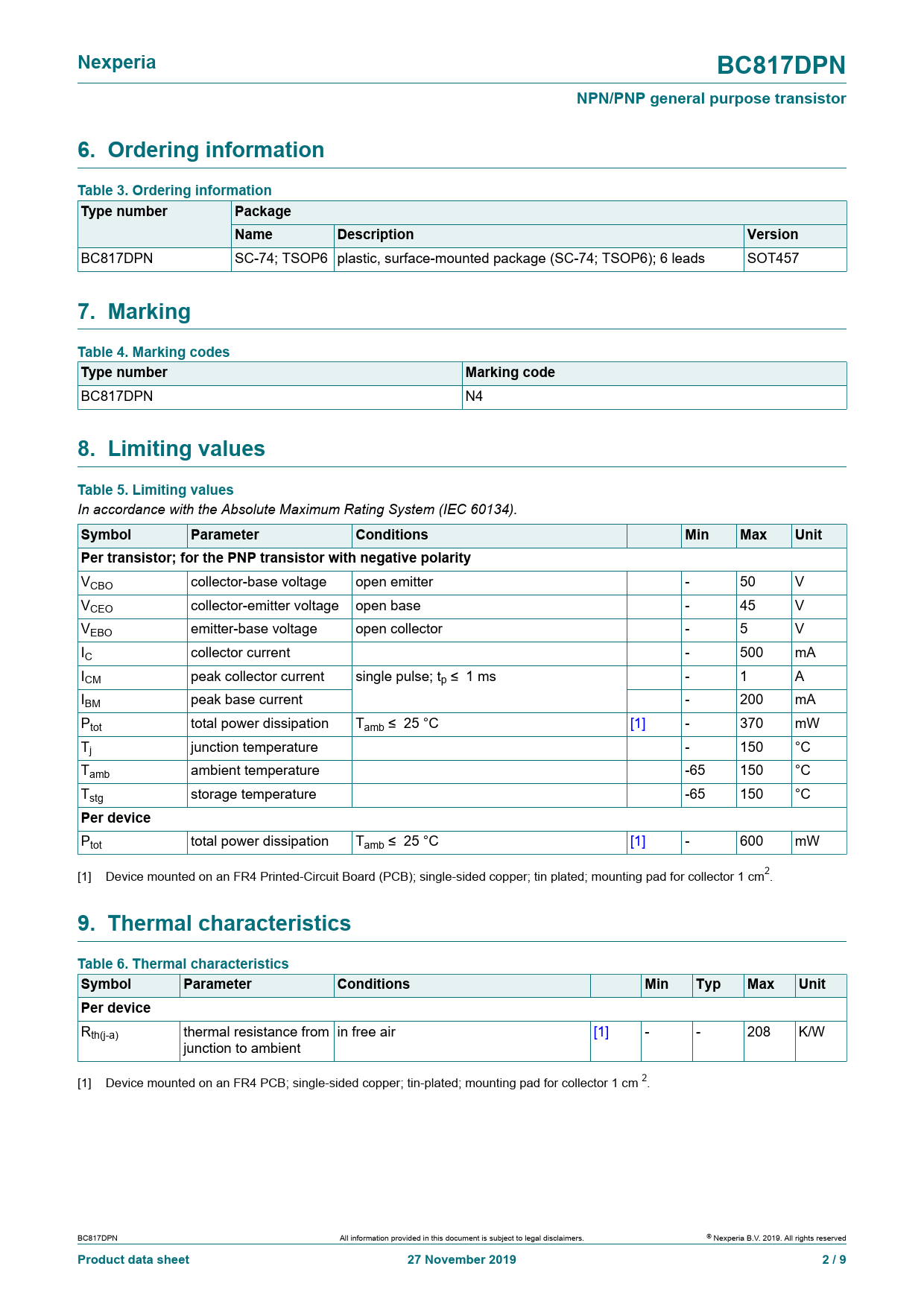

Nexperia BC817DPN NPN/PNP general purpose transistor 6. Ordering information Table 3. Ordering information Type number Package Name Description Version
BC817DPN SC-74; TSOP6 plastic, surface-mounted package (SC-74; TSOP6); 6 leads SOT457
7. Marking Table 4. Marking codes Type number Marking code
BC817DPN N4
8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit Per transistor; for the PNP transistor with negative polarity
VCBO collector-base voltage open emitter - 50 V VCEO collector-emitter voltage open base - 45 V VEBO emitter-base voltage open collector - 5 V IC collector current - 500 mA ICM peak collector current single pulse; tp ≤ 1 ms - 1 A IBM peak base current - 200 mA Ptot total power dissipation Tamb ≤ 25 °C [1] - 370 mW Tj junction temperature - 150 °C Tamb ambient temperature -65 150 °C Tstg storage temperature -65 150 °C
Per device
Ptot total power dissipation Tamb ≤ 25 °C [1] - 600 mW [1] Device mounted on an FR4 Printed-Circuit Board (PCB); single-sided copper; tin plated; mounting pad for collector 1 cm2.
9. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit Per device
Rth(j-a) thermal resistance from in free air [1] - - 208 K/W junction to ambient [1] Device mounted on an FR4 PCB; single-sided copper; tin-plated; mounting pad for collector 1 cm 2. BC817DPN All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2019. Al rights reserved
Product data sheet 27 November 2019 2 / 9
