| Descripción | CMOS Linear Integrated Circuit Silicon Monolithic. 18 V, 5A eFuse IC with Adjustable Over Current Protection and Reverse Blocking FET Control |
| Páginas / Página | 22 / 5 — TCKE805 Series. PIN Description. PIN Name. Description. Operation Logic … |
| Formato / tamaño de archivo | PDF / 996 Kb |
| Idioma del documento | Inglés |

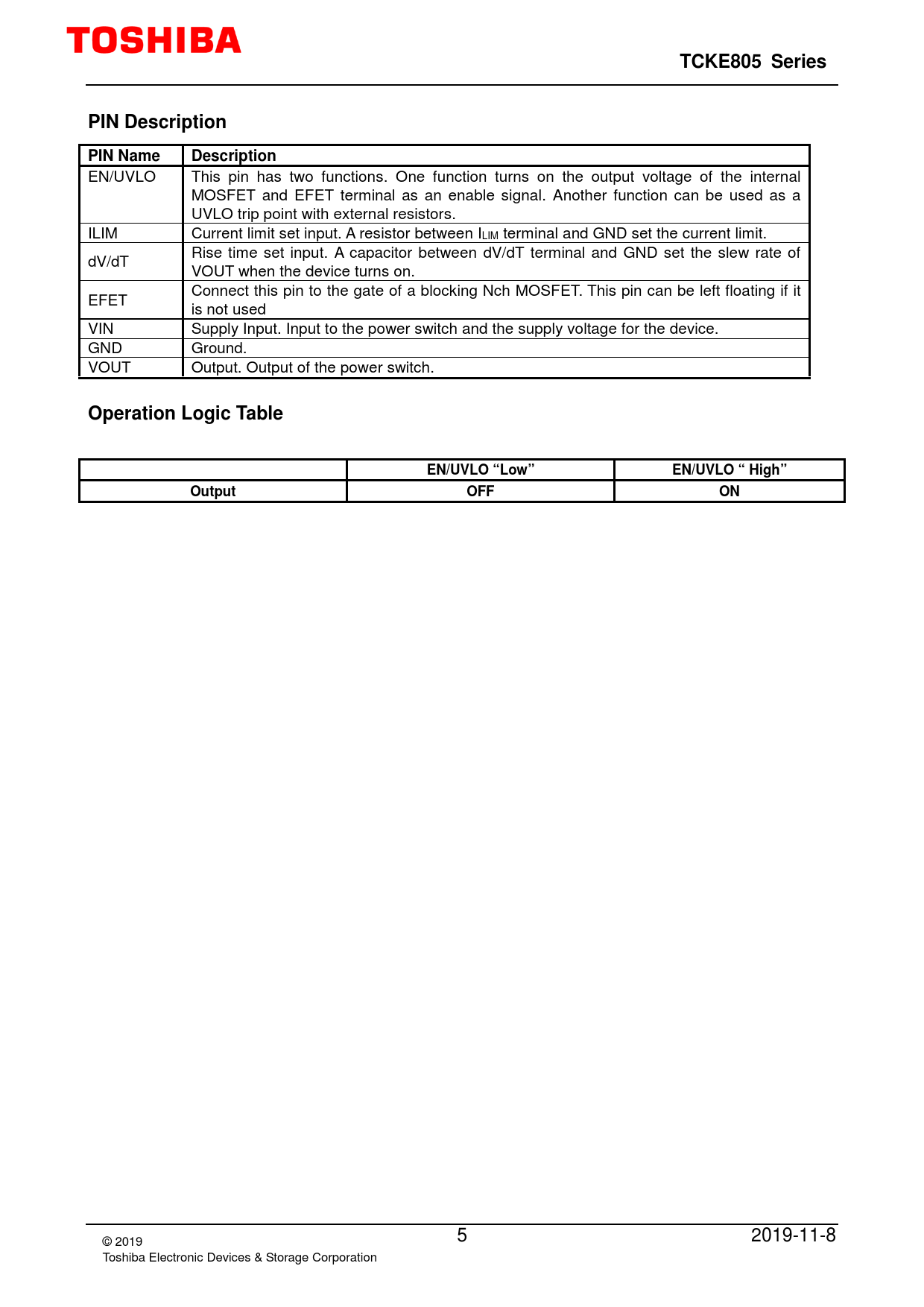

TCKE805 Series. PIN Description. PIN Name. Description. Operation Logic Table. EN/UVLO “Low”. EN/UVLO “ High”. Output. OFF
Línea de modelo para esta hoja de datos
TCKE805NA
TCKE805NL
Versión de texto del documento
TCKE805 Series PIN Description PIN Name Description
EN/UVLO This pin has two functions. One function turns on the output voltage of the internal MOSFET and EFET terminal as an enable signal. Another function can be used as a UVLO trip point with external resistors. ILIM Current limit set input. A resistor between ILIM terminal and GND set the current limit. Rise time set input. A capacitor between dV/dT terminal and GND set the slew rate of dV/dT VOUT when the device turns on. Connect this pin to the gate of a blocking Nch MOSFET. This pin can be left floating if it EFET is not used VIN Supply Input. Input to the power switch and the supply voltage for the device. GND Ground. VOUT Output. Output of the power switch.
Operation Logic Table EN/UVLO “Low” EN/UVLO “ High” Output OFF ON
