Datasheet TCKE805 (Toshiba) - 4
| Fabricante | Toshiba |
| Descripción | CMOS Linear Integrated Circuit Silicon Monolithic. 18 V, 5A eFuse IC with Adjustable Over Current Protection and Reverse Blocking FET Control |
| Páginas / Página | 22 / 4 — TCKE805 Series. Block Diagram |
| Formato / tamaño de archivo | PDF / 996 Kb |
| Idioma del documento | Inglés |

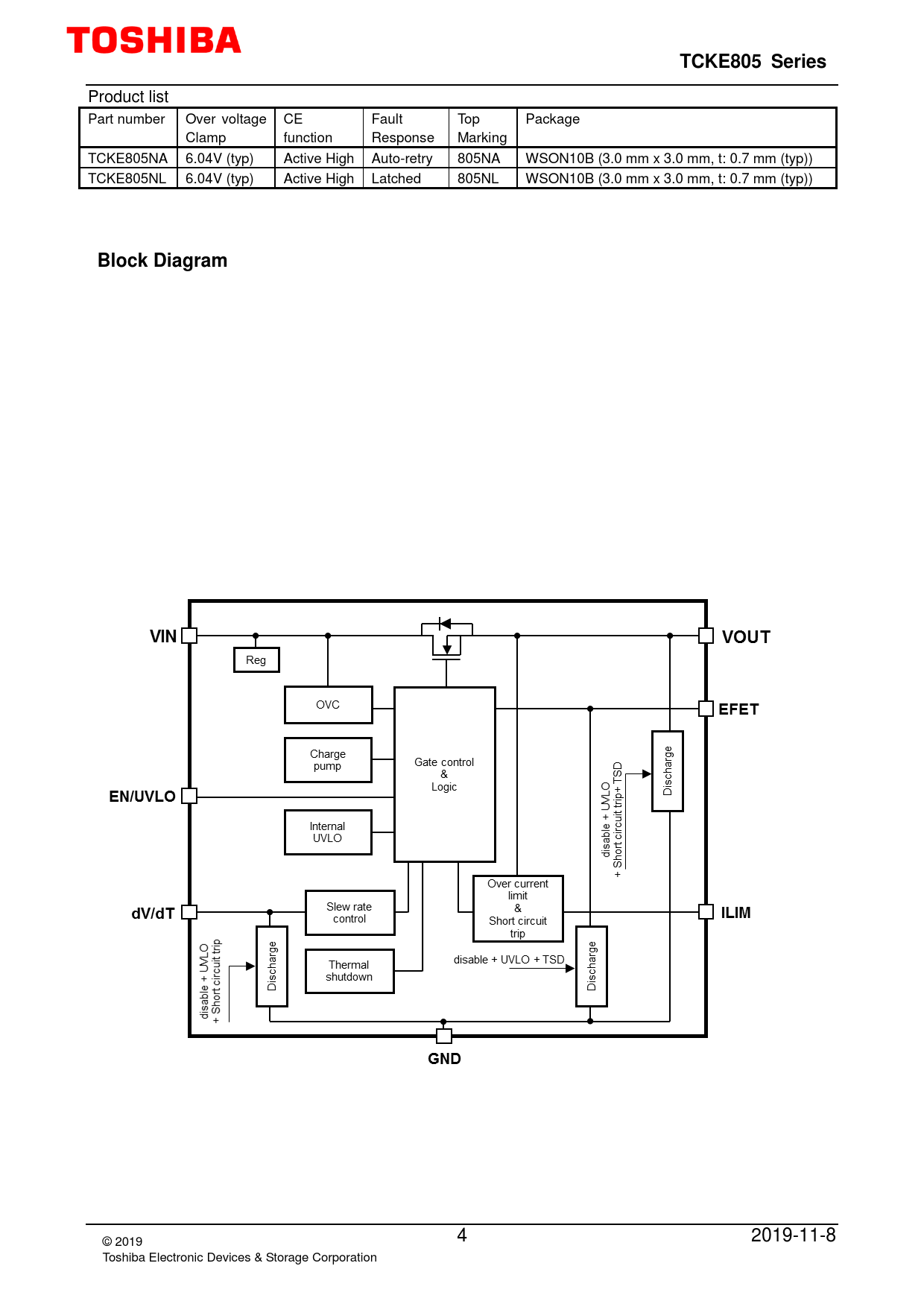

TCKE805 Series. Block Diagram
Línea de modelo para esta hoja de datos
TCKE805NA
TCKE805NL
Versión de texto del documento
TCKE805 Series
Product list Part number Over voltage CE Fault Top Package Clamp function Response Marking TCKE805NA 6.04V (typ) Active High Auto-retry 805NA WSON10B (3.0 mm x 3.0 mm, t: 0.7 mm (typ)) TCKE805NL 6.04V (typ) Active High Latched 805NL WSON10B (3.0 mm x 3.0 mm, t: 0.7 mm (typ))
Block Diagram
4 2019-11-8 © 2019 Toshiba Electronic Devices & Storage Corporation
Product list Part number Over voltage CE Fault Top Package Clamp function Response Marking TCKE805NA 6.04V (typ) Active High Auto-retry 805NA WSON10B (3.0 mm x 3.0 mm, t: 0.7 mm (typ)) TCKE805NL 6.04V (typ) Active High Latched 805NL WSON10B (3.0 mm x 3.0 mm, t: 0.7 mm (typ))
Block Diagram
4 2019-11-8 © 2019 Toshiba Electronic Devices & Storage Corporation
